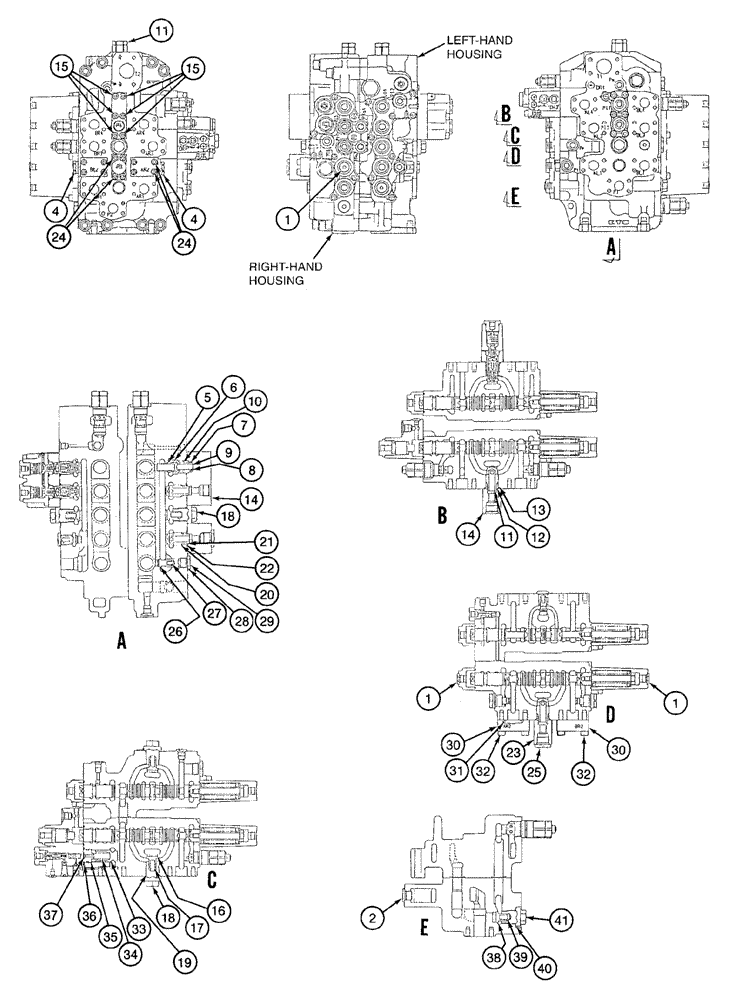

Запчасти Case 9050B (8-132) - CONTROL VALVE, MISCELLANEOUS VALVES AND COMPONENTS, RIGHT-HAND HOUSING (08) - HYDRAULICS

162978A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 41

1шт.

1

163369A1

PLUG

- port

3шт.

2

163370A1

PLUG

- port

1шт.

3

163371A1

VALVE

ASSEMBLY - relief Component parts not serviced separately

1шт.

4

155438A1

PLUG

port

2шт.

5

163387A1

VALVE POPPET

1шт.

6

160237A1

SPRING

compression

1шт.

7

163386A1

SLEEVE

valve

1шт.

8

160187A1

VALVE POPPET

VALVE - poppet

1шт.

9

160242A1

SPRING

compression

1шт.

10

154529A1

O-RING

valve

1шт.

11

160186A1

WELL

VAVLE - poppet

1шт.

12

160241A1

SPRING

compression

1шт.

13

154529A1

O-RING

valve

1шт.

14

163384A1

FLANGE

HOUSING - valve

1шт.

15

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

SCREW, hex socket 10 - 1.5 x 60 mm, class 12.9

6шт.

16

160189A1

WELL

VALVE - poppet

1шт.

17

160243A1

SPRING

compression

1шт.

18

160064A1

PLUG

valve

1шт.

19

155224A1

O-RING

plug

1шт.

20

160186A1

WELL

VALVE - poppet

1шт.

21

160241A1

SPRING

compression

1шт.

22

154529A1

O-RING

valve

1шт.

23

163385A1

FLANGE

HOUSING - valve

1шт.

24

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

SCREW, hex socket 10 - 1.5 x 60 mm, class 12.9

4шт.

25

155449A1

PLUG

special

1шт.

26

155931A1

VALVE POPPET

1шт.

27

156026A1

SPRING

compression

1шт.

28

155222A1

O-RING

valve

1шт.

29

163365A1

PLUG

port

1шт.

30

156278A1

COVER

PLATE - auxiliary port cover

2шт.

31

155211A1

O-RING

plate

2шт.

32

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

8шт.

33

163390A1

VALVE POPPET

1шт.

34

163394A1

SPRING

compression

1шт.

35

163374A1

SPACER

special cover

1шт.

36

154549A1

O-RING

cover

1шт.

37

154471A1

O-RING

cover

1шт.

38

160189A1

WELL

VALVE - poppet

1шт.

39

160243A1

SPRING

compression

1шт.

40

155224A1

O-RING

valve

1шт.

41

160064A1

PLUG

valve

1шт.
