(8-130) - CONTROL VALVE, WORKING CIRCUIT RELIEF VALVES

Запчасти Case 9050B (8-130) - CONTROL VALVE, WORKING CIRCUIT RELIEF VALVES (08) - HYDRAULICS

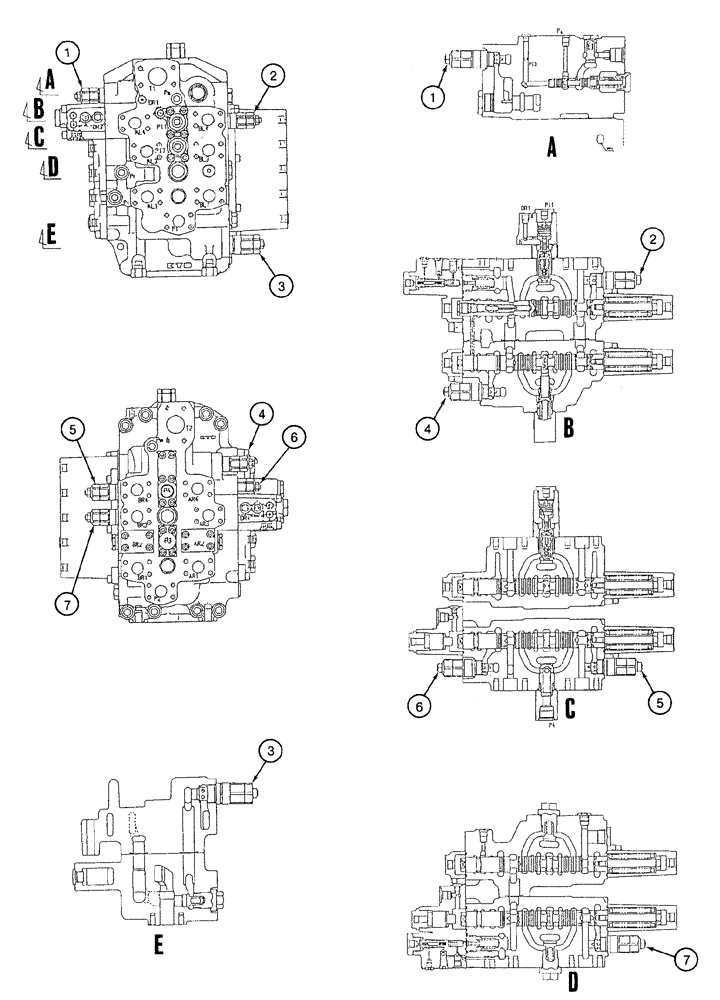

Схема запчастей Case 9050B - (8-130) - CONTROL VALVE, WORKING CIRCUIT RELIEF VALVES (08) - HYDRAULICS
5
7
6
6
5
3
2
1
3
4
4
7
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

162978A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 7

1шт.

1

163379A1

VALVE

ASSEMBLY - relief

1шт.

2

163379A1

VALVE

ASSEMBLY - relief

1шт.

3

163650A1

VALVE

ASSEMBLY - relief

1шт.

4

163379A1

VALVE

ASSEMBLY - relief, component parts not seviced separately

1шт.

5

163379A1

VALVE

ASSEMBLY - relief

1шт.

6

163379A1

VALVE

ASSEMBLY - relief

1шт.

7

163380A1

VALVE

ASSEMBLY - relief, component parts not seviced separately

1шт.
