(8-128) - CONTROL VALVE, MAIN PILOT VALVES

Запчасти Case 9050B (8-128) - CONTROL VALVE, MAIN PILOT VALVES (08) - HYDRAULICS

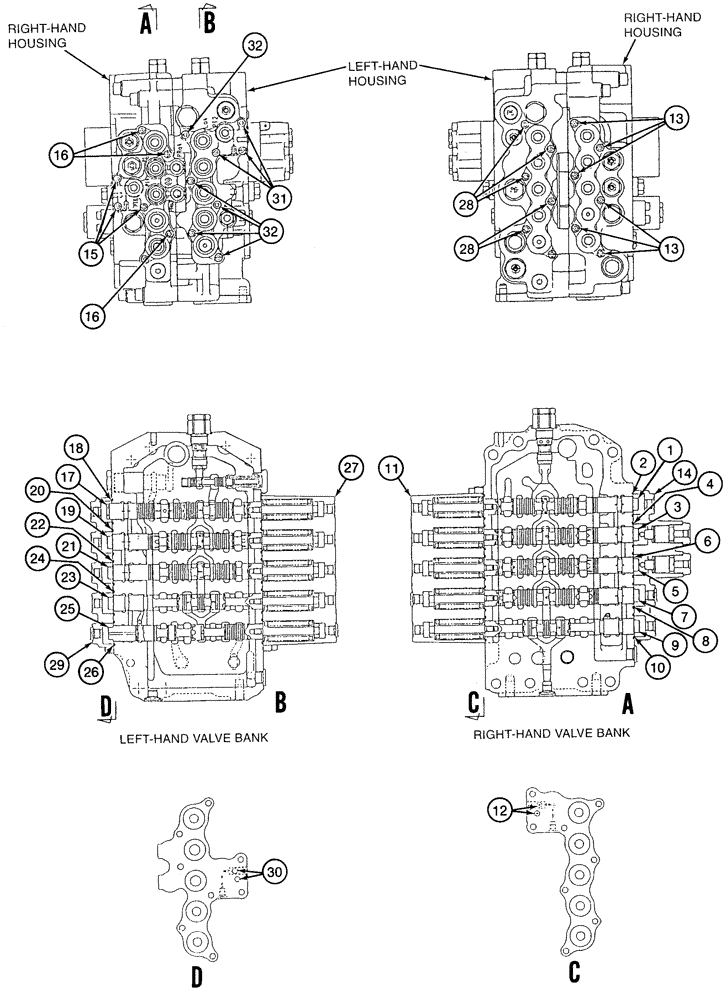

Схема запчастей Case 9050B - (8-128) - CONTROL VALVE, MAIN PILOT VALVES (08) - HYDRAULICS
31
32
28
7
22
27
21
20
10
19
16
17
29
13
11
2
23
15
25
26
14
13
1
6
4
32
3
16
5
18
12
24
28
30
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

162978A1

VALVE

ASSEMBLY - control continued, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (arm-in/arm out functions) component parts not serviced serparately

1шт.

2

154569A1

O-RING

plunger assembly

2шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (swing-left/swing right functions) component parts not serviced serparately

1шт.

4

154569A1

O-RING

plunger assembly

2шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (boom-up/boom-down functions) component parts not serviced serparately

1шт.

6

154569A1

O-RING

plunger assembly

2шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (left track travel functions) component parts not serviced serparately

1шт.

8

154569A1

O-RING

plunger assembly

2шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (internal flow control funtions) component parts not serviced separately

1шт.

10

154569A1

O-RING

plunger assembly

2шт.

11

163392A1

HYD VALVE SECTION

COVER - valve, multiple right-hand bank

1шт.

12

154447A1

O-RING

plunger assembly

2шт.

13

863-10028

BOLT - hex socket 10 x 1.5 x 28 mm, class 12.9

6шт.

14

163373A1

CAP

COVER - valve multiple right-hand bank

1шт.

15

863-10100

BOLT - hex socket 10 - 1.5 x 100 mm, class 12.9

3шт.

16

863-10028

BOLT - hex socket 10 x 1.5 x 28 mm, class 12.9

3шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve (arm-in/arm-out functions) component parts not serviced separately

1шт.

18

154569A1

O-RING

plunger assembly

2шт.

19

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve (bucket-open/bucket-close functions) component parts not serviced separately

1шт.

20

154569A1

O-RING

plunger assembly

2шт.

21

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (boom-up/boom-down functions) component parts not serviced serparately

1шт.

22

154569A1

O-RING

plunger assembly

2шт.

23

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (auxiliary option functions) component parts not serviced serparately

1шт.

24

154569A1

O-RING

plunger assembly

2шт.

25

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - valve, (right track travel functions) component parts not serviced serparately

1шт.

26

154569A1

O-RING

plunger assembly

2шт.

27

163392A1

HYD VALVE SECTION

COVER - valve, multiple left-hand bank

7шт.

28

863-10028

BOLT - hex socket 10 x 1.5 x 28 mm, class 12.9

1шт.

29

163372A1

HYD VALVE SECTION

COVER - valve, multiple left-hand bank

1шт.

30

154447A1

O-RING

cover

2шт.

31

863-10100

BOLT - hex socket 10 - 1.5 x 100 mm, class 12.9

3шт.

32

863-10028

BOLT - hex socket 10 x 1.5 x 28 mm, class 12.9

5шт.
