(8-126) - CONTROL VALVE, HOUSINGS AND MISCELLANEOUS COMPONENTS

Запчасти Case 9050B (8-126) - CONTROL VALVE, HOUSINGS AND MISCELLANEOUS COMPONENTS (08) - HYDRAULICS

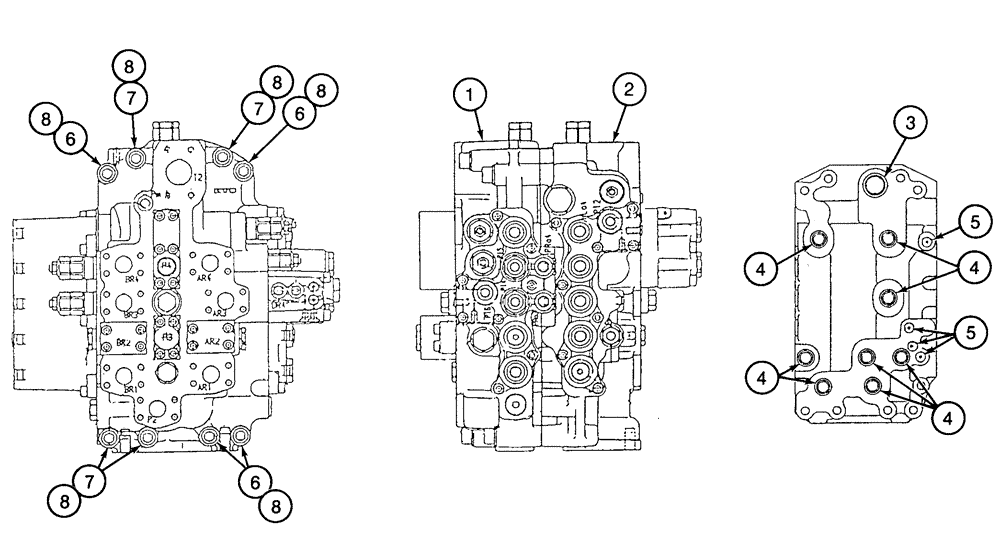

Схема запчастей Case 9050B - (8-126) - CONTROL VALVE, HOUSINGS AND MISCELLANEOUS COMPONENTS (08) - HYDRAULICS
8
7
6
7
4
8
4
4
6
3
4
8
8
7
8
1
5
6
8
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

162978A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve, left-hand

1шт.

3

154569A1

O-RING

housing

1шт.

4

159972A1

O-RING

housing

8шт.

5

154475A1

O-RING

housing

4шт.

6

863-16100

BOLT - hex socket 16 - 2.0 x 100 mm, class 12.9

4шт.

7

863-16130

BOLT - hex socket 16 - 2.0 x 130 mm, class 12.9

4шт.

8

156170A1

WASHER

special

8шт.
