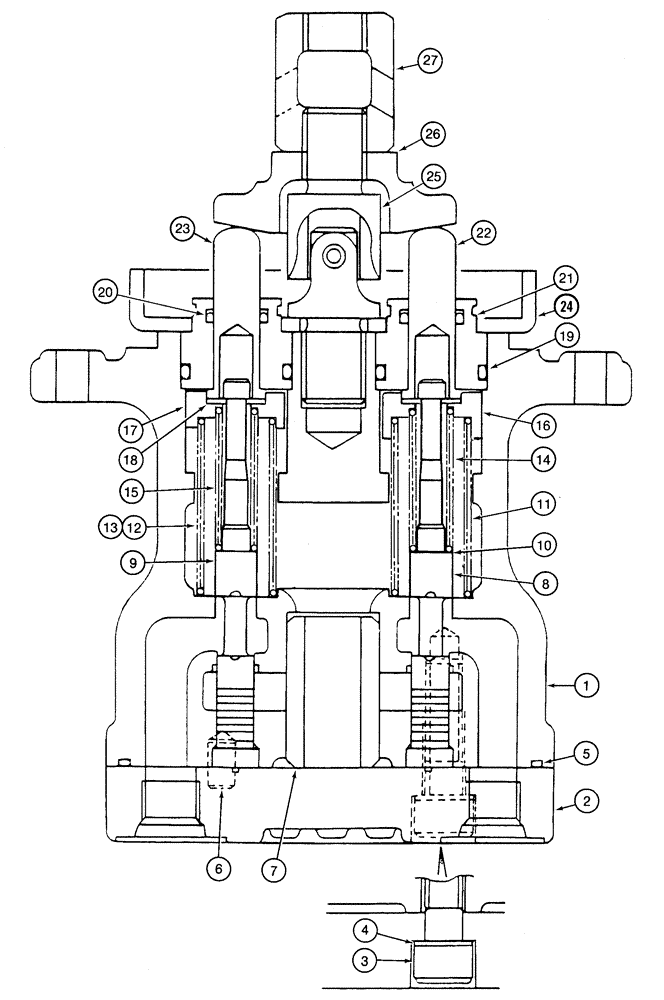

Запчасти Case 9050B (8-120) - MANUALLY OPERATED CONTROL VALVE (08) - HYDRAULICS

162097A1

VALVE

ASSEMBLY - remote control, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

160310A1

COVER

PLATE - port

1шт.

3

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 30 mm, class 12.9

2шт.

4

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

Part of Seal Kit P/N 160218A1

1шт.

5

155167A1

O-RING

seal

1шт.

Part of Seal Kit P/N 160218A1

1шт.

6

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

1шт.

7

160036A1

BUSHING

- valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

10

160285A1

WASHER

flat, special

4шт.

11

160252A1

SPRING

valve outer

1шт.

12

160253A1

SPRING

valve outer (ports 2 and 4)

2шт.

13

160251A1

SPRING

valve outer (port 1)

1шт.

14

160953A1

SPRING

valve spool, inner (ports 1 and 3)

2шт.

15

160954A1

SPRING

valve spool, inner (ports 2 and 4)

2шт.

16

160234A1

SPRING SEAT

spring (ports 1 and 3)

2шт.

17

160233A1

SPRING SEAT

spring (ports 2 and 4)

2шт.

18

LA00056

WASHER

flat, special; Replaces 160286A1

8шт.

19

154491A1

O-RING

push rod guide, outer

4шт.

Part of Seal Kit P/N 160218A1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - push rod4

1шт.

Part of Seal Kit P/N 160218A1

1шт.

21

160070A1

PLUG

GUIDE - push rod

4шт.

22

160026A1

THREADED ROD

ROD - push (ports 1 and 3)

2шт.

23

160027A1

THREADED ROD

ROD - push (ports 1 and 3)

2шт.

24

160309A1

RETAINER

PLATE - push rod retaining

1шт.

25

155255A1

FLEXIBLE JOINT

PIVOT - remote control valve

1шт.

26

155577A1

PIVOTING ARM

ROCKER - remote control valve

1шт.

27

156165A1

NUT

hex

1шт.

160218A1

SEAL KIT

seal contains parts identified by Ref. 4, 5, 19, and 20, in quantities shown.

1шт.

When any one of the seal kit components must be replaced, it is recommended that all kit components be replaced.

1шт.
