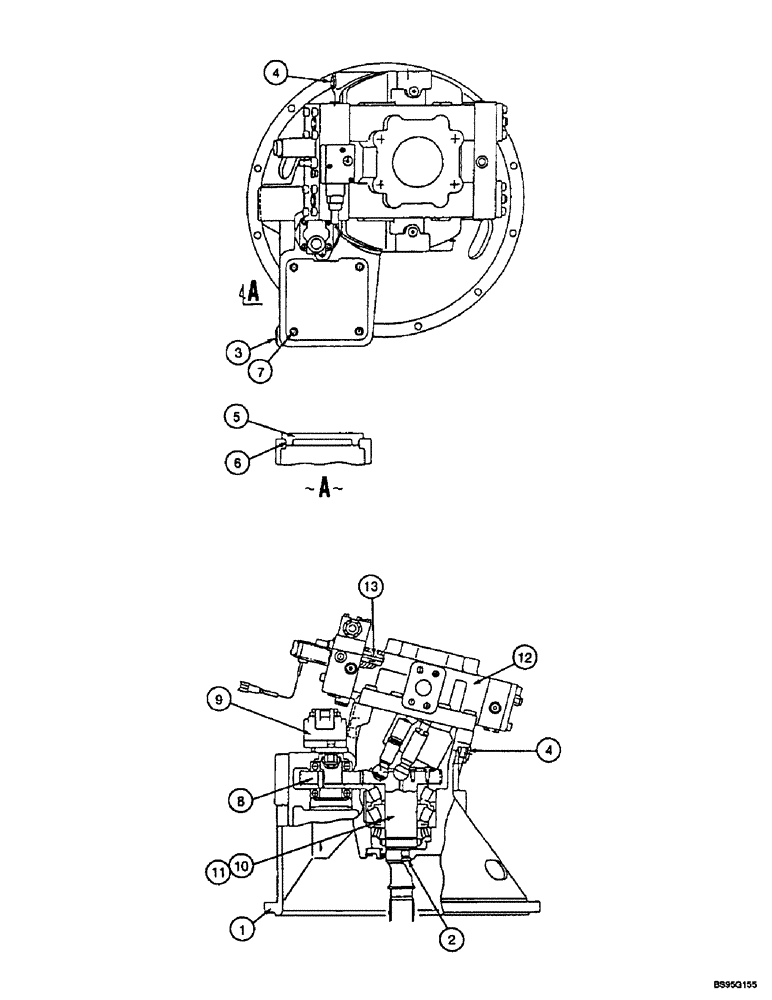

Запчасти Case 9050B (8-118) - HYDRAULIC PUMP (08) - HYDRAULICS

162099A1

PUMP, HYDRAULIC

Includes All Parts on Figures 08-118 - 08-119F

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG

2шт.

5

NSS

NOT SOLD SEPARAT

SHEET cover

1шт.

6

161060A1

O-RING

Replaces 155186A1

1шт.

7

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

4шт.

8

NSS

NOT SOLD SEPARAT

See Figure 08-119B

1шт.

9

155834A1

PUMP, HYDRAULIC

See Figure 08-119B

1шт.

10

163573A1

ROTOR ASSY.

See Figure 08-119

1шт.

11

163571A1

ROTOR ASSY.

See Figure 08-119A

1шт.

12

NSS

NOT SOLD SEPARAT

See Figure 08-119C

1шт.

13

163569A1

SPRING

See Figure 08-119D

1шт.
