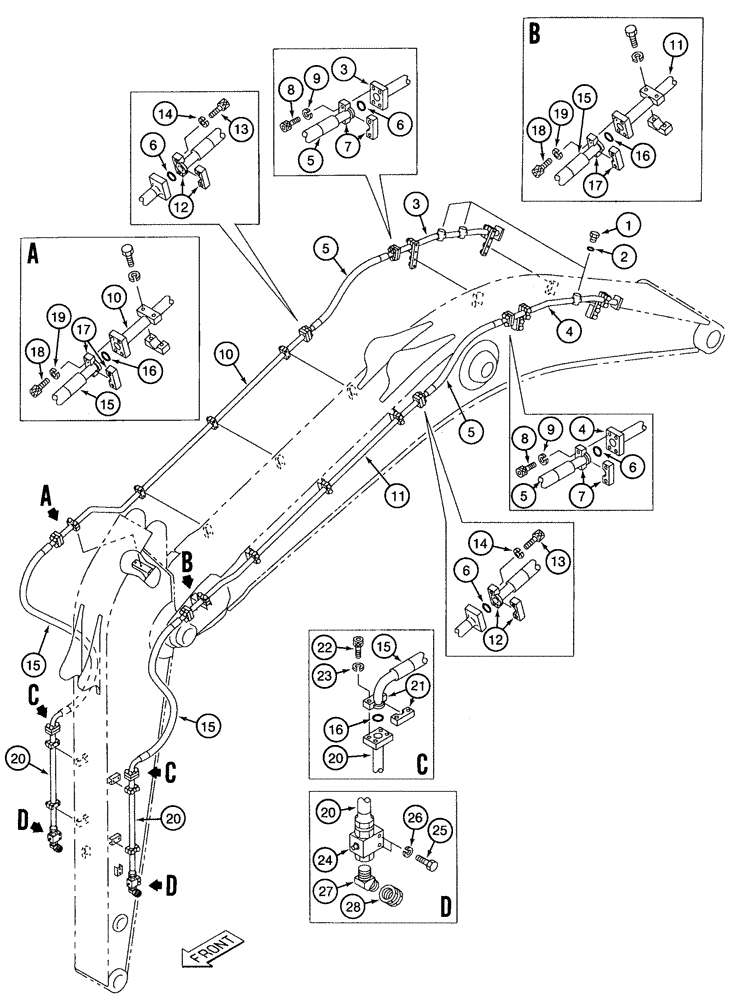

Запчасти Case 9050B (8-116) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY AND CYLINDER LINES, 3.23 METER ARM (08) - HYDRAULICS

1

152924A1

PLUG

port, Includes: Ref. 2

3шт.

2

154503A1

O-RING

plug

1шт.

3

162608A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

lower boom, right-hand cylinder supply line

1шт.

4

162609A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

lower boom, left-hand cylinder supply line

1шт.

5

162610A1

HOSE ASSY.

51-3/16 inch (1300 mm) long boom (from lower boom tubes to upper boom tubes), Includes: Ref. 6

2шт.

6

164450A1

O-RING

hose; Replaces 153626A1

2шт.

7

150124A1

FLANGE

split

4шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

8шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, ; Replaces 150336A1 M14

8шт.

10

162606A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

upper boom, right-hand cylinder supply line

1шт.

11

162607A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

upper boom, left-hand cylinder supply line

1шт.

12

150124A1

FLANGE

split

4шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

8шт.

14

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, ; Replaces 150336A1 M14

8шт.

15

162611A1

HOSE ASSY.

83-1/2 inch (2120 mm) long boom-to-arm junction (upper boom tubes to arm tubes), Includes: Ref. 16

2шт.

16

164450A1

O-RING

hose; Replaces 153626A1

2шт.

17

150124A1

FLANGE

split

4шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

8шт.

19

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, ; Replaces 150336A1 M14

8шт.

20

162612A1

TUBE ASSY.

arm

2шт.

21

150124A1

FLANGE

split

4шт.

22

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

8шт.

23

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, ; Replaces 150336A1 M14

8шт.

24

KHV10700

VALVE SECTION

stop; Replaces 162628A1 & KHV10389

2шт.

25

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 12.9

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

27

162615A1

ADAPTER

ELBOW - 45 degree, special

2шт.

28

162627A1

PLUG

elbow

2шт.
