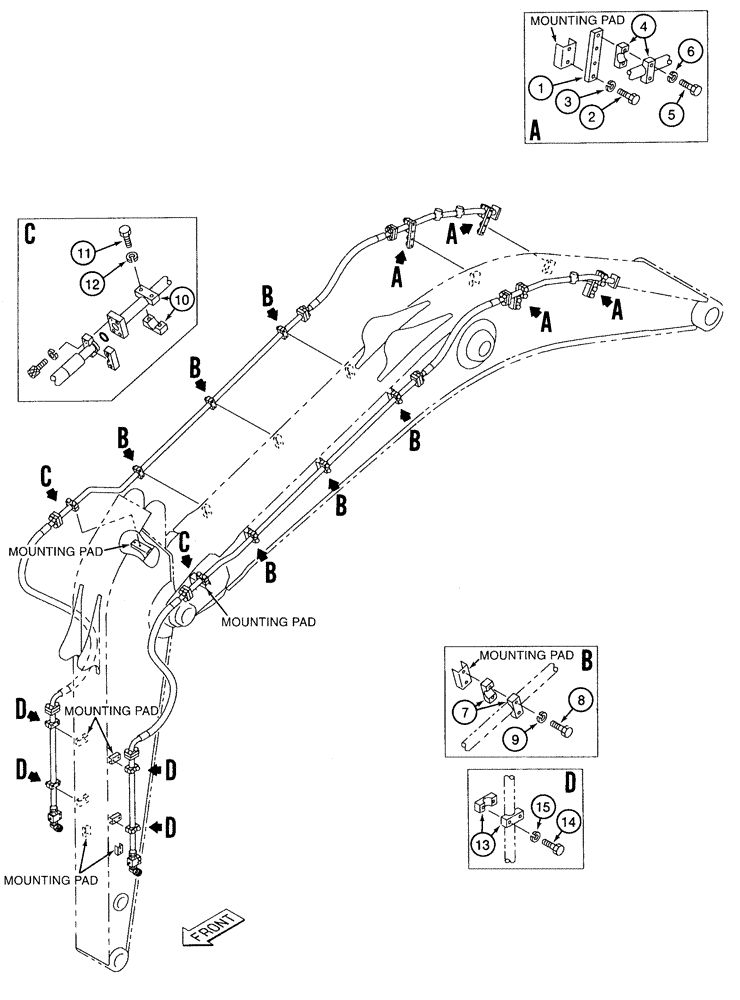

Запчасти Case 9050B (8-114) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY AND CYLINDER LINE MOUNTING, 3.23 METER ARM (08) - HYDRAULICS

1

162614A1

BAR

BRACKET - mounting

4шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

3

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

8шт.

4

162613A1

COLLAR

tube

8шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

6

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

8шт.

7

162613A1

COLLAR

tube

12шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

12шт.

10

162613A1

COLLAR

tube

4шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

12

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

4шт.

13

162613A1

COLLAR

tube

8шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

15

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

8шт.
