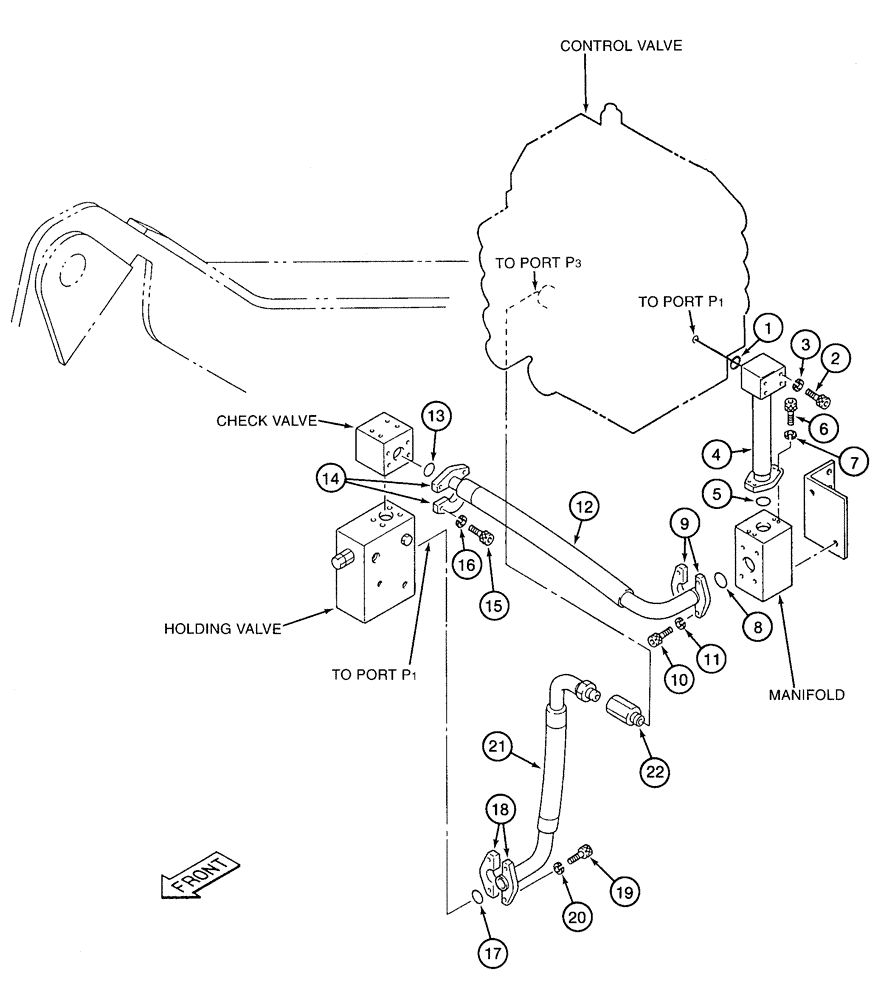

Запчасти Case 9050B (8-112) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, DUAL FLOW LINES (08) - HYDRAULICS

1

154548A1

O-RING

tube

1шт.

2

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

3

112309A1

LOCK WASHER

lock, special

4шт.

4

162685A1

TUBE ASSY.,26 mm ID, 34 mm OD

dual flow supply line (control valve port "P1" to manifold)

1шт.

5

154548A1

O-RING

tube

1шт.

6

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

hex socket 10 - 1.5 x 65 mm, class 12.9

4шт.

7

112309A1

LOCK WASHER

lock, special

4шт.

8

162246A1

O-RING

hose

1шт.

9

153459A1

FLANGE

split

2шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

11

112309A1

LOCK WASHER

lock, special

4шт.

12

162682A1

HYDRAULIC HOSE,25.40 mm ID x 500.00 mm

- Dual flow supply line (Manifold to check valve) 25.40 mm ID x 500.00 mm

1шт.

13

162246A1

O-RING

hose

1шт.

14

153459A1

FLANGE

split

2шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

16

112309A1

LOCK WASHER

lock, special

4шт.

17

162246A1

O-RING

hose

1шт.

18

153459A1

FLANGE

split

2шт.

19

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

20

112309A1

LOCK WASHER

lock, special

4шт.

21

162687A1

HYDRAULIC HOSE,25.40 mm ID x 410.00 mm

- Dual flow supply line (Control valve port "P3" to holding valve) 25.40 mm ID x 410.00 mm

1шт.

22

162686A1

STUD

ADAPTER - straight, special

1шт.
