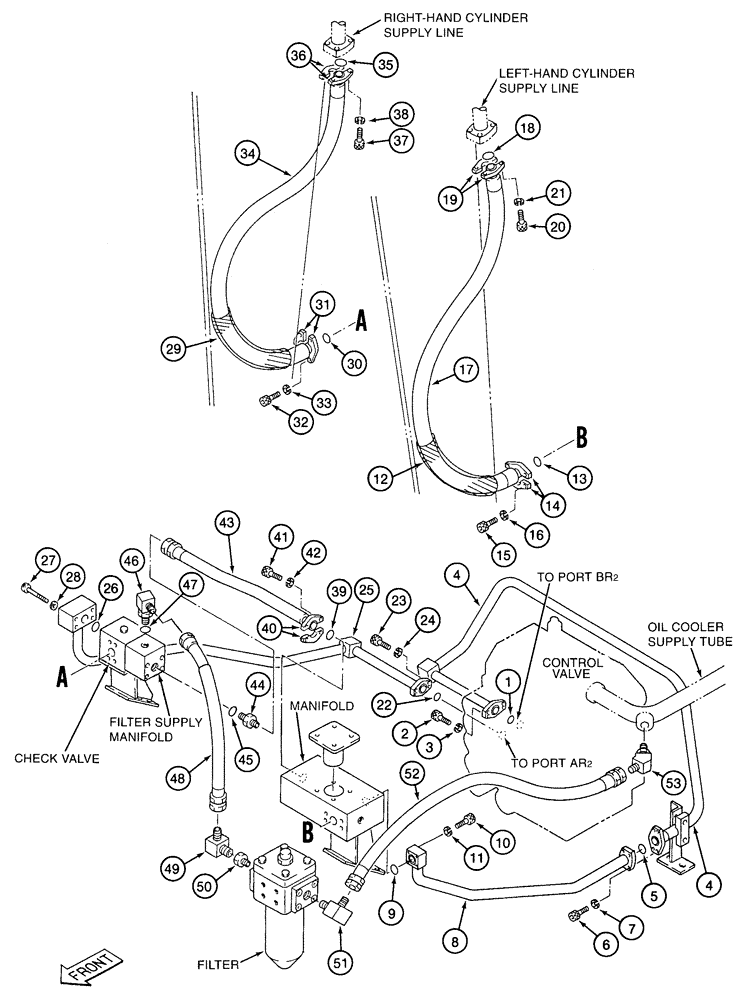

Запчасти Case 9050B (8-108) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, CYLINDER SUPPLY & RELIEF LINE, L.H. SUPPLY LINE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
154548A1
O-RING
tube
1шт.
2
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9
2шт.
3
112309A1
LOCK WASHER
lock, special
2шт.
4
162677A1
TUBE ASSY.,34.7 mm ID, 42.7 mm OD
left-hand supply line (control valve port "BR2" to manifold supply tube)
1шт.
5
153626A1
O-RING
tube
1шт.
6
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9
4шт.
7
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, M14
4шт.
8
163123A1
TUBE ASSY.,34.7 mm ID, 42.8 mm OD
manifold supply tube (left-hand supply line to manifold)
1шт.
9
153626A1
O-RING
tube
1шт.
10
862-14080
HEX SOC SCREW,M14 x 80mm, Cl 12.9
SCREW - hex socket 14 - 2.0 x 80 mm, class 12.9
4шт.
11
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, M14
4шт.
12
159498A1
GUARD
hose
1шт.
13
153626A1
O-RING
hose
1шт.
14
150124A1
FLANGE
split
2шт.
15
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9
4шт.
16
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, M14
4шт.
17
162675A1
HYDRAULIC HOSE,31.80 mm ID x 1600.00 mm
- LH supply line (Manifold to LH cylinder supply line) 31.80 mm ID x 1600.00 mm
1шт.
18
153626A1
O-RING
hose
1шт.
19
150124A1
FLANGE
split
2шт.
20
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9
4шт.
21
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, M14
4шт.
22
154548A1
O-RING
tube, right hand supply lines
1шт.
23
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Right hand supply lines
2шт.
24
112309A1
LOCK WASHER
lock, special, right hand supply lines
2шт.
25
163122A1
TUBE ASSY.,26 mm ID, 34 mm OD
right-hand supply line (control valve port "AR2" to check valve)
1шт.
26
153626A1
O-RING
tube, right hand supply lines
1шт.
27
862-14080
HEX SOC SCREW,M14 x 80mm, Cl 12.9
SCREW - hex socket 14 - 2.0 x 80 mm, class 12.9, right hand supply lines
4шт.
28
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, , RH supply lines M14
4шт.
29
159498A1
GUARD
hose, right hand supply lines
1шт.
30
153626A1
O-RING
hose, right hand supply lines
1шт.
31
150124A1
FLANGE
split, right hand supply lines
2шт.
32
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9, right hand supply lines
4шт.
33
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, , RH supply lines M14
4шт.
34
162675A1
HYDRAULIC HOSE,31.80 mm ID x 1600.00 mm
- RH supply line (Check valve to RH cylinder supply line), RH supply lines 31.80 mm ID x 1600.00 mm
1шт.
35
153626A1
O-RING
hose, right hand supply lines
1шт.
36
150124A1
FLANGE
split, right hand supply lines
2шт.
37
862-14050
HEX SOC SCREW,M14 x 50mm, Cl 12.9
BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9, right hand supply lines
4шт.
38
892-11014
LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk
WASHER, LOCK, , RH supply lines M14
4шт.
39
153626A1
O-RING
hose, relief lines
1шт.
40
157856A1
CLAMP BRACKET
FLANGE - split, relief lines
2шт.
41
862-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9, Relief lines
4шт.
42
112309A1
LOCK WASHER
lock, special, relief lines
4шт.
43
162664A1
HYDRAULIC HOSE,31.80 mm ID x 570.00 mm
- Crossover, LH circuit relief (From manifold to filter supply manifold), Lines 31.80 mm ID x 570.00 mm
1шт.
44
159047A1
ADAPTER
straight, special, relief lines, Includes: Ref. 45
1шт.
45
154559A1
O-RING
adapter, relief lines
1шт.
46
157582A1
ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"
90 degree, relief lines, Includes: Ref. 47
1шт.
47
154559A1
O-RING
elbow, relief lines
1шт.
48
163126A1
HYDRAULIC HOSE,31.80 mm ID x 600.00 mm
- Filter inlet relief line (From filter supply manifold to inlet port of filter) 31.80 mm ID x 600.00 mm
1шт.
49
162669A1
ELBOW
- 90 degree, relief lines
1шт.
50
163763A1
SOCKET
ADAPTER - straight, special, relief lines
1шт.
51
162669A1
ELBOW
- 90 degree, relief lines
1шт.
52
162673A1
HYDRAULIC HOSE,31.80 mm ID x 1000.00 mm
- Filter outlet relief line (From filter outlet port to oil cooler supply tube) 31.80 mm ID x 1000.00 mm
1шт.
53
157588A1
ELBOW
45 degree, relief lines
1шт.
Выбрано товаров: 53
