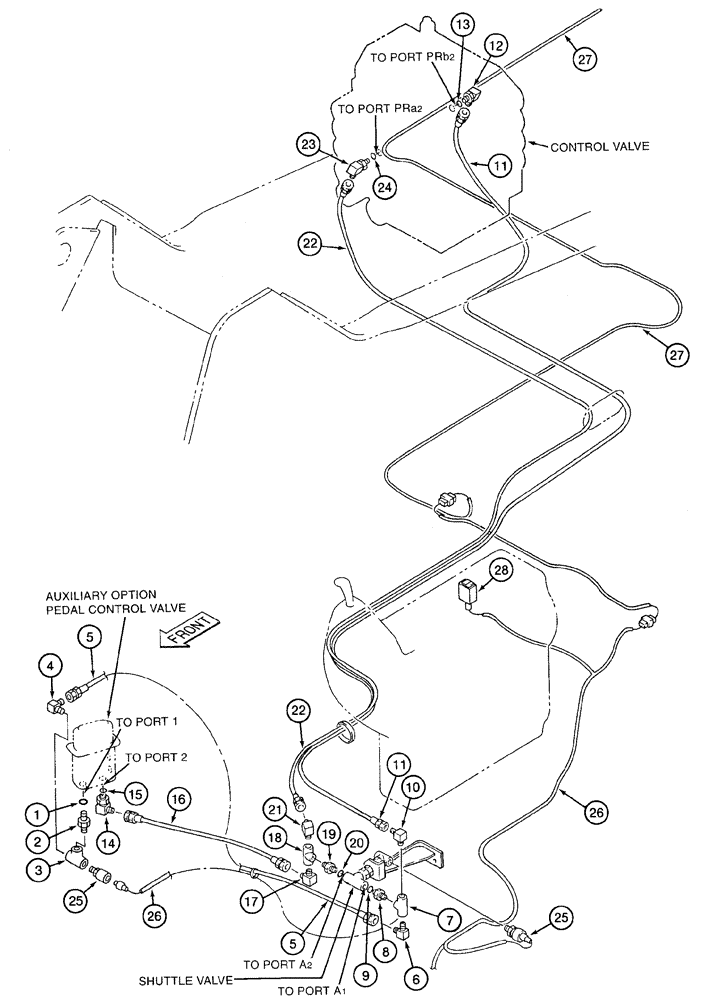

Запчасти Case 9050B (8-106) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINE, PEDAL FORWARD SIGNAL LINE (08) - HYDRAULICS

1

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.

2

152899A1

HYD CONNECTOR

straight, special

1шт.

3

152135A1

TEE

special

1шт.

4

153596A1

ADAPTER

ELBOW - 90 degree, special

1шт.

5

161272A1

HOSE

- 650 mm (25-9/16 inch) long, Pedal-forward signal line (pedal control valve port "1" to shuttle valve port "A1")

1шт.

6

153596A1

ADAPTER

ELBOW - 90 degree, special

1шт.

7

152135A1

TEE

special

1шт.

8

152899A1

HYD CONNECTOR

CONNECTOR - straight, special

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.

10

153596A1

ADAPTER

90 degree, special

1шт.

11

163438A1

HYDRAULIC HOSE,3800.00 mm

- Pedal-forward signal line (From tee at shuttle valve port "A1" to control valve port "PRb2") 3800.00 mm

1шт.

12

156554A1

ELBOW

90 degree, special, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, pedal backward signal lines, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, pedal backward signal lines

1шт.

16

152775A1

HOSE ASSY.

19-3/4 inch (500 mm) long pedal-backward signal line (pedal control valve port "2" to shuttle valve port "A2")

1шт.

17

153596A1

ADAPTER

90 degree, special, pedal backward signal lines

1шт.

18

152135A1

TEE

special, pedal backward signal lines

1шт.

19

152899A1

HYD CONNECTOR

CONNECTOR - straight, pedal backward signal lines

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector, pedal backward signal lines

1шт.

21

153596A1

ADAPTER

90 degree, special, pedal backward signal lines

1шт.

22

161292A1

HOSE,3550.00 mm

- Pedal-backward signal line (From tee at shuttle valve port "A2" to control valve port "PRa2") 3550.00 mm

1шт.

23

156554A1

ELBOW

90 degree, special, pedal backward signal lines, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, pedal backward signal lines

1шт.

25

159599A1

PRESSURE SWITCH

SWITCH - pressure, electrical components

2шт.

26

163127A1

HARNESS

wiring, electrical components

1шт.

27

163128A1

HARNESS

wiring, electrical components

1шт.

28

162660A1

TOGGLE SWITCH

Aux Attachment Control Switch - selector, single/double option, electrical components

1шт.
