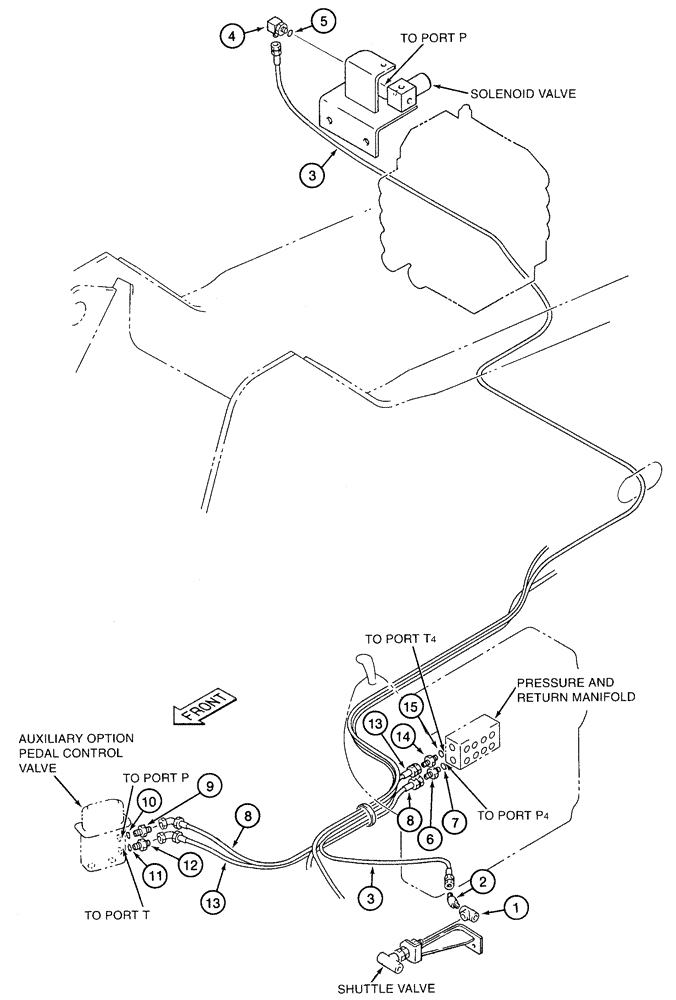

Запчасти Case 9050B (8-104) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT LINES, OPERATORS CAB, PILOT SUPPLY LINES (08) - HYDRAULICS

1

152135A1

TEE

- special

1шт.

2

153599A1

ADAPTER

ELBOW - special 45 degree

1шт.

3

157243A1

HOSE

161-7/8 inch (4100 mm) long solenoid valve pilot supply line (tee in shuttle valve to solenoid valve port "P")

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159045A1

HOSE ASSY.

45-1/4 inch (1150 mm) long pedal control valve pilot supply line (pressure and return manifold port "P4" to pedal control valve port "P")

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

161841A1

HYD CONNECTOR

ADAPTER - straight, special, pilot relief lines, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

pilot relief lines

1шт.

13

159045A1

HOSE ASSY.

45-1/4 inch (1150 mm) long pedal control valve pilot return line (pedal control valve port "T" to pressure and return manifold port "T4"), pilot relief lines

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, pilot relief lines, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

pilot relief lines

1шт.
