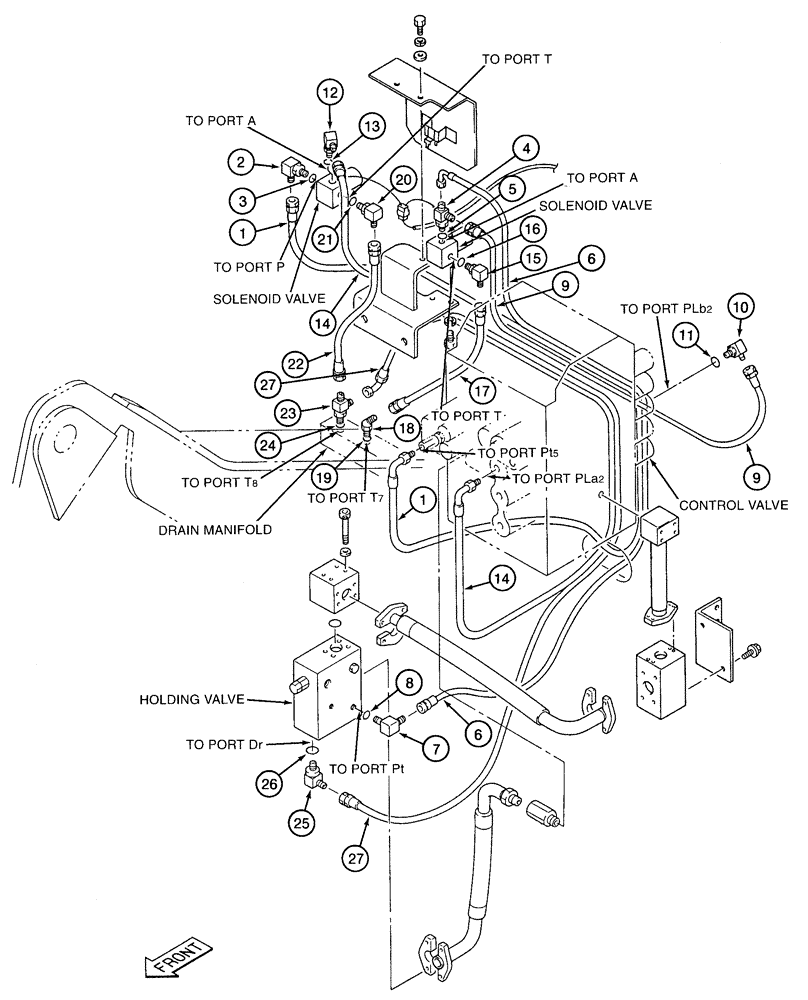

Запчасти Case 9050B (8-102) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT LINES, BATTERY COMPARTMENT, PILOT SIGNAL LINES (08) - HYDRAULICS

1

161486A1

HOSE ASSY.

78-3/4 inch (2000 mm) long auxiliary activity signal line (from control valve port "Pt5" to solenoid valve port "P")

1шт.

2

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 3

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

4

159497A1

TEE

special, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee

1шт.

6

161657A1

HOSE ASSY.

63 inch (1600 mm) long dual flow signal line (from tee in solenid valve port "A" to holding valve port "Pt")

1шт.

7

156554A1

ELBOW

90 degree, special, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

9

153398A1

HOSE ASSY.

55-1/4 inch (1400 mm) long auxiliary option activity signal line (from tee in solenoid valve port "A" to control valve port "PLb2")

1шт.

10

156554A1

ELBOW

90 degree, special, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

14

161486A1

HOSE ASSY.

78-3/4 inch (2000 mm) long auxiliary activity signal line (from solenoid valve port "A" to control valve port "PLa2")

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, pilot relief lines, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow,, pilot relief lines

1шт.

17

156735A1

HOSE,6.3 mm ID x 350.00 mm

13-3/4 inch (350 mm) long solenoid valve relief line (from solenoid valve port "T" to drain manifold port "T7"), pilot

1шт.

18

150933A1

ELBOW

45 degree, pilot relief lines, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, pilot relief lines

1шт.

20

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, pilot relief lines, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, pilot relief lines

1шт.

22

156735A1

HOSE,6.3 mm ID x 350.00 mm

13-3/4 inch (350 mm) long solenoid valve relief line (from solenoid valve port "T" to drain manifold port "T8"), pilot

1шт.

23

159497A1

TEE

special, pilot relief lines, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee, pilot relief lines

1шт.

25

156554A1

ELBOW

90 degree, special, pilot relief lines, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, pilot relief lines

1шт.

27

161271A1

HOSE ASSY.

64-15/16 inch (1650 mm) long holding valve relief line (from holding valve port "Dr" to tee in drain manifold port "T8"), pilot

1шт.
