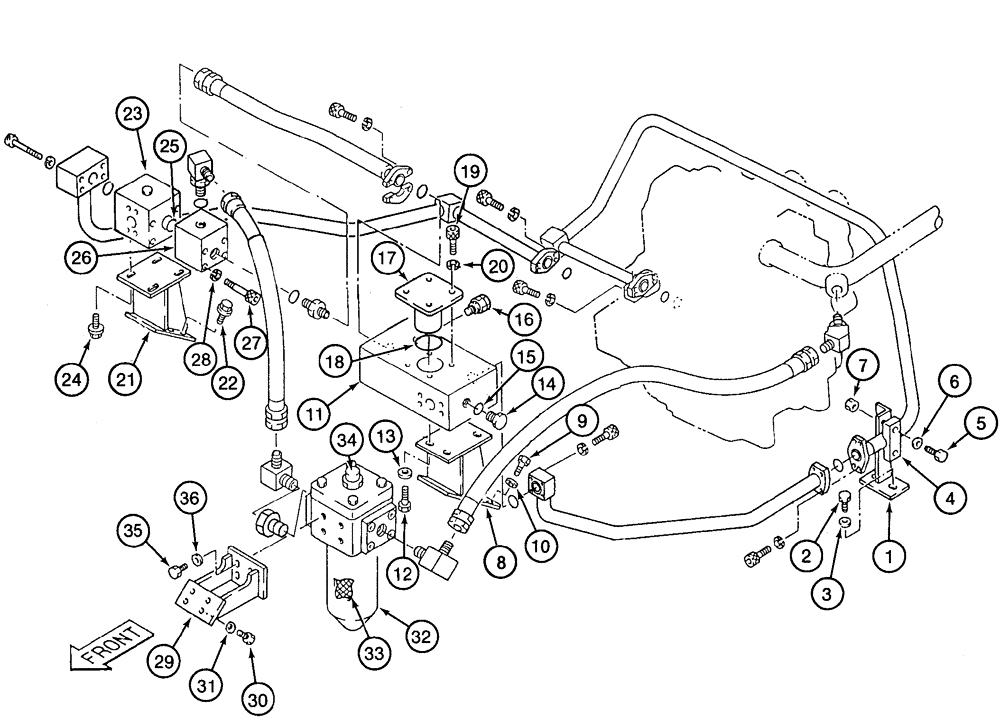

Запчасти Case 9050B (8-100) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, COMPONENT MOUNTING AND TUBE SUPPORTS (08) - HYDRAULICS

1

162676A1

BRACKET

mounting

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

2шт.

3

150811A1

WASHER

flat, special 12 mm

2шт.

4

162613A1

COLLAR

tubing

1шт.

5

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, full threads 12 - 1.75 x 80 mm, class 10.9

2шт.

6

150811A1

WASHER

flat, special 12 mm

2шт.

7

829-1412

NUT,M12, Cl 10.9

2шт.

8

163125A1

BRACKET

mounting manifold

1шт.

9

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

4шт.

11

162657A1

MANIFOLD

left-hand auxiliary equipment supply

1шт.

12

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

4шт.

14

162659A1

PLUG

manifold, Includes: Ref. 15

1шт.

15

154523A1

O-RING

plug

1шт.

16

162656A1

VALVE

relief

1шт.

17

162658A1

MANIFOLD VALVE

stop

1шт.

18

163437A1

O-RING

cover

1шт.

19

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

- hex socket, 16 - 2.0 x 30 mm, class 12.9

4шт.

20

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

4шт.

21

163124A1

BRACKET

mounting manifold

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

23

162665A1

VALVE

MANIFOLD - right-hand auxiliary equipment supply

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

25

153626A1

O-RING

manifold

1шт.

26

162667A1

MANIFOLD

filter supply

1шт.

27

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

- hex socket, 14 - 2.0 x 90 mm, class 12.9

4шт.

28

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, M14

4шт.

29

162670A1

BRACKET

mounting filter

1шт.

30

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 30 mm, class 10.9

4шт.

31

150811A1

WASHER

flat, special 12 mm

4шт.

32

159704A1

FILTER ASSY

ASSEMBLY - line, Includes: Ref. 33 and 34

1шт.

33

159705A1

HYDRAULIC OIL FILTER

filter

1шт.

34

159706A1

INDICATOR

GAUGE - special indicator

1шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

36

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.
