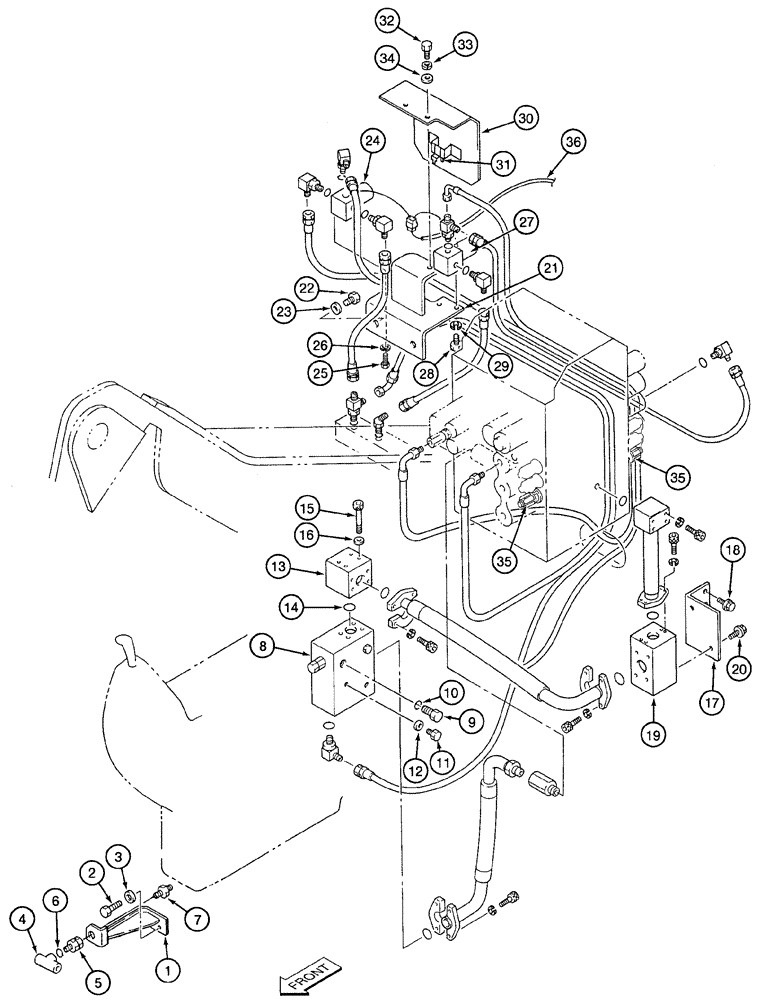

Запчасти Case 9050B (8-098) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, COMPONENT MOUNTING (08) - HYDRAULICS

1

162638A1

BRACKET

mounting shuttle valve

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

4

KHJ17090

VALVE PRESSURE RELIE

shuttle; Replaces 158186A1

1шт.

5

162654A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

7

162640A1

ADAPTER

- special

1шт.

8

153296A1

VALVE

ASSEMBLY - holding component parts not serviced separately

1шт.

9

159085A1

PLUG

holding valve, Includes: Ref. 10

1шт.

10

154487A1

O-RING

plug

1шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

2шт.

12

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

13

162674A1

VALVE

check

1шт.

14

154548A1

O-RING

check valve

1шт.

15

862-10080

HEX SOC SCREW,M10 x 80mm, Cl 12.9

BOLT - hex, full threads 10 - 1.5 x 80 mm, class 10.9

4шт.

16

112309A1

LOCK WASHER

lock, special

4шт.

17

162684A1

BRACKET

mounting manifold

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

19

162683A1

MANIFOLD

hydraulic

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

21

162681A1

BRACKET

mounting solenoid valve

1шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

23

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

24

162680A1

VALVE

solenoid

1шт.

25

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

162538A1

VALVE

ASSEMBLY - solenoid parts list page 8-149

1шт.

28

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

162679A1

COVER

special solenoid valve, Includes: Ref. 31

1шт.

31

162299A1

CLIP

cover

1шт.

32

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

33

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

35

157249A1

VALVE PRESSURE RELIE

port relief

2шт.

36

163128A1

HARNESS

wiring

1шт.
