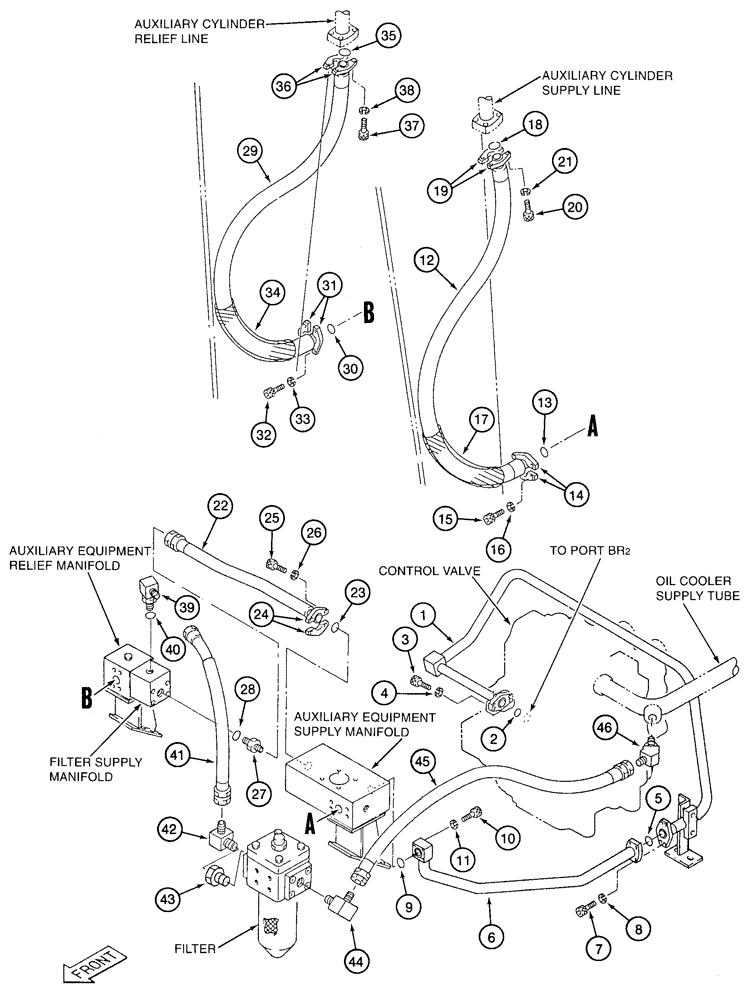

Запчасти Case 9050B (8-094) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, CYLINDER SUPPLY & RELIEF LINES, CYLINDER SUPPLY LINES (08) - HYDRAULICS

1

162677A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

cylinder supply tube (control valve port "BR2" to manifold supply tube)

1шт.

2

154548A1

O-RING

tube

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

4

112309A1

LOCK WASHER

lock, special

4шт.

5

153626A1

O-RING

tube

1шт.

6

163123A1

TUBE ASSY.,34.7 mm ID, 42.8 mm OD

manifold supply (cylinder supply tube to auxiliary equipment supply manifold)

1шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

4шт.

8

150336A1

SPRING WASHER

lock 14 mm

4шт.

9

153626A1

O-RING

tube

1шт.

10

862-14080

HEX SOC SCREW,M14 x 80mm, Cl 12.9

SCREW - hex socket 14 - 2.0 x 80 mm, class 12.9

4шт.

11

150336A1

SPRING WASHER

lock 14 mm

4шт.

12

162675A1

HYDRAULIC HOSE,31.80 mm ID x 1600.00 mm

- Cylinder supply line (Auxiliary equipment supply manifold to auxiliary cylinder supply lines) 31.80 mm ID x 1600.00 mm

1шт.

13

153626A1

O-RING

hose

1шт.

14

150124A1

FLANGE

split

2шт.

15

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

4шт.

16

150336A1

SPRING WASHER

lock 14 mm

4шт.

17

159498A1

GUARD

hose

1шт.

18

153626A1

O-RING

hose

1шт.

19

150124A1

FLANGE

split

2шт.

20

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9

4шт.

21

150336A1

SPRING WASHER

lock 14 mm

4шт.

22

162664A1

HYDRAULIC HOSE,31.80 mm ID x 570.00 mm

- Auxiliary equipment crossover (Auxiliary equipment supply manifold to filter supply manifold), Cylinder relief lines 31.80 mm ID x 570.00 mm

1шт.

23

153626A1

O-RING

hose, cylinder relief lines

1шт.

24

157856A1

CLAMP BRACKET

FLANGE - split, cylinder relief lines

2шт.

25

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9, Cylinder relief lines

4шт.

26

112309A1

LOCK WASHER

lock, special, cylinder relief lines

4шт.

27

159047A1

ADAPTER

straight, special, cylinder relief lines, Includes: Ref. 28

1шт.

28

154559A1

O-RING

adapter, cylinder relief lines

1шт.

29

162675A1

HYDRAULIC HOSE,31.80 mm ID x 1600.00 mm

- Cylinder relief line (Auxiliary equipment relief manifold to auxiliary cylinder relief line) 31.80 mm ID x 1600.00 mm

1шт.

30

153626A1

O-RING

hose, cylinder relief lines

1шт.

31

150124A1

FLANGE

split, cylinder relief lines

2шт.

32

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9, cylinder relief lines

4шт.

33

150336A1

SPRING WASHER

lock 14 mm, cylinder relief lines

4шт.

34

159498A1

GUARD

hose, cylinder relief lines

1шт.

35

153626A1

O-RING

hose, cylinder relief lines

1шт.

36

150124A1

FLANGE

split, cylinder relief lines

2шт.

37

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket 14 - 2.0 x 50 mm, class 12.9, cylinder relief lines

4шт.

38

150336A1

SPRING WASHER

lock 14 mm, cylinder relief lines

4шт.

39

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

90 degree, cylinder relief lines, Includes: Ref. 40

1шт.

40

154559A1

O-RING

elbow, cylinder relief lines

1шт.

41

163126A1

HYDRAULIC HOSE,31.80 mm ID x 600.00 mm

- Filter inlet (Filter supply manifold to filter inlet port), Cylinder relief lines 31.80 mm ID x 600.00 mm

1шт.

42

162669A1

ELBOW

- 90 degree, cylinder relief lines

1шт.

43

163763A1

SOCKET

ADAPTER - straight, special, cylinder relief lines

1шт.

44

162669A1

ELBOW

- 90 degree, cylinder relief lines

1шт.

45

162673A1

HYDRAULIC HOSE,31.80 mm ID x 1000.00 mm

- Filter relief (Filter to oil cooler supply tube), Cylinder lines 31.80 mm ID x 1000.00 mm

1шт.

46

157588A1

ELBOW

45 degree, cylinder relief lines

1шт.
