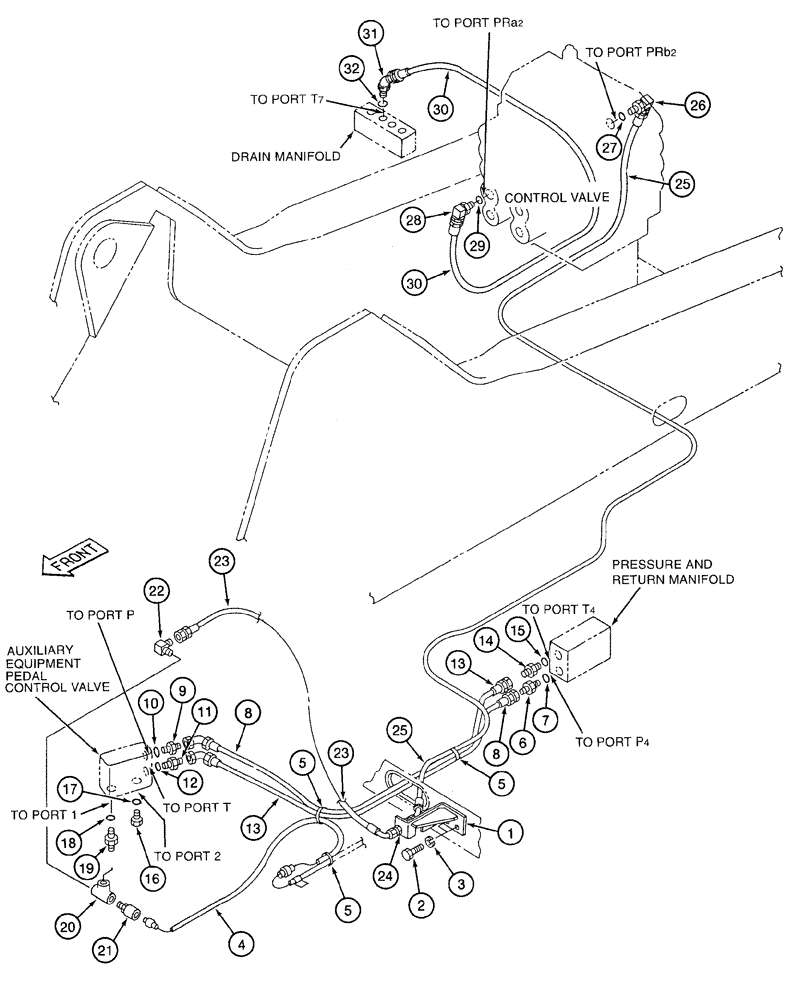

Запчасти Case 9050B (8-092) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162638A1
BRACKET
mounting bulkhead
1шт.
2
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
- hex, full threads 10 - 1.5 x 25 mm, class 10.9
4шт.
3
150409A1
WASHER
flat, special 10.5 x 21 x 3.2 mm
4шт.
4
159636A1
HARNESS
wiring
1шт.
5
150067A1
MOUNTING CLIP
tie
1шт.
6
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, pressure and return lines, Includes: Ref. 7
1шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, pressure and return lines
1шт.
8
159045A1
HOSE ASSY.
45-1/4 inch (1150 mm) long pilot pressure supply line (pressure and return manifold port "P4" to pedal control valve port "P")
1шт.
9
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, pressure and return lines, Includes: Ref. 10
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, pressure and return lines
1шт.
11
161841A1
HYD CONNECTOR
ADAPTER - straight, special, pressure and return lines, Includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, pressure and return lines
1шт.
13
159045A1
HOSE ASSY.
45-1/4 (1150 mm) long pilot pressure return line (pedal control valve port "T" to pressure and return manifold port "T4")
1шт.
14
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, pressure and return lines
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, pressure and return lines
1шт.
16
159002A1
PLUG
hydraulic port (in pedal control valve port "2"), signal and relief lines, Includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
plug, control signal and relief lines
1шт.
18
154467A1
O-RING,10.8mm ID x 2.4mm Width
pedal control valve, signal and relief lines
1шт.
19
152899A1
HYD CONNECTOR
CONNECTOR - straight, special, control signal and relief lines
1шт.
20
152135A1
TEE
special, control signal and relief lines
1шт.
21
159599A1
PRESSURE SWITCH
pressure, control signal and relief lines
1шт.
22
153596A1
ADAPTER
ELBOW - 90 degree, special, control signal and relief lines
1шт.
23
161659A1
HYDRAULIC HOSE
- 27-5/8 inch (700 mm) long, Auxiliary option control signal line (From tee in pedal control valve port "1" to fitting in bulkhead mounting bracket), Relief
1шт.
24
159481A1
ADAPTER
FITTING - special, control signal and relief lines
1шт.
25
163434A1
HYDRAULIC HOSE
149-5/8 inch (3800 mm) long, Auxiliary option control signal line (From fitting in bulkhead mounting bracket to control valve port "PRb2"), Relief
1шт.
26
156554A1
ELBOW
90 degree, special, control signal and relief lines, Includes: Ref. 27
1шт.
27
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, control signal and relief lines
1шт.
28
156554A1
ELBOW
90 degree, special, control signal and relief lines, Includes: Ref. 29
1шт.
29
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, control signal and relief lines
1шт.
30
157852A1
HOSE,6.30 mm ID x 1650.00 mm
64-15/16 inch (1650 mm) long auxiliary option control signal relief line (from control valve port "PRa2" to drain manifold port "T7")
1шт.
31
150933A1
ELBOW
45 degree, control signal and relief lines, Includes: Ref. 32
1шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, control signal and relief lines
1шт.
Выбрано товаров: 32
