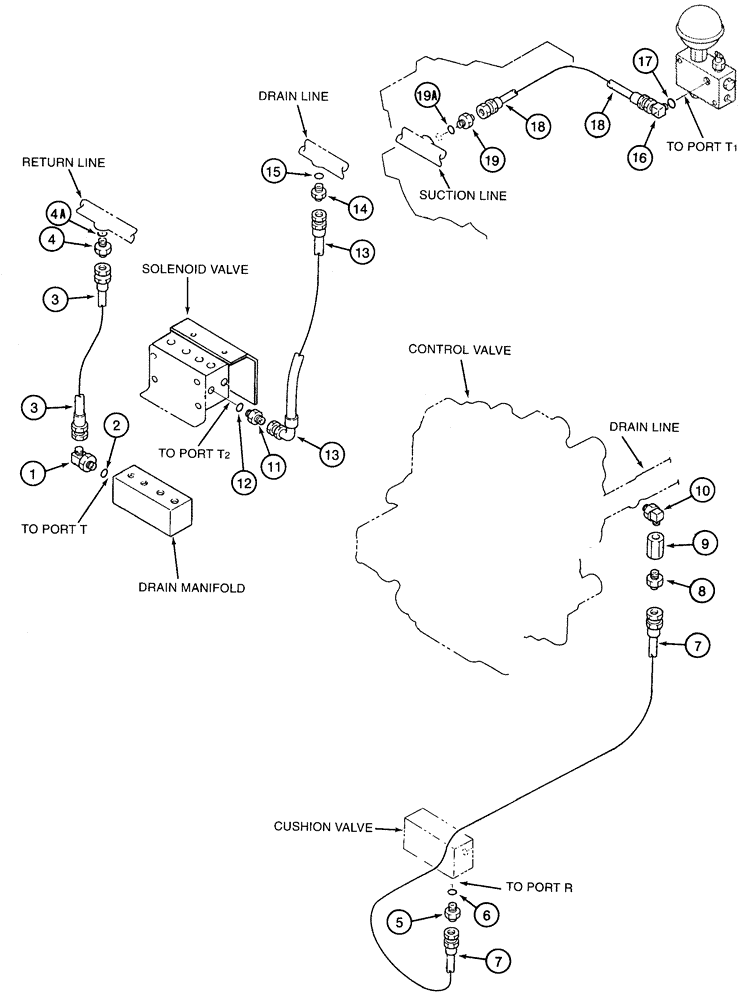

Запчасти Case 9050B (8-088) - MISCELLANEOUS DRAIN LINES (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

90 degree, Includes: Ref. 2

1шт.

2

154487A1

O-RING

elbow

1шт.

3

163510A1

HYDRAULIC HOSE,12.70 mm ID x 420.00 mm

- Drain manifold drain line (Drain manifold port "T" to port in return line) 12.70 mm ID x 420.00 mm

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 4A

1шт.

4a

154487A1

O-RING

adapter

1шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 6

1шт.

6

154475A1

O-RING

adapter

1шт.

7

159072A1

HOSE

65 inch (1650 mm) long cushion valve drain line (cushion valve port "R" to port in return line)

1шт.

8

152748A1

ADAPTER

straight, special

1шт.

9

151552A1

FILTER

hydraulic

1шт.

10

159022A1

ELBOW

90 degree, special

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

adapter

1шт.

13

162651A1

HOSE,400.00 mm

long solenoid valve drain line (eight-spool solenoid valve port "T2" to port in drain line) 400.00 mm

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 15

1шт.

15

154475A1

O-RING

adapter

1шт.

16

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

90 degree, Includes: Ref. 17

1шт.

17

154487A1

O-RING

elbow

1шт.

18

163110A1

HYDRAULIC HOSE,12.70 mm ID x 550.00 mm

- Pilot pressure relief line (Check valve port in suction line) 12.70 mm ID x 550.00 mm

1шт.

19

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 19A

1шт.

19a

154487A1

O-RING

adapter

1шт.
