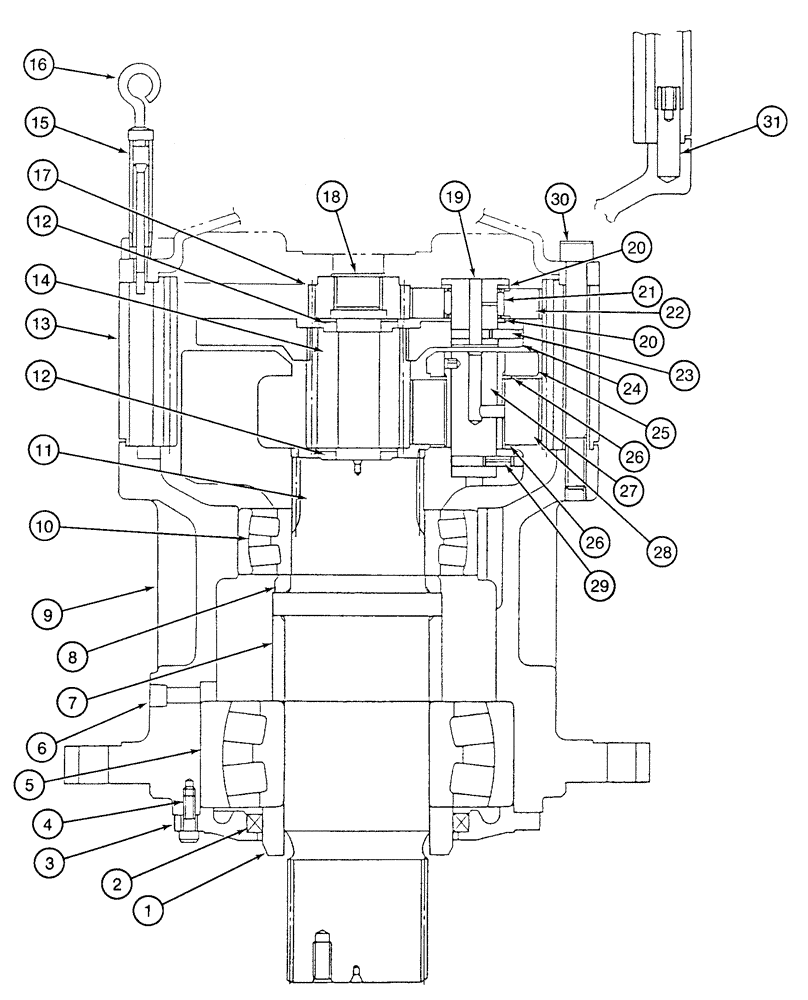

Запчасти Case 9050 (8-62) - 150523A1 AND 158853A1 SWING REDUCTION GEAR ASSEMBLIES (08) - HYDRAULICS

150523A1

REDUCER

GEAR, swing, Includes: Ref. 1 - 31, Serial Range: -DAC0500101

1шт.

158853A1

REDUCER

GEAR, swing, Includes: Ref. 1 - 31, Start Serial: DAC0500101

1шт.

1

150468A1

HOLDER

shaft

1шт.

2

150494A1

OIL SEAL

oil, Serial Range: cover-collar

1шт.

3

158854A1

RETAINER

oil seal, was 150430A1

1шт.

4

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

5

150491A1

ROLLER BEARING,130mm ID x 280mm OD x 93mm W

roller outer, flanged end

1шт.

6

150825A1

PLUG

port housing

1шт.

7

150503A1

SPACER

bearing, long

1шт.

8

150500A1

SPACER

bearing, short

1шт.

9

150427A1

HOUSING ASSY.

gear

1шт.

10

150260A1

ROLLER BEARING,120 mm ID x 215 mm OD x 58 mm

roller, inner

1шт.

11

150437A1

SHAFT

drive

1шт.

12

150471A1

PLATE, THRUST

2шт.

13

150528A1

PINION

ring

1шт.

14

150538A1

SUN GEAR

1шт.

15

150435A1

COLUMN JACKET

dipstick

1шт.

16

150438A1

GAUGE

DIPSTICK oil lube

1шт.

17

150536A1

SUN GEAR

1шт.

18

800-1145

SNAP RING,M45, Ext

Retaining

1шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSY. planetary, primary, Includes: Ref. 19 - 24

1шт.

19

150451A1

GEAR SHAFT

PIN planetary

3шт.

20

150458A1

WASHER, THRUST

side

6шт.

21

150489A1

BEARING, NEEDLE

3шт.

22

150541A1

SUN GEAR

planetary

3шт.

23

738-1825

LOCK PIN,M8 x 25, Slotted

3шт.

24

150532A1

BEARING CARRIER

planetary, primary

1шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSY. planetary, secondary, Includes: Ref. 25 - 29

1шт.

25

150534A1

HOUSING

planetary

1шт.

26

150463A1

WASHER, THRUST

PLATE side

8шт.

27

150456A1

GEAR SHAFT

PIN

4шт.

28

150544A1

SUN GEAR

planetary carrier

4шт.

29

738-1825

LOCK PIN,M8 x 25, Slotted

4шт.

30

150483A1

BOLT,Hex Skt, M20

hex socket, special

12шт.

31

150474A1

PIN

special

4шт.
