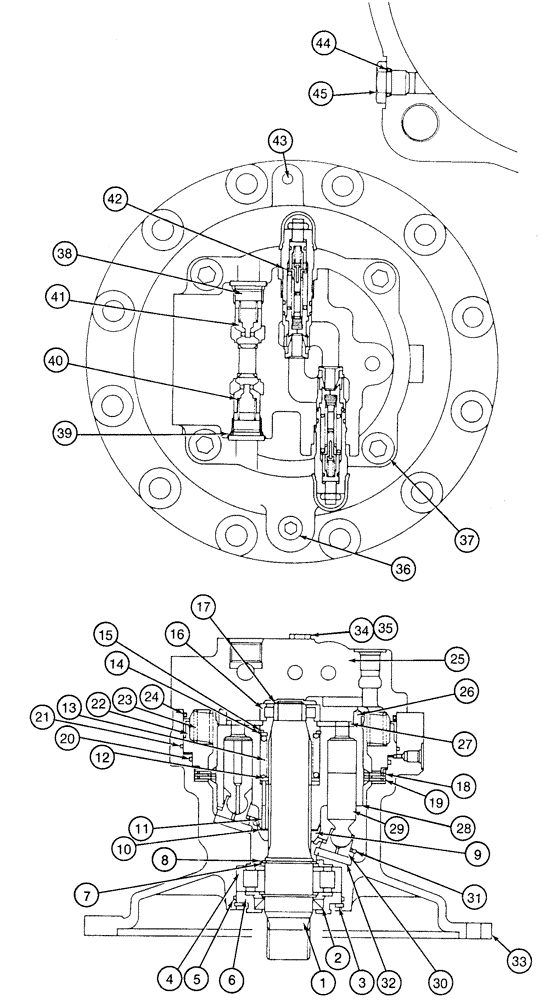

Запчасти Case 9050 (8-58) - 156778A1 SWING MOTOR (08) - HYDRAULICS

156778A1

MOTOR

hydraulic swing, Includes: Ref. 1 - 45

1шт.

1

155362A1

SHAFT

drive

1шт.

2

155109A1

OIL SEAL

oil shaft, splined end

1шт.

3

800-21110

SNAP RING,M110, Int

internal retaining, No. 110

1шт.

4

156132A1

BEARING, ROLLER,50 mm ID x 110 mm OD x 27 mm

1шт.

5

154741A1

O-RING

, Serial Range: retainer-housing

1шт.

6

156319A1

COVER

RETAINER shaft seal

1шт.

7

155627A1

SPACER

bearing

2шт.

8

800-1150

SNAP RING,M50, Ext

external retaining, No. 50

2шт.

9

156800A1

RETAINER

BUSHING spherical

1шт.

10

155628A1

SPACER

push rod

1шт.

11

155656A1

TAPPET

ROD push

12шт.

12

155629A1

SPACER

between push rod and spring

1шт.

13

156086A1

SPRING

cylinder

1шт.

14

155627A1

SPACER

spring seat

1шт.

15

800-2162

SNAP RING,M62, Int

Retaining

1шт.

16

156140A1

BEARING, ROLLER,25 mm ID x 62 mm OD x 17 mm

shaft end

1шт.

17

800-1125

SNAP RING,M25, Ext

Retaining

1шт.

18

156317A1

DISC

separator brake

3шт.

19

156318A1

BRAKE DISC

DISC, BRAKE friction

2шт.

20

155215A1

O-RING

backup piston to housing, small

1шт.

21

155218A1

O-RING

piston to housing, large

1шт.

22

155936A1

PISTON

brake

1шт.

23

156085A1

SPRING

brake

24шт.

24

155217A1

O-RING

seal valve housing to motor housing

1шт.

155798A1

VALVE

HOUSING, Includes: Ref. 25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

26

738-1816

LOCK PIN,M8 x 16, Slotted

roll, 8 x 16 mm

2шт.

27

156330A1

LARGE PLATE

PLATE, LARGE valve

1шт.

28

158109A1

CYLINDER

BLOCK

1шт.

155796A1

SET OF PARTS

PISTON, swing motor, Includes: Ref. 29 & 30

1шт.

29

NSS

NOT SOLD SEPARAT

PISTON swing motor

9шт.

30

NSS

NOT SOLD SEPARAT

SHOE piston

9шт.

31

156332A1

TRAY

PLATE piston

1шт.

32

156331A1

TRAY

PLATE swash piston shoe

1шт.

33

156320A1

HOUSING

swing motor

1шт.

34

155496A1

PLUG

port

2шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

port plug

2шт.

36

151035A1

PLUG

pipe

1шт.

37

863-22045

HEX SOC SCREW,M22 x 45mm, Cl 12.9

hex socket, 22 - 2.5 x 45 mm, class 12.9

4шт.

38

155475A1

PLUG

port

2шт.

39

154519A1

O-RING

plug

2шт.

40

156072A1

SPRING

compression

2шт.

41

155942A1

PLUNGER

check valve

2шт.

42

155786A1

VALVE, PRESSURE RELI

EF

2шт.

43

153868A1

PLUG

port

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

45

155496A1

PLUG

port

1шт.
