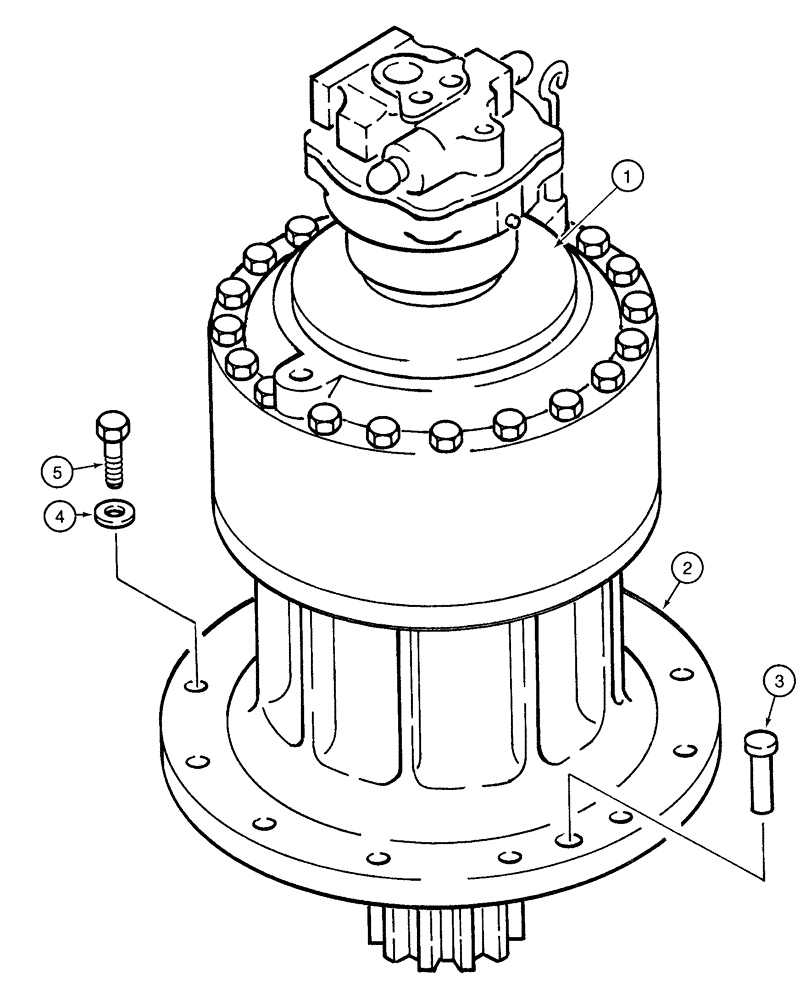

Запчасти Case 9050 (8-56) - SWING MOTOR AND MOUNTING (08) - HYDRAULICS

156777A1

MOTOR

swing with reduction gear, parts list Figures 8-56 - 8-62, Includes: Ref. 1 & 2, Serial Range: -DAC0500101

1шт.

158852A1

MOTOR

swing with reduction gear, parts list Figures 8-56 - 8-62, Includes: Ref. 1 & 2, Start Serial: DAC0500101

1шт.

1

156778A1

MOTOR

hydraulic, parts list Figures 8-58

1шт.

2

150523A1

REDUCER

GEAR ASSY. swing motor, parts list Figure 8-62, Serial Range: -DAC0500101

1шт.

2

158853A1

REDUCER

GEAR ASSY. swing motor, parts list Figure 8-62, Start Serial: DAC0500101

1шт.

3

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

4

151003A1

WASHER

flat, special

12шт.

5

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

12шт.
