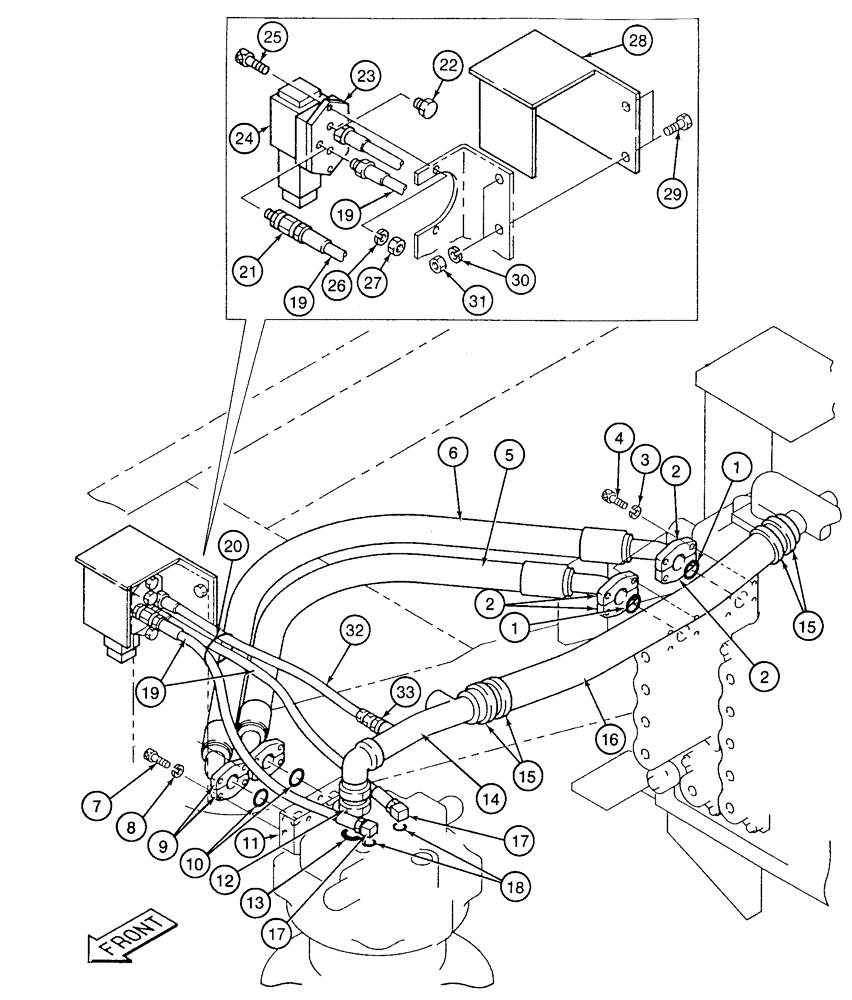

Запчасти Case 9050 (8-54) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

162246A1

O-RING

, Serial Range: O-RING-valve

2шт.

2

153459A1

FLANGE

split hose, Serial Range: mounting-valve

4шт.

3

112310A1

WASHER

lock, special

8шт.

4

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

5

153281A1

HOSE ASSY.

37-3/4 inch (960 mm) long right-hand side of control valve, front swing port

1шт.

6

153283A1

HOSE ASSY.

46-1/2 inch (1180 mm) long right-hand side of control valve, rear swing port

1шт.

7

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

112310A1

WASHER

lock, special

8шт.

9

153458A1

FLANGE

split hose mounting, at swing motor

4шт.

10

161097A1

O-RING

, Serial Range: O-RING-valve

2шт.

11

REF

INSTRUCTION

MOTOR ASSY. hydraulic, swing, parts list Figures 8-58 - 8-62

1шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight at swing motor, Includes: Ref. 13

1шт.

13

154523A1

O-RING

adapter

1шт.

14

153173A1

HYD TUBE

top of swing motor, Serial Range: return-valve

1шт.

15

150885A1

COLLAR

adjustable

4шт.

16

150823A1

HOSE

Swing Motor Return

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90° swing motor to solenoid, Includes: Ref. 18

2шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

19

153095A1

HOSE ASSY.

21-5/8 inch (550 mm) long to solenoid valve

2шт.

20

150071A1

MOUNTING CLIP

STRAP tie, 365 mm long

1шт.

21

153341A1

ORIFICE

flow restrictor hydraulic, with orifice

1шт.

22

151026A1

PLUG

port

1шт.

23

150589A1

PLATE

adapter solenoid, Serial Range: valve-hoses

1шт.

24

153470A1

VALVE

solenoid free swing, parts list Figure 8-42

1шт.

25

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

hex socket, 6 - 1.0 x 25 mm, class 12.9

2шт.

26

892-11006

LOCK WASHER,M6

2шт.

27

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

28

153179A1

COVER

BRACKET solenoid mounting

1шт.

29

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

30

892-11010

LOCK WASHER,M10

2шт.

31

829-1310

NUT,M10, Cl 10

Hex

2шт.

32

152981A1

HOSE ASSY.

17-3/4 inch (450 mm) long to control valve from solenoid valve

1шт.

33

153603A1

ADAPTER

straight solenoid return line

1шт.
