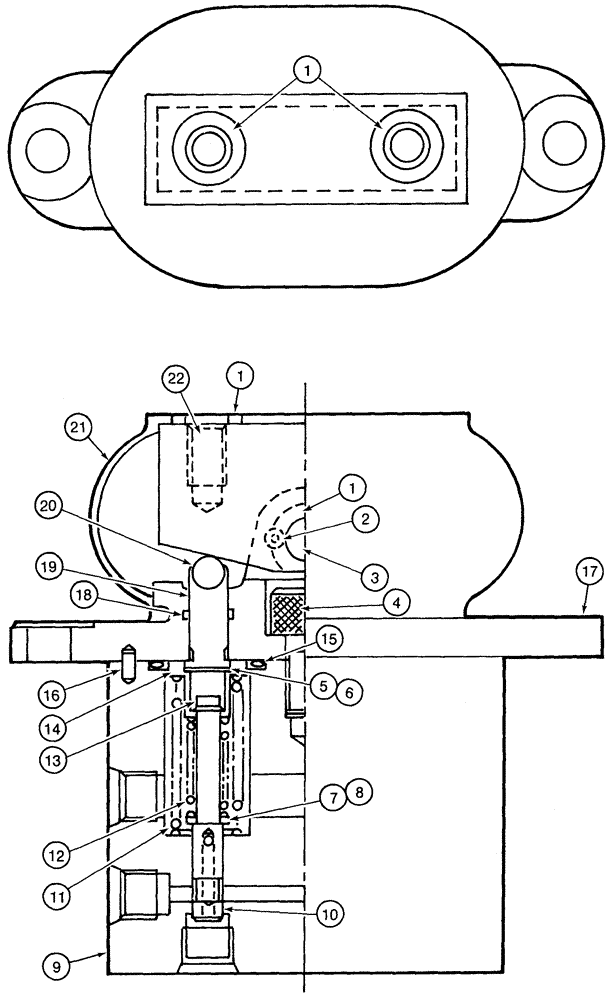

Запчасти Case 9050 (8-50) - 153090A1 REMOTE CONTROL VALVE (08) - HYDRAULICS

153090A1

VALVE

remote control, foot operated, Includes: Ref. 1 - 22

3шт.

1

156177A1

WASHER

special

4шт.

2

155567A1

PIN

special

2шт.

3

155566A1

COTTER PIN

pivot

1шт.

4

861-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

hex socket, 12 - 1.75 x 20 mm, class 12.9

1шт.

5

155571A1

SHIM

KIT

1шт.

6

155570A1

SHIM

KIT

1шт.

7

156178A1

WASHER

2шт.

8

155569A1

SHIM

KIT spring load

1шт.

9

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

11

156045A1

SPRING

outer

2шт.

12

156046A1

SPRING

inner

2шт.

13

156179A1

FLANGE BOLT

special flanged

2шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE valve

2шт.

15

154503A1

O-RING

special, Serial Range: cover-body

2шт.

16

738-1306

LOCK PIN,M3 x 6, Slotted

roll, 3 x 6 mm

2шт.

17

156280A1

COVER

valve

1шт.

18

154462A1

O-RING

, Serial Range: shuttle-cover

2шт.

155754A1

VALVE

SHUTTLE, Includes: Ref. 19 & 20

2шт.

19

NSS

NOT SOLD SEPARAT

SHUTTLE valve

1шт.

20

NSS

NOT SOLD SEPARAT

BALL steel

1шт.

21

155254A1

BELLOWS

dust

1шт.

22

155568A1

VALVE

PEDAL

1шт.
