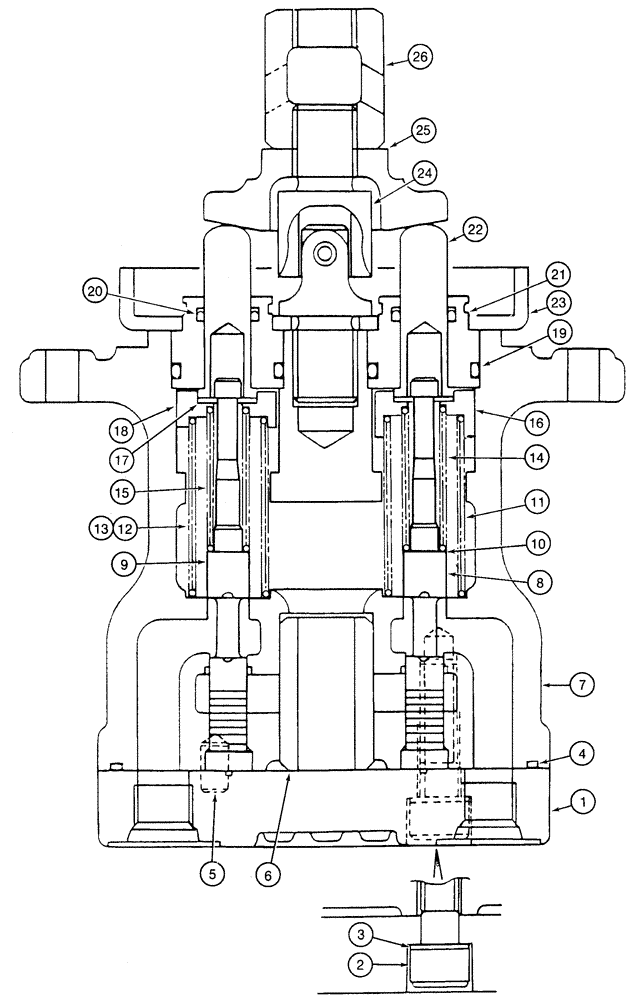

Запчасти Case 9050 (8-48) - 153316A1 REMOTE CONTROL VALVE (08) - HYDRAULICS

153316A1

VALVE

remote control, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

COVER closed end

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

155986A1

SEAL KIT

seal, Includes: Ref. 3 & 4

1шт.

3

156164A1

SEALING WASHER

WASHER sealing cover

2шт.

4

155167A1

O-RING

, Serial Range: O-RING-housing

1шт.

5

738-1510

LOCK PIN,M5 x 10, Slotted

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER flat, special

4шт.

11

156064A1

SPRING

valve outer, port 3

1шт.

12

156040A1

SPRING

valve outer, ports 2 and 4

2шт.

13

156021A1

SPRING

valve outer, port 1

1шт.

14

156042A1

SPRING

valve spool inner

2шт.

15

156043A1

SPRING

valve spool inner

2шт.

16

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER flat, special

8шт.

18

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

155769A1

PUSH ROD

Includes: Ref. 19 - 22

4шт.

155987A1

SEAL KIT

seal, Includes: Ref. 19 & 20

1шт.

19

154491A1

O-RING

, Serial Range: O-RING-housing

1шт.

20

155292A1

SEAL

push, Serial Range: rod-guide

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE push rod

1шт.

22

NSS

NOT SOLD SEPARAT

ROD push

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE cover, push rod end

1шт.

24

155255A1

FLEXIBLE JOINT

PIVOT remote control valve

1шт.

25

155577A1

PIVOTING ARM

ROCKER remote control valve

1шт.

26

156165A1

NUT

hex special

1шт.
