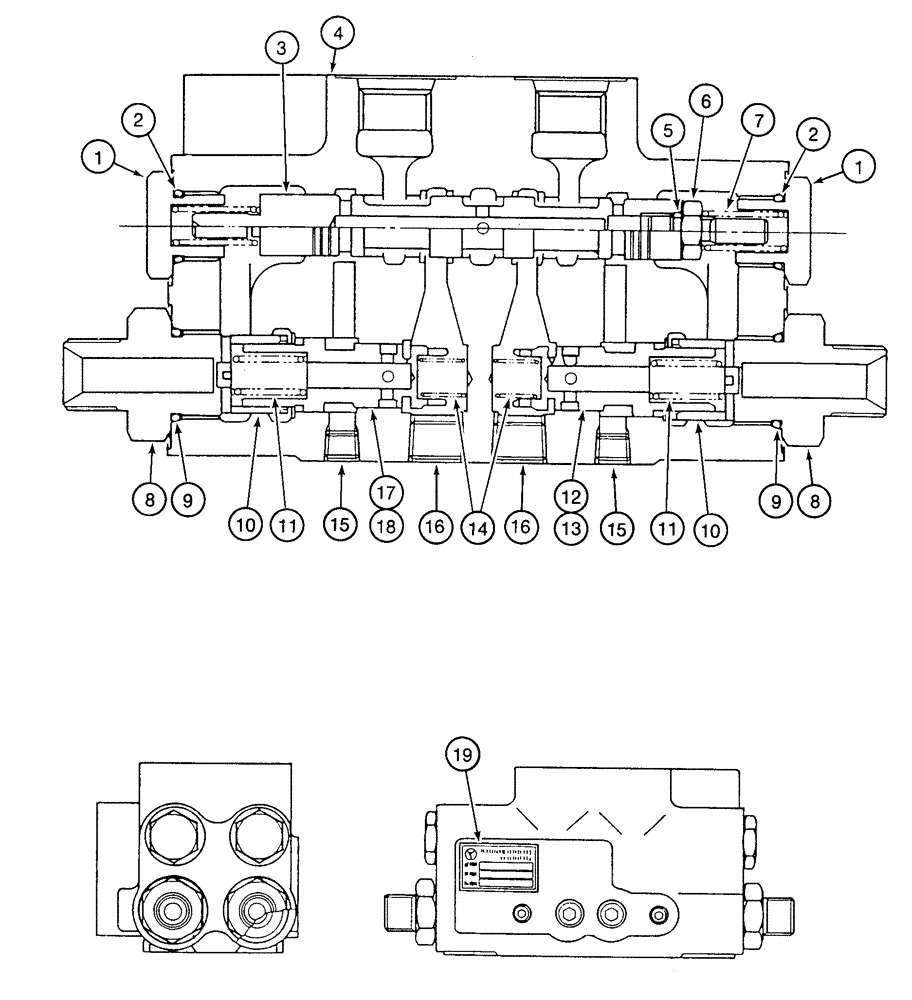

Запчасти Case 9050 (8-46) - 153327A1 CUSHION VALVE (08) - HYDRAULICS

153327A1

VALVE, CUSHION

Includes: Ref. 1 - 19

1шт.

1

153539A1

PLUG

spool end

4шт.

2

154474A1

O-RING

plug

4шт.

3

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

4

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

5

150559A1

O-RING

seal

2шт.

6

153537A1

SCREW

GUIDE spring spool end

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING spool return

4шт.

8

153548A1

PLUG

secondary spool retaining

4шт.

9

150221A1

O-RING

seal, special

4шт.

10

NSS

NOT SOLD SEPARAT

COLLAR secondary spool

4шт.

11

NSS

NOT SOLD SEPARAT

SPRING secondary spool, outer

4шт.

12

NSS

NOT SOLD SEPARAT

SPOOL secondary, arm cushioning

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL secondary, boom cushioning

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING secondary spool, inner

4шт.

15

151229A1

PLUG

hex socket small

11шт.

16

151026A1

PLUG

port large

8шт.

17

NSS

NOT SOLD SEPARAT

SPOOL secondary, arm cushioning

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL secondary, boom cushioning

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE identification

1шт.
