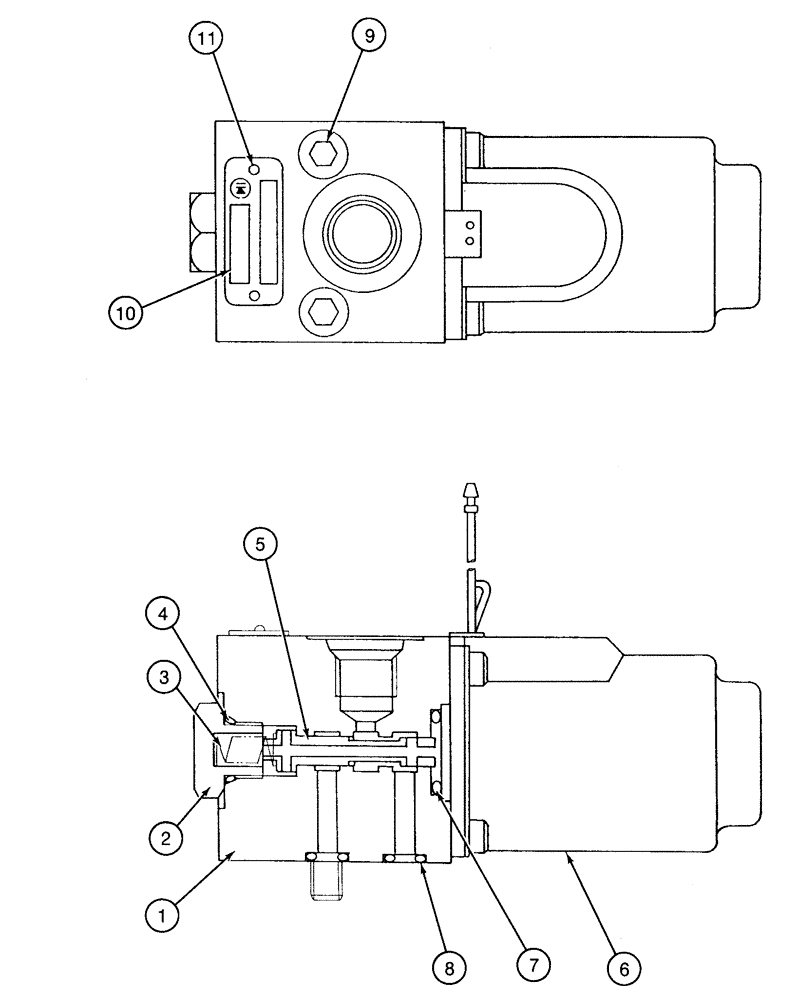

Запчасти Case 9050 (8-44) - 151017A1 SOLENOID VALVE, CUSHION (08) - HYDRAULICS

151017A1

VALVE

solenoid swing brake and two-speed travel, Includes: Ref. 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

155456A1

PLUG

port

1шт.

3

156048A1

SPRING

compression

1шт.

4

154463A1

O-RING

plug

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

6

NSS

NOT SOLD SEPARAT

SOLENOID valve

1шт.

7

154475A1

O-RING

solenoid

1шт.

8

154447A1

O-RING

port

2шт.

9

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE name

1шт.
