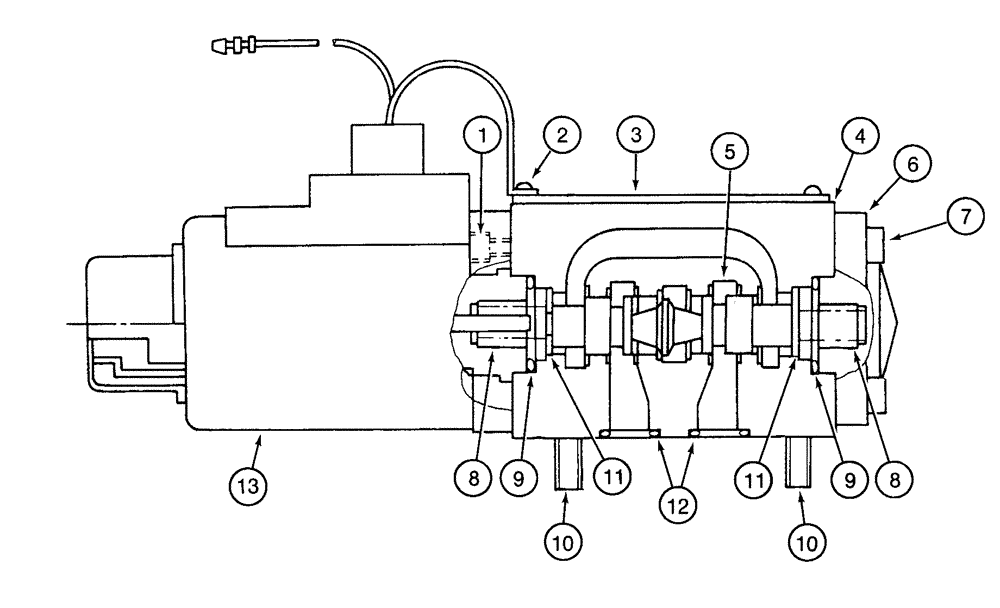

Запчасти Case 9050 (8-42) - 153470A1 SOLENOID VALVE, FREE SWING (08) - HYDRAULICS

153470A1

VALVE

solenoid free swing, Includes: Ref. 1 - 13

1шт.

1

156174A1

BOLT

hex socket solenoid to spool housing

4шт.

2

156176A1

SCREW

name plate mounting

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

6

156279A1

COVER

valve

1шт.

7

156175A1

BOLT (MACHINE),Hex Skt

hex socket cover mounting

4шт.

8

156044A1

SPRING

valve

2шт.

9

155205A1

O-RING

spring retainer

2шт.

10

150125A1

BOLT (MACHINE),Hex Skt

hex socket, special

4шт.

11

NSS

NOT SOLD SEPARAT

RETAINER spring

2шт.

12

155185A1

O-RING

port seal

4шт.

13

NSS

NOT SOLD SEPARAT

SOLENOID valve

1шт.
