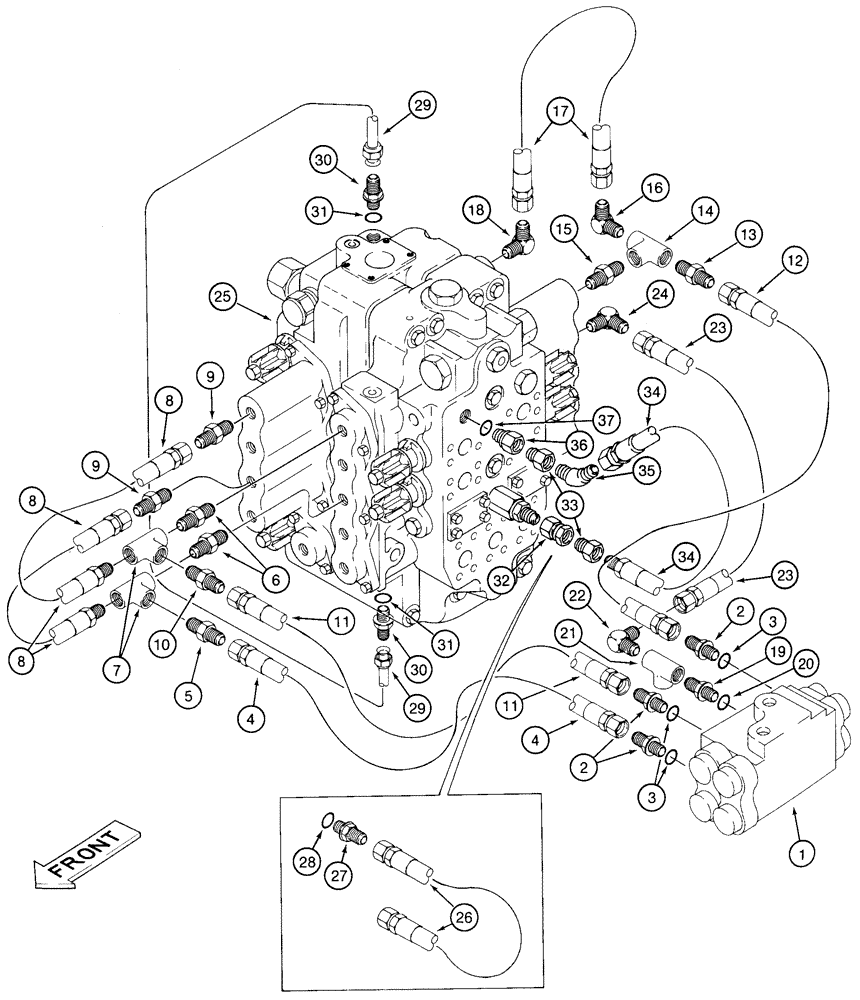

Запчасти Case 9050 (8-38) - HYDRAULIC CONTROL CIRCUIT, CUSHION VALVE TO CONTROL VALVE PILOT LINES (08) - HYDRAULICS

1

153327A1

VALVE, CUSHION

parts list Figure 8-46

1шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight hydraulic, Includes: Ref. 3

3шт.

3

154475A1

O-RING

adapter

1шт.

4

153134A1

HOSE

15-3/4 inch (400 mm) long cushion valve to control valve, front boom ports

1шт.

5

153597A1

ADAPTER

straight hydraulic

1шт.

6

150847A1

HYD CONNECTOR

CONNECTOR straight

2шт.

7

153425A1

TEE

hydraulic

2шт.

8

152351A1

HOSE,64mm ID x 320mm L

Control valve front pilot connections at boom and arm sections

2шт.

9

153603A1

ADAPTER

straight hydraulic

2шт.

10

153597A1

ADAPTER

straight hydraulic

1шт.

11

153293A1

HOSE ASSY.

15 inch (380 mm) long cushion valve to control valve front arm ports

1шт.

12

152781A1

HOSE

33-7/16 inch (850 mm) long cushion valve to control valve rear arm ports

1шт.

13

152748A1

ADAPTER

straight

1шт.

14

152135A1

TEE

hydraulic

1шт.

15

150847A1

HYD CONNECTOR

CONNECTOR straight

1шт.

16

153602A1

ELBOW

90°

1шт.

17

152351A1

HOSE,64mm ID x 320mm L

Arm section pilot connection, Rear of valve

1шт.

18

153596A1

ADAPTER

ELBOW 90 ° hydraulic

1шт.

19

150163A1

NIPPLE, LUBE

NIPPLE ADAPTER straight hydraulic, Includes: Ref. 20

1шт.

20

154475A1

O-RING

adapter

1шт.

21

153589A1

TEE

hydraulic

1шт.

22

153495A1

ADAPTER

ELBOW 90° hydraulic

1шт.

23

152872A1

HOSE

27-5/8 inch (700 mm) long cushion valve to left-hand rear boom section of control valve

1шт.

24

152749A1

ADAPTER

ELBOW 90°

1шт.

25

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72

1шт.

26

153498A1

HOSE ASSY.

25-5/8 inch (650 mm) long at control valve, if used

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight hydraulic, if used, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

29

153129A1

HYD TUBE

hydraulic pilot, control valve

1шт.

30

152693A1

CONNECTOR, ELEC

CONNECTOR straight, Includes: Ref. 31

2шт.

31

154475A1

O-RING

adapter

1шт.

32

161704A1

ADAPTER

straight, adjustable 1/4 female PT x 1/4-20 inch female flare, if used

1шт.

33

161703A1

BUSHING

ADAPTER pipe, reducer 1/4 PT x 1/2 inch female PT, if used

2шт.

34

161702A1

HOSE ASSY.

27-1/2 inch (700 mm) long at control valve, if used

1шт.

35

150915A1

ADAPTER

ELBOW 90°, if used

1шт.

36

153412A1

SOCKET

ADAPTER straight, 1/4 PT x 7/16-20 inch O-ring boss, if used, Includes: Ref. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.
