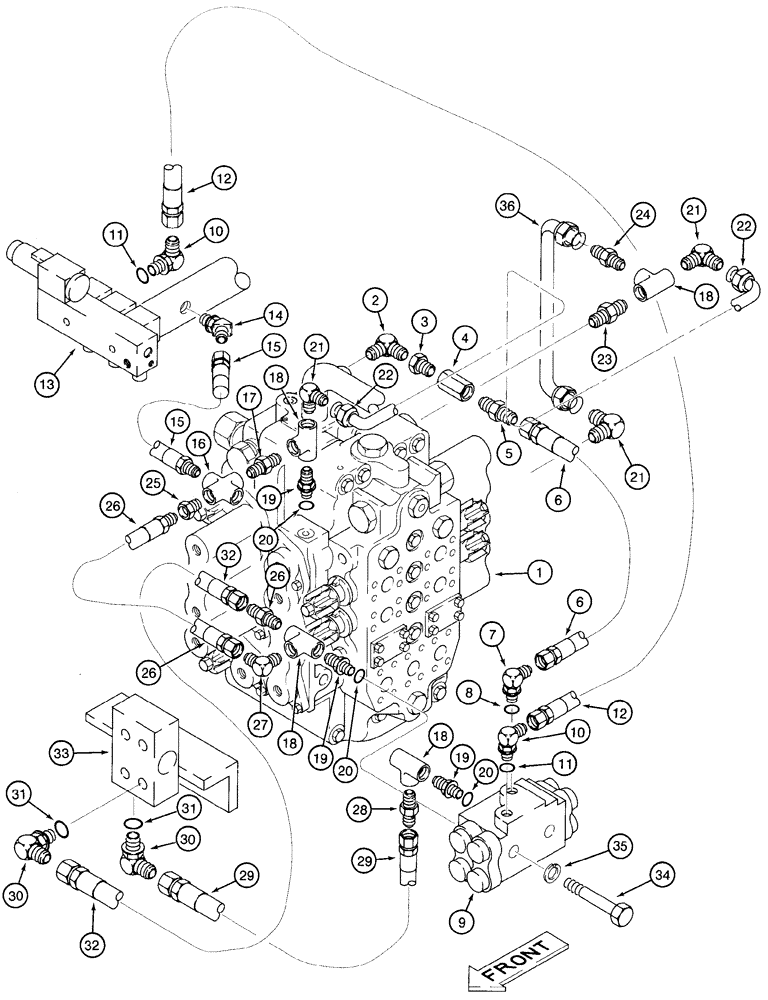

Запчасти Case 9050 (8-36) - HYDRAULIC CONTROL CIRCUIT, CUSHION VALVE HYDRUALICS (08) - HYDRAULICS

1

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72

1шт.

2

153595A1

ELBOW

90°

1шт.

3

153325A1

ORIFICE

BUSHING reducer

1шт.

4

151552A1

FILTER

hydraulic, in-line

1шт.

5

152748A1

ADAPTER

straight

1шт.

6

152612A1

HOSE,95.00 mm ID x 600.00 mm

At cushion valve

1шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90° at cushion valve, Includes: Ref. 8

1шт.

8

154475A1

O-RING

elbow

1шт.

9

153327A1

VALVE, CUSHION

parts list Figure 8-46

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90° hydraulic, Includes: Ref. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

12

152709A1

HOSE,6.4mm ID x 2100mm L

Cushion valve to solenoid

1шт.

13

REF

INSTRUCTION

MANIFOLD and SOLENOID ASSY., see Figure 8-34

1шт.

14

150915A1

ADAPTER

ELBOW 90°

1шт.

15

152505A1

HOSE,127.00 mm ID x 750.00 mm

Pilot return

1шт.

16

150917A1

CROSS

hydraulic

1шт.

17

150867A1

NIPPLE, LUBE

NIPPLE CONNECTOR straight

1шт.

18

153589A1

TEE

hydraulic

4шт.

19

150163A1

NIPPLE, LUBE

NIPPLE ADAPTER straight hydraulic, Includes: Ref. 20

2шт.

20

154475A1

O-RING

adapter

1шт.

21

152630A1

ELBOW

special, 90°

3шт.

22

153131A1

HYD TUBE

hydraulic

1шт.

23

150865A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

24

152600A1

CONNECTOR, ELEC

CONNECTOR straight

1шт.

25

151065A1

BUSHING

reducer

1шт.

26

153336A1

HOSE ASSY.

15-3/4 inch (400 mm) long control valve to cushion valve

1шт.

27

153495A1

ADAPTER

ELBOW 90° hydraulic

1шт.

28

153597A1

ADAPTER

straight hydraulic

2шт.

29

152751A1

HOSE,95.00 mm ID x 1000.00 mm

To boom hold valve

1шт.

30

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90° at boom hold valve, Includes: Ref. 31

2шт.

31

154475A1

O-RING

elbow

1шт.

32

152756A1

HOSE ASSY.

45-1/4 inch (1150 mm) long boom hold valve to cushiion valve

1шт.

33

REF

INSTRUCTION

VALVE ASSY. boom hold, parts list Figure 8-76

1шт.

34

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

35

892-11010

LOCK WASHER,M10

2шт.

36

153119A1

TUBE

TUBE pilot, at control valve

1шт.
