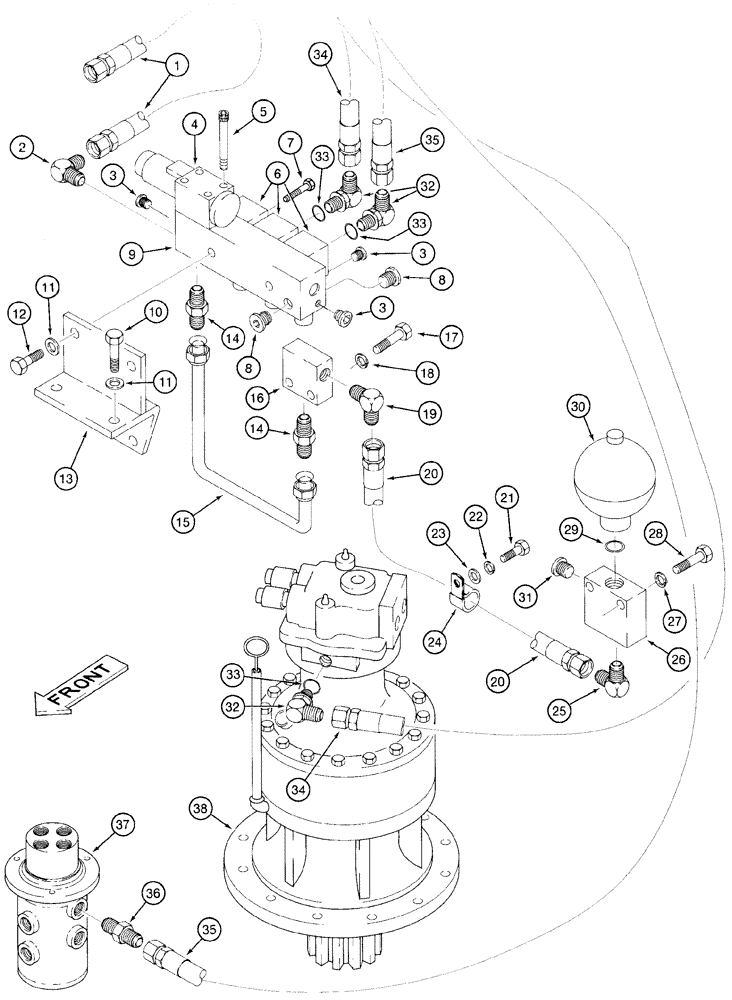

Запчасти Case 9050 (8-34) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT SOLENOIDS AND ACCUMULATOR (08) - HYDRAULICS

1

152799A1

HOSE

21-5/8 inch (550 mm) long pilot line return from manifold

1шт.

2

152749A1

ADAPTER

ELBOW 90°

1шт.

3

151026A1

PLUG

port manifold, small

3шт.

4

150425A1

VALVE

solenoid parts list Figure 8-40, Includes: Ref. 5

1шт.

5

150125A1

BOLT (MACHINE),Hex Skt

hex socket, special solenoid mounting

4шт.

6

151017A1

VALVE

solenoid swing brake and 2-speed travel control, parts list Figure 8-44, Includes: Ref. 7

2шт.

7

861-6045

HEX SOC SCREW,M6 x 45mm, Cl 12.9

hex socket, 6 - 1.0 x 45 mm, class 12.9

2шт.

8

151033A1

PLUG

hex socket, special manifold, large

2шт.

9

152858A1

MANIFOLD

hydraulic at solenoids

1шт.

11

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

13

153324A1

BRACKET

manifold mounting

1шт.

14

156556A1

ADAPTER

straight

2шт.

15

152793A1

HOSE ASSY.

17-3/4 inch (450 mm), Serial Range: long-manifold

1шт.

16

153323A1

MANIFOLD

pilot line, see page 8-33 for related parts

1шт.

17

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

153495A1

ADAPTER

90° hydraulic

1шт.

20

153319A1

HOSE ASSY.

31-1/2 inch (800 mm) long to accumulator manifold

1шт.

21

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

24

150582A1

CLAMP

hose

1шт.

25

153495A1

ADAPTER

90° hydraulic

1шт.

26

150898A1

MANIFOLD

at accumulator

1шт.

27

892-11008

LOCK WASHER,8mm ID

2шт.

28

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

150894A1

ACCUMULATOR

hydraulic, Includes: Ref. 29 & 30

1шт.

29

154486A1

O-RING

accumulator

1шт.

30

NSS

NOT SOLD SEPARAT

ACCUMULATOR hydraulic

1шт.

31

151030A1

PLUG

port at accumulator manifold

1шт.

32

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90° hydraulic, Includes: Ref. 33

3шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

34

152264A1

HOSE,6.3mm ID x 2200mm L

Swing brake release solenoid to swing motor

1шт.

35

153206A2

HOSE 96-1/2 inch (2450 mm) long 2-speed travel control, Serial Range: solenoid-swivel

1шт.

36

153603A1

ADAPTER

straight hydraulic

1шт.

37

REF

INSTRUCTION

SWIVEL ASSY. hydraulic, parts list Figure 6-18

1шт.

38

REF

INSTRUCTION

MOTOR ASSY. swing, parts list Figure 8-56 & 8-62

1шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
