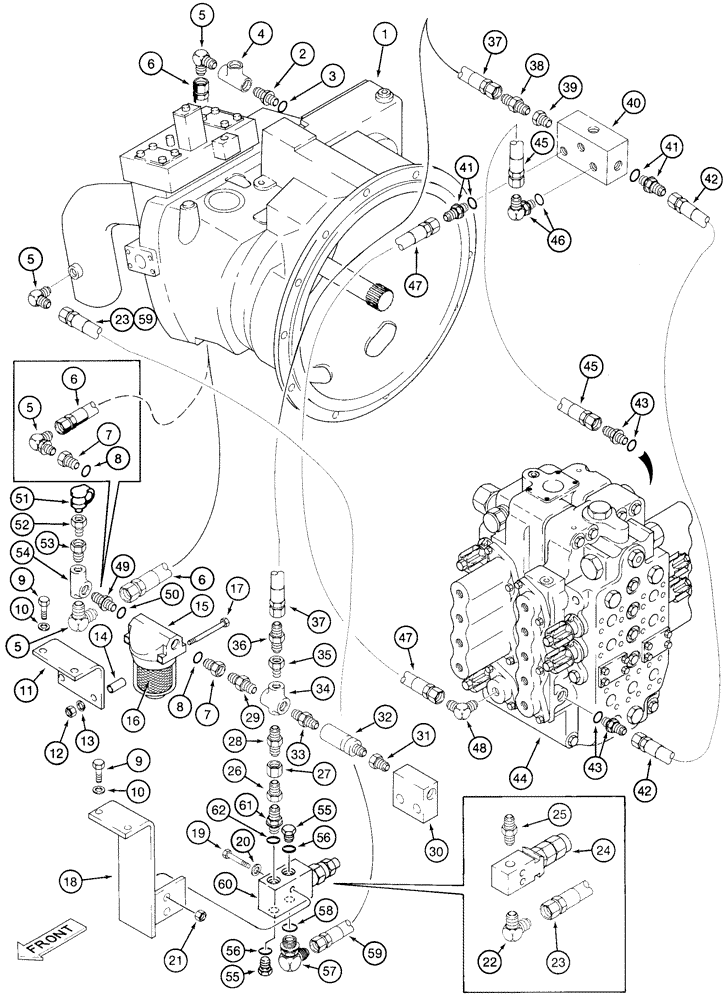

Запчасти Case 9050 (8-32) - HYDRAULIC CONTROL CIRCUIT, PUMP TO PILOT LINE FILTER & CONTROL VALVE, P.I.N. DAC0500101 & AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY. equipment see Figure 8-4

1шт.

2

150167A1

NIPPLE, LUBE

NIPPLE ADAPTER straight, special at pump, Includes: Ref. 3

1шт.

3

154487A1

O-RING

adapter

1шт.

4

150702A1

TEE

special

1шт.

5

150602A1

ADAPTER

ELBOW 90°

3шт.

6

151851A1

HOSE,127.00 mm ID x 1000.00 mm

Pump to pilot line filter

1шт.

7

153414A1

SOCKET

BUSHING reducer, Includes: Ref. 8

2шт.

8

154487A1

O-RING

reducer bushing

1шт.

10

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

153110A1

BRACKET

mounting pilot line filter

1шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

13

892-11006

LOCK WASHER,M6

2шт.

14

150325A1

SPACER

tube, 8 ID x 13.8 OD x 10.35 mm, Serial Range: long-bracket

2шт.

15

153168A1

FILTER

hydraulic, Includes: Ref. 16, 16A & 16B

1шт.

16

153233A1

HYDRAULIC OIL FILTER

pilot line

1шт.

16a

154623A1

O-RING

filter body to head, not shown

1шт.

16b

154074A1

BACK-UP RING

filter body to head, not shown

1шт.

17

153231A1

SPECIAL BOLT,High Strength, Hex, M6 x 80mm

hex, filter mounting

2шт.

18

153260A1

BRACKET

mounting pilot relief valve

1шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

20

153081A1

WASHER

flat, special

2шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

22

152419A1

ELBOW

90°, Serial Range: -DAC0500101

1шт.

23

153262A1

HOSE

21-5/8 inch (550 mm) long pilot relief valve to equipment pump, Serial Range: -DAC0500101

1шт.

24

153266A1

VALVE, PRESSURE RELI

EF pilot, Serial Range: -DAC0500101

1шт.

25

153216A1

ADAPTER

straight, Serial Range: -DAC0500101

1шт.

26

152006A1

SLEEVE

hydraulic

1шт.

27

151973A1

TUBE NUT

hex hydraulic fitting

1шт.

28

151672A1

MULTIPOLE CONNECTOR

hydraulic straight

1шт.

29

150850A1

NIPPLE, LUBE

NIPPLE BUSHING reducer

1шт.

30

153323A1

MANIFOLD

pilot line see Figure 8-34 for related parts

1шт.

31

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

32

152937A1

VALVE, CHECK

1шт.

33

150867A1

NIPPLE, LUBE

NIPPLE CONNECTOR straight

1шт.

34

150917A1

CROSS

hydraulic

1шт.

35

151063A1

BUSHING

reducer

1шт.

36

153603A1

ADAPTER

straight hydraulic

2шт.

37

152517A1

HOSE,63mm ID x 1100mm L

Pilot filter and relief to valve

1шт.

38

150693A1

FITTING

straight

1шт.

39

153306A1

ORIFICE

special

1шт.

40

156558A1

MANIFOLD

hydraulic, see page 8-31 for mounting hardware

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, includes 154467A1 O-ring

2шт.

42

153342A1

HOSE ASSY.

35-7/16 inch (900 mm) long manifold to control valve

1шт.

43

156557A1

ADAPTER

straight, includes 154475A1 O-ring

2шт.

44

153350A1

VALVE, CONTROL

hydraulic, parts list Figure 8-64 - 8-72

1шт.

45

153229A1

HOSE

11-13/16 inch (300 mm) long, Serial Range: manifold-valve

1шт.

46

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90°, includes 154467A1 O-ring

1шт.

47

152775A1

HOSE ASSY.

19-3/4 inch (500 mm) long manifold to control valve

1шт.

48

153596A1

ADAPTER

ELBOW 90°

1шт.

49

150167A1

NIPPLE, LUBE

NIPPLE ADAPTER straight, special, Includes: Ref. 50

1шт.

50

154487A1

O-RING

adapter

1шт.

51

S243647

COUPLING

quick disconnect Replaces: 150290A1 plug

1шт.

52

150499A1

BUSHING

ADAPTER straight 9/16 inch female straight thread x 3/8 inch PT

1шт.

53

151065A1

BUSHING

reducer

1шт.

54

157759A1

TEE

hydraulic

1шт.

55

159002A1

PLUG

port, Includes: Ref. 56, Start Serial: DAC0500101

2шт.

56

154487A1

O-RING

port plug, Start Serial: DAC0500101

1шт.

57

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

90°, Includes: Ref. 58, Start Serial: DAC0500101

1шт.

58

154487A1

O-RING

elbow, Start Serial: DAC0500101

1шт.

59

163110A1

HYDRAULIC HOSE,12.70 mm ID x 550.00 mm

Pilot relief valve to equipment pump, Start Serial: DAC0500101

1шт.

60

160387A1

VALVE

pilot relief, Start Serial: DAC0500101

1шт.

61

160390A1

ADAPTER

straight, Start Serial: DAC0500101

1шт.

62

154487A1

O-RING

adapter, Start Serial: DAC0500101

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
