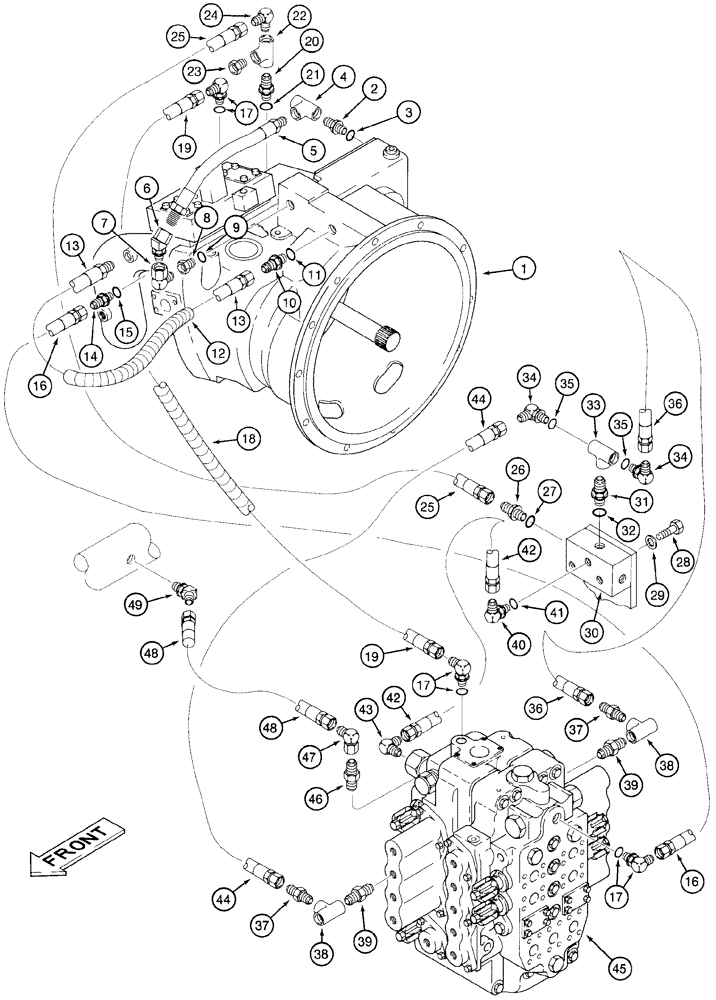

Запчасти Case 9050 (8-30) - HYDRAULIC CONTROL CIRCUIT, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY. equipment see Figure 8-4

1шт.

2

150167A1

NIPPLE, LUBE

NIPPLE straight, special at valve, Includes: Ref. 3

1шт.

3

154487A1

O-RING

adapter

1шт.

4

150702A1

TEE

special

1шт.

5

153275A1

HOSE

14-9/16 inch (370 mm) long pilot at pump

1шт.

6

153488A1

ADAPTER

45° hydraulic

1шт.

7

153595A1

ELBOW

90°

1шт.

8

153413A1

SOCKET

REDUCER special, Includes: Ref. 9

1шт.

9

154475A1

O-RING

reducer

1шт.

10

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight hydraulic, Includes: Ref. 11

1шт.

11

154503A1

O-RING

adapter

1шт.

12

150992A1

TUBE,28 mm ID, 34 mm OD, 300 mm Length

GUARD hose

1шт.

13

152853A1

HOSE ASSY.

31-1/2 inch (800 mm) long pump pilot

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight hydraulic, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

16

152709A1

HOSE,6.4mm ID x 2100mm L

Pump to control valve

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90° hydraulic, includes 154467A1 O-ring

3шт.

18

152660A1

PLASTIC-RUBBER TUBE

GUARD hose

1шт.

19

152773A1

HOSE ASSY.

72-13/16 inch (1850 mm) long pump to top of control valve

1шт.

20

152899A1

HYD CONNECTOR

straight hydraulic, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.

22

152135A1

TEE

hydraulic

1шт.

23

151055A1

BUSHING

reducer

1шт.

24

153596A1

ADAPTER

ELBOW 90° hydraulic

1шт.

25

153483A1

HOSE ASSY.

57 inch (1450 mm) long, Serial Range: pump-valve

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight hydraulic, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

29

150811A1

WASHER

flat, special, 12 mm

2шт.

30

156558A1

MANIFOLD

hydraulic

1шт.

31

150163A1

NIPPLE, LUBE

NIPPLE straight, Includes: Ref. 32

1шт.

32

154475A1

O-RING

adapter

1шт.

33

153374A1

SHUT-OFF VALVE

shuttle

1шт.

34

156554A1

ELBOW

90°, special, Includes: Ref. 35

2шт.

35

154475A1

O-RING

elbow

1шт.

36

153229A1

HOSE

11-13/16 inch (300 mm) long shuttle valve to control valve

1шт.

37

153603A1

ADAPTER

straight

2шт.

38

153598A1

TEE

special

2шт.

39

150865A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

2шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90°, Includes: Ref. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

42

156735A1

HOSE,6.3 mm ID x 350.00 mm

13-3/4 inch (350 mm) long to valve

1шт.

43

153596A1

ADAPTER

90°

1шт.

44

152512A1

HOSE ASSY.

27-9/16 inch (700 mm) long shuttle valve to control valve

1шт.

45

153350A1

VALVE, CONTROL

ASSY. hydraulic, parts list Figures 8-65 - 8-73

1шт.

46

153632A1

PIPE

CONNECTOR straight

1шт.

47

152943A1

ELBOW

90°

1шт.

48

150983A1

HOSE ASSY.

17-3/4 inch (450 mm) long valve, Serial Range: return-tank

1шт.

49

153599A1

ADAPTER

45°

1шт.
