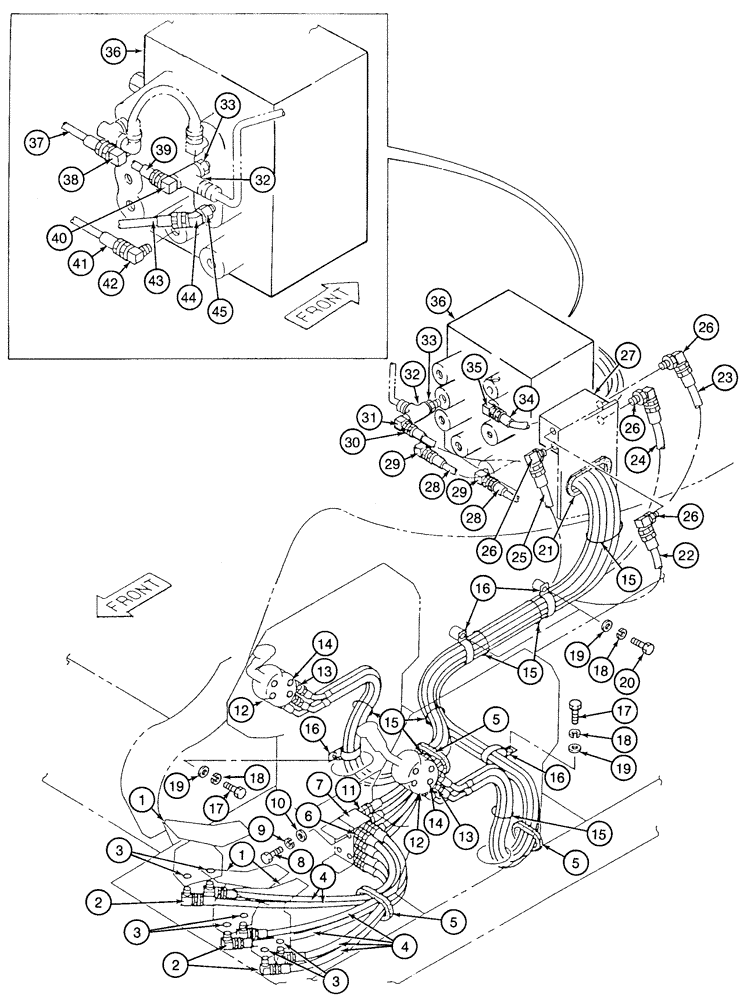

Запчасти Case 9050 (8-28) - HYDRAULIC CONTROL CIRCUIT, FOOT AND HAND CONTROLS TO CONTROL VALVE (08) - HYDRAULICS

1

153090A1

VALVE

parts list Figure 8-50

3шт.

2

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90° hydraulic, Includes: Ref. 3

6шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

4

152514A1

HOSE,63mm ID x 1000mm L

To shuttle valve

6шт.

5

152619A1

GROMMET

rubber

3шт.

6

153603A1

ADAPTER

straight hydraulic

6шт.

7

152744A1

SHUT-OFF VALVE

shuttle, parts list Figure 8-52

1шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

4шт.

9

892-11008

LOCK WASHER,8mm ID

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

152748A1

ADAPTER

straight

4шт.

12

153316A1

VALVE

remote control, parts list Figure 8-48

2шт.

13

152747A1

ADAPTER

straight hydraulic, Includes: Ref. 14

8шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

15

150071A1

MOUNTING CLIP

STRAP tie, 365 mm long

1шт.

16

152762A1

CLAMP

hose

6шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

18

892-11010

LOCK WASHER,M10

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

21

152644A1

GROMMET

rubber

1шт.

22

153210A1

HOSE

165-3/8 inch (4200 mm) long, to upper front port of cushion valve

1шт.

23

153207A1

HOSE

145-5/8 inch (3700 mm) long, to upper rear port of cushion valve

1шт.

24

153509A1

HOSE

118-1/4 inch (3000 mm) long, to lower rear port of cushion valve

1шт.

25

152985A1

HOSE

110-1/4 inch (2800 mm) long, to lower front port of cushion valve

1шт.

26

153526A1

ELBOW

special hydraulic,90°

4шт.

27

153327A1

VALVE, CUSHION

parts list Figure 8-46

1шт.

28

152767A1

HOSE ASSY.

98-7/16 inch (2500 mm) long pilot control, valve front travel port

2шт.

29

152749A1

ADAPTER

ELBOW 90°

2шт.

30

152901A1

HOSE

134 inch (3400 mm) long pilot control, valve front swing port

1шт.

31

153495A1

ADAPTER

ELBOW 90° hydraulic

1шт.

32

153598A1

TEE

special

2шт.

33

150865A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

2шт.

34

153207A1

HOSE

145-5/8 inch (3700 mm) long pilot control, valve front bucket port

1шт.

35

152749A1

ADAPTER

ELBOW 90°

1шт.

36

153350A1

VALVE, CONTROL

hydraulic, parts list Figures 8-64 - 8-72

1шт.

37

152988A1

HOSE

126 inch (3200 mm) long pilot control, valve rear bucket port

1шт.

38

152749A1

ADAPTER

ELBOW 90°

1шт.

39

152988A1

HOSE

126 inch (3200 mm) long pilot control, valve rear swing port

1шт.

40

153495A1

ADAPTER

ELBOW 90° hydraulic

1шт.

41

152771A1

HOSE ASSY.

118-1/8 inch (3000 mm) long pilot control, valve rear travel port

1шт.

42

152749A1

ADAPTER

ELBOW 90°

1шт.

43

152777A1

HOSE ASSY.

126 inch (3200 mm) long pilot control, valve rear travel port

1шт.

44

153488A1

ADAPTER

ELBOW 45° hydraulic

1шт.

45

152030A1

BUSHING

reducer

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
