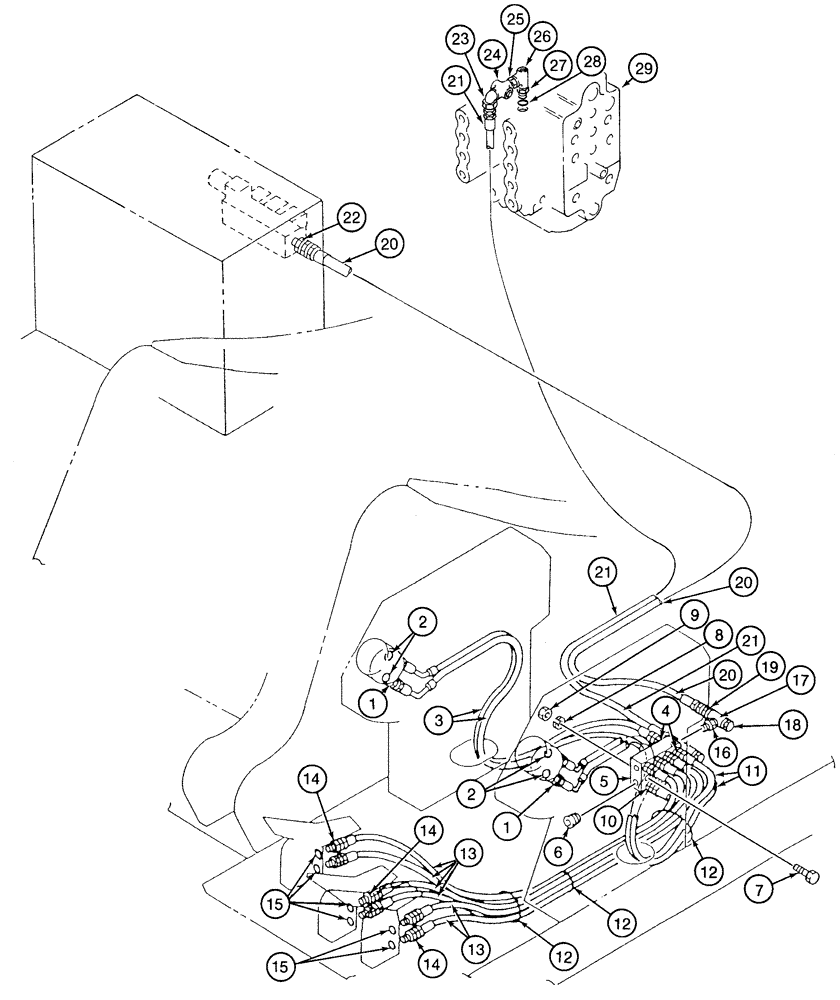

Запчасти Case 9050 (8-26) - HYDRAULIC CONTROL CIRCUIT, PRESSURE AND RETURN LINES FOR FOOT AND HAND CONTROLS (08) - HYDRAULICS

1

152747A1

ADAPTER

straight hydraulic, Includes: Ref. 2

4шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

153513A1

HOSE

supply and return, right-hand controller, 67 inch (1700 mm) long

2шт.

4

152748A1

ADAPTER

straight

4шт.

5

152457A1

MANIFOLD

hydraulic controller valve hoses

1шт.

6

151033A1

PLUG

hex socket, special manifold

2шт.

7

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

2шт.

8

892-11012

LOCK WASHER,M12

2шт.

9

829-1412

NUT,M12, Cl 10.9

2шт.

10

153603A1

ADAPTER

straight hydraulic

6шт.

11

152958A1

HOSE

63 inch (1600 mm) long, to left-hand controller

2шт.

12

150071A1

MOUNTING CLIP

STRAP tie, 365 mm long

1шт.

13

153483A1

HOSE ASSY.

57 inch (1450 mm), Serial Range: long,-manifold

6шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight hydraulic, Includes: Ref. 15

6шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

16

150850A1

NIPPLE, LUBE

NIPPLE BUSHING reducer, straight

2шт.

17

151809A1

TEE

hydraulic

2шт.

18

150999A1

PLUG

hex

2шт.

19

150073A1

ADAPTER

straight

2шт.

20

153318A1

HOSE

134 inch (3400 mm) long, to solenoid manifold

1шт.

21

156939A1

HOSE

92-1/2 inch (2350 mm) long, to control valve

1шт.

22

150073A1

ADAPTER

straight, to solenoid manifold

1шт.

23

150602A1

ADAPTER

90° elbow

1шт.

24

150917A1

CROSS

hydraulic

1шт.

25

150867A1

NIPPLE, LUBE

NIPPLE CONNECTOR straight

1шт.

26

153589A1

TEE

hydraulic

1шт.

27

150163A1

NIPPLE, LUBE

NIPPLE straight hydraulic, Includes: Ref. 28

1шт.

28

154475A1

O-RING

adapter

1шт.

29

153350A1

VALVE, CONTROL

hydraulic control, parts list Figures 8-64 - 8-72

1шт.
