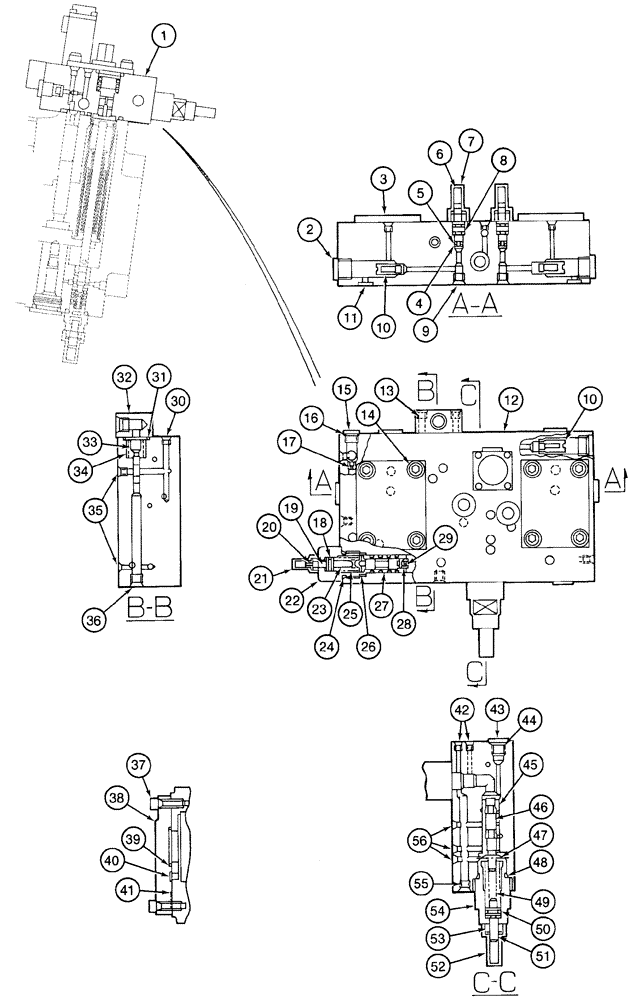

Запчасти Case 9050 (8-20) - 153315A1 AND 160660A1 EQUIPMENT PUMPS, CONTROL ASSEMBLY (08) - HYDRAULICS

153315A1

PUMP, HYDRAULIC

equipment, parts list Figures 8-14 - 8-20, Includes: Ref. 1 - 56, Serial Range: -DAC0500117

1шт.

160660A1

PUMP

equipment, parts list Figures 8-14 - 8-20, Includes: Ref. 1 - 56, Start Serial: DAC0500117

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE, equipment pump, Includes: Ref. 2 - 56

1шт.

Ref. #1 control assy (valve assy) has a Case part number assigned to it now. Order 164911A1 valve assy. NAPO Tech Support 8/20/99.

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG port

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE cover

2шт.

4

154443A1

O-RING

flow adjuster

2шт.

5

153937A1

BACK-UP RING

adjuster seal

2шт.

6

829-1308

NUT,M8, Cl 10

2шт.

7

156363A1

CAP

adjuster

2шт.

8

164866A1

SCREW

adjusting

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

10

155352A1

FILTER CARTRIDGE

3шт.

11

155206A1

O-RING

port

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING control

1шт.

13

NSS

NOT SOLD SEPARAT

BOLT hex socket, special

2шт.

14

NSS

NOT SOLD SEPARAT

BOLT hex socket, 10 - 1.5 x 80 mm, class 12.9

8шт.

15

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING orifice

1шт.

18

155086A1

O-RING

spring seat

1шт.

19

829-1306

NUT,M6, Cl 10

1шт.

20

878-50625

SET SCREW,Hex Skt, M6 x 20mm, Dog Pt

hex socket, dog point, 6 - 1.0 x 25 mm

1шт.

21

156361A1

CAP

relief

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE relief

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

24

154495A1

O-RING

relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE relief

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL relief

1шт.

29

NSS

NOT SOLD SEPARAT

FITTING orifice

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING spool cover

1шт.

32

NSS

NOT SOLD SEPARAT

COVER spool

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL relief

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

35

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

37

NSS

NOT SOLD SEPARAT

BOLT hex socket, 10 - 1.5 x 30 mm, class 12.9

2шт.

38

NSS

NOT SOLD SEPARAT

PLATE access

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING plate, large

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING plate, small

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING plate, medium

1шт.

42

NSS

NOT SOLD SEPARAT

PLUG port

3шт.

43

NSS

NOT SOLD SEPARAT

PLUG port

3шт.

44

NSS

NOT SOLD SEPARAT

O-RING port plug

3шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE spool

1шт.

46

NSS

NOT SOLD SEPARAT

SPOOL relief

1шт.

47

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

48

154508A1

O-RING

relief body

1шт.

49

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

50

155189A1

O-RING

adjuster

1шт.

51

164863A1

SCREW

adjuster

1шт.

52

156362A1

CAP

relief

1шт.

53

156202A1

LOCK NUT

spring tension

1шт.

54

NSS

NOT SOLD SEPARAT

GUIDE relief

1шт.

55

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

56

NSS

NOT SOLD SEPARAT

PLUG port

1шт.
