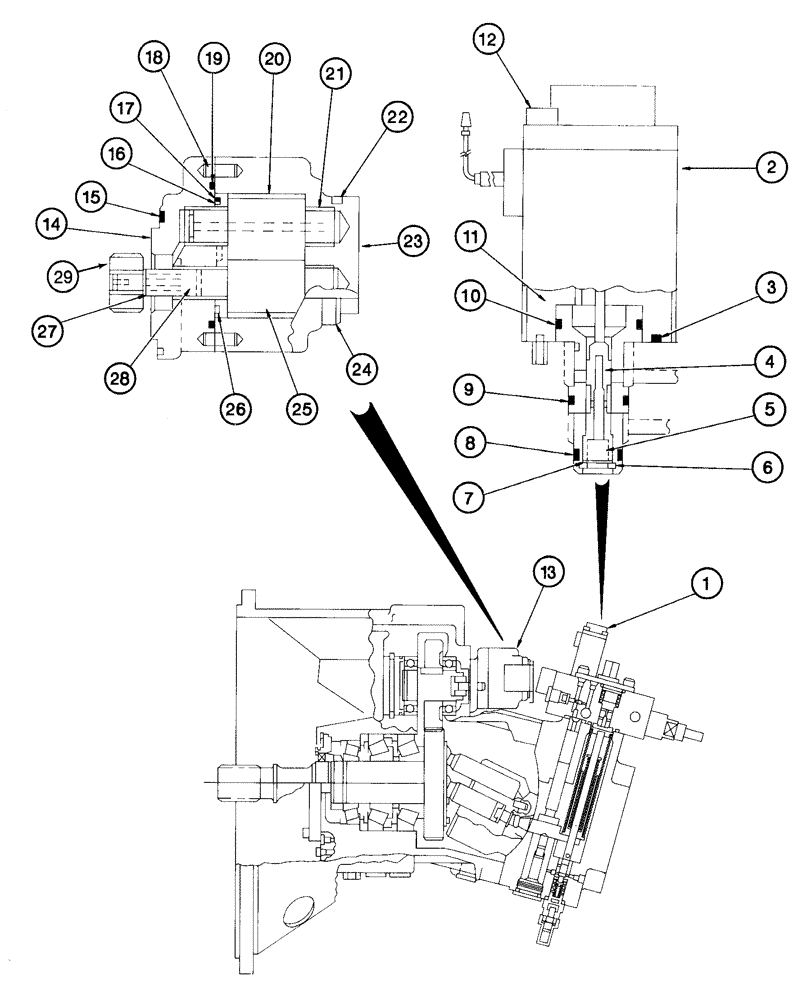

Запчасти Case 9050 (8-18) - 153315A1 & 160660A1 EQUIPMENT PUMPS, PRESSURE REDUCING VALVE AND PILOT GEAR PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
153315A1
PUMP, HYDRAULIC
equipment, parts list Figures 8-14 - 8-20, Serial Range: -DAC0500117
1шт.
160660A1
PUMP
equipment, parts list Figures 8-14 - 8-20, Start Serial: DAC0500117
1шт.
1
155837A1
SOLENOID
VALVE, pressure reducing, 153315A1 pump only, Includes: Ref. 2 - 12
1шт.
1
164833A1
VALVE
pressure reducing 160660A1 pump only, valve, Includes: Ref. 2 - 12
1шт.
2
NSS
NOT SOLD SEPARAT
SOLENOID pressure reducing valve
1шт.
3
155188A1
O-RING
solenoid to regulator cover, pressure reducing valve
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON valve, pressure reducing valve
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING piston return, pressure reducing valve
1шт.
6
NSS
NOT SOLD SEPARAT
RING retaining, pressure reducing valve
1шт.
7
NSS
NOT SOLD SEPARAT
WASHER flat, 3.2 x 7 x 0.5 mm, pressure reducing valve
1шт.
8
155202A1
O-RING
inner, pressure reducing valve
1шт.
9
155203A1
O-RING
center, pressure reducing valve
1шт.
10
155187A1
O-RING
outer stem, pressure reducing valve
1шт.
11
NSS
NOT SOLD SEPARAT
BODY valve, pressure reducing
1шт.
12
NSS
NOT SOLD SEPARAT
BOLT hex socket, special, solenoid mounting, pressure reducing valve
4шт.
13
155834A1
PUMP, HYDRAULIC
pilot gear, pump, Includes: Ref. 14 - 27
1шт.
14
NSS
NOT SOLD SEPARAT
COVER shaft end, pilot gear pump
1шт.
15
155193A1
O-RING
pilot gear cover to equipment pump housing
1шт.
16
NSS
NOT SOLD SEPARAT
RING backup, pilot gear pump
1шт.
17
NSS
NOT SOLD SEPARAT
RING seal, pilot gear pump
1шт.
18
837-5010
DOWEL,M5 x 10
dowel, hardened, 5 x 10 mm, pilot gear pump
2шт.
19
155194A1
O-RING
cover to body, pilot gear pump
1шт.
20
NSS
NOT SOLD SEPARAT
GEAR drive, pilot gear pump
1шт.
21
NSS
NOT SOLD SEPARAT
BUSHING gear shaft, pilot gear pump
4шт.
22
NSS
NOT SOLD SEPARAT
PLUG housing port, pilot gear pump
1шт.
23
NSS
NOT SOLD SEPARAT
HOUSING pilot gear pump
1шт.
24
863-8065
HEX SOC SCREW,M8 x 65mm, Cl 12.9
hex socket, 8 - 1.25 x 65 mm, class 12.9, pilot gear pump
4шт.
25
NSS
NOT SOLD SEPARAT
GEAR drive, pilot gear pump
1шт.
26
NSS
NOT SOLD SEPARAT
PLATE thrust, pilot gear pump
1шт.
27
800-1114
SNAP RING,M14, Ext
external retaining, No. 14, pilot gear pump
1шт.
28
861-8020
HEX SOC SCREW,M8 x 20mm, Cl 12.9
Pilot gear pump
2шт.
29
155258A1
COUPLING
pilot gear pump
1шт.
Выбрано товаров: 32
