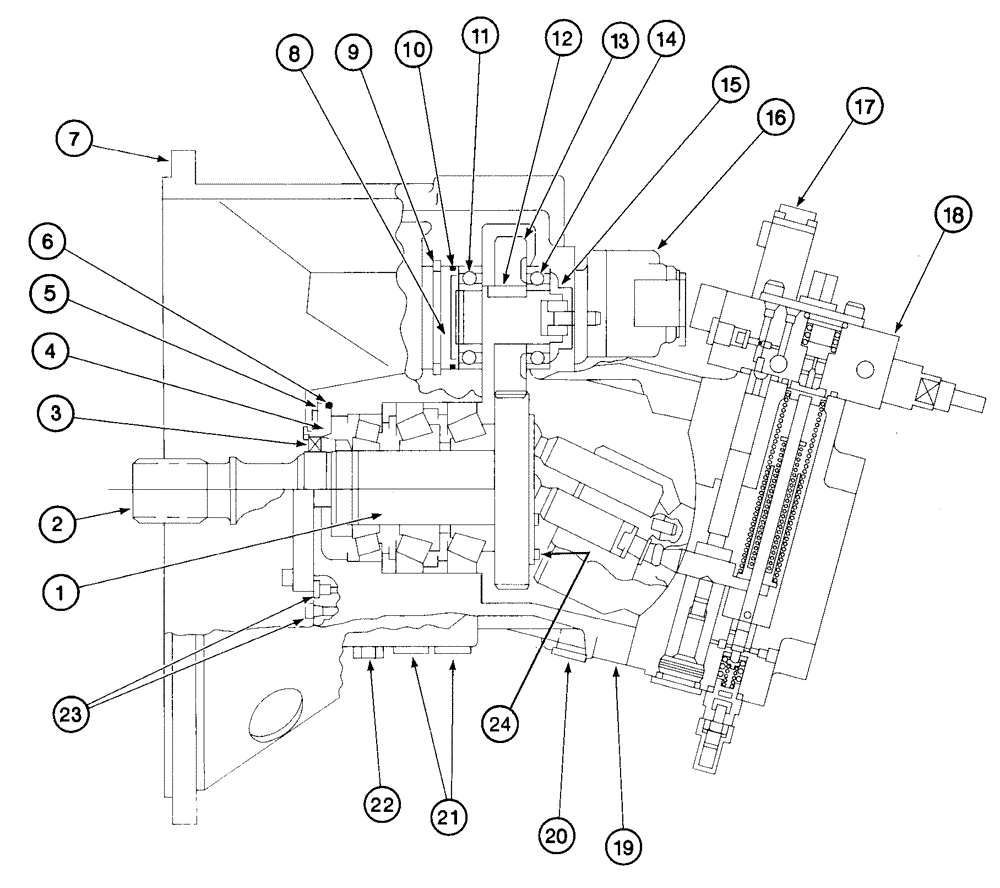

Запчасти Case 9050 (8-14) - 153315A1 AND 160660A1 EQUIPMENT PUMPS, PUMP DRIVE (08) - HYDRAULICS

153315A1

PUMP, HYDRAULIC

equipment, parts list Figures 8-14 - 8-22, Includes: Ref. 1 - 24, Serial Range: -DAC0500117

1шт.

160660A1

PUMP

equipment, parts list Figures 8-14 - 8-22, Includes: Ref. 1 - 24, Start Serial: DAC0500117

1шт.

1

NSS

NOT SOLD SEPARAT

ROTARY ASSY. idler side, includes shaft, nut, 2 bearings, spacer, shims, 7 pistons, 7 rings, cylinder block, control plate, retainer, 4 springs, center pin, 14, set screws and separation plate

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT pump 153315A1 pump only

1шт.

2

164809A1

SHAFT

pump 160660A1 pump only

1шт.

3

155111A1

OIL SEAL

oil shaft

1шт.

4

156354A1

PLATE

COVER oil seal

1шт.

5

800-21110

SNAP RING,M110, Int

internal retaining, No. 110

1шт.

6

154787A1

O-RING

cover

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE end pilot gear pump drive

1шт.

9

NSS

NOT SOLD SEPARAT

RING internal retaining No. 85

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING end plate

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING shaft inner

1шт.

12

NSS

NOT SOLD SEPARAT

KEY shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR transfer pilot gear pump

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING shaft outer

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT drive pilot gear pump

1шт.

16

REF

INSTRUCTION

PUMP ASSY. pilot gear parts list Figure 8-18

1шт.

17

REF

INSTRUCTION

VALVE ASSY. pressure reducing, parts list Figure 8-18

1шт.

18

REF

INSTRUCTION

CONTROL ASSY. pump, parts list Figures 8-20 & 8-22

1шт.

19

155303A1

PACKING

pump

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG port

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG port

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG port

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG port

2шт.

24

163572A1

SCREW

special

28шт.
