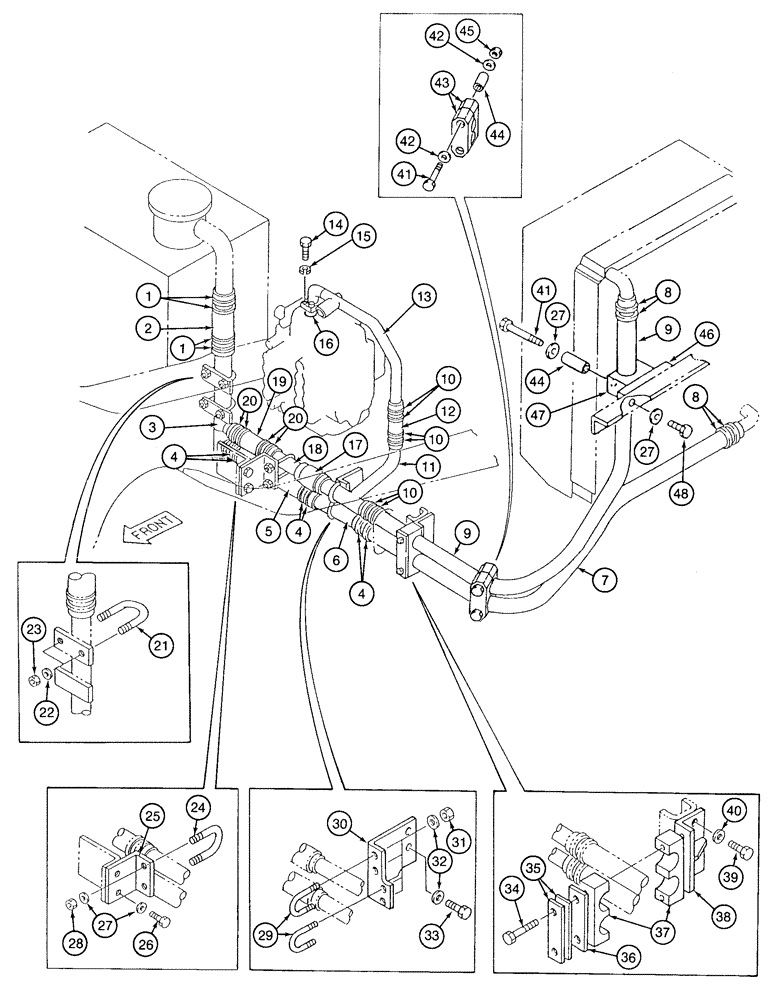

Запчасти Case 9050 (8-12) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

1

150893A1

CLAMP

adjustable

4шт.

2

152894A1

HOSE

cooler line, at hyudraulic tank

1шт.

3

153196A1

HYD TUBE,60.5 mm ID, 75 mm OD, 511 mm Length

hydraulic oil to radiator, at tank

1шт.

4

150890A1

CLIP,ELECTRICAL

adjustable

6шт.

5

152783A1

HYDRAULIC HOSE,48.50 mm ID x 620.00 mm

Cooler line, to radiator

1шт.

6

153366A1

TUBE,48.6 mm OD, 400 mm Length

cooler line to radiator

1шт.

7

153066A1

HOSE

67 inch (1700 mm) long cooler line, at radiator

1шт.

8

150890A1

CLIP,ELECTRICAL

adjustable

4шт.

9

156560A1

HOSE,48.5 mm ID x 1900.00 mm

74-3/4 inch (1900 mm) long cooler return to tank, at radiator

1шт.

10

150890A1

CLIP,ELECTRICAL

adjustable

6шт.

11

153193A1

TUBE

cooler return with tee for control valve return

1шт.

12

153385A1

HOSE

7-7/8 inch (200 mm) long

1шт.

13

153192A1

TUBE

return to tank, at control valve

1шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

154607A1

O-RING

control valve return

1шт.

17

153460A1

VALVE

check cooler line return

1шт.

18

153194A1

TUBE,48.6 mm OD, 381 mm Length

cooler line return check valve to tank

1шт.

19

153385A1

HOSE

7-7/8 inch (200 mm) long

1шт.

20

150890A1

CLIP,ELECTRICAL

adjustable

4шт.

21

152070A1

U-BOLT,M10 x 74mm W x 86mm L

BOLT "U" tube mounting

2шт.

22

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

24

152067A1

U-BOLT,M10 x 62mm W x 74mm L

BOLT "U" tube mounting

1шт.

25

153195A1

BRACKET

tube support

1шт.

27

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

8шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

29

152067A1

U-BOLT,M10 x 62mm W x 74mm L

BOLT "U" tube mounting

2шт.

30

153361A1

BRACKET

tube mounting

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

32

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

6шт.

34

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

35

153358A1

SPACER

hose clamp

1шт.

36

153363A1

PLATE

hose clamp support

1шт.

37

153364A1

HOSE CLAMP

2шт.

38

153362A1

BRACKET

support hose clamp

1шт.

40

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

41

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

42

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

43

157836A1

CLAMP

hose

2шт.

44

152895A1

SPACER

clamp

4шт.

45

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

46

157809A1

BLOCK

CLAMP hose

1шт.

47

157810A1

HOSE CLAMP

1шт.

48

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

26

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

33

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

39

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
