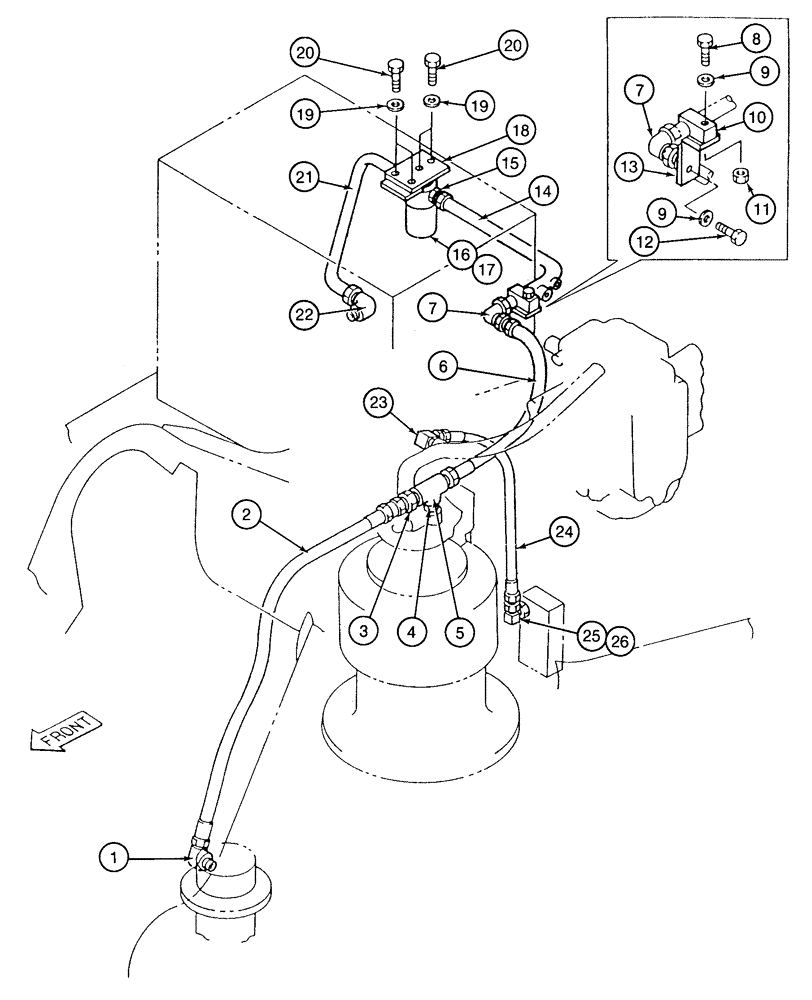

Запчасти Case 9050 (8-10) - BASIC HYDRAULIC CIRCUIT, RETURN LINES TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

153438A1

ELBOW

90°, special at hydraulic swivel

1шт.

2

153244A1

HOSE ASSY.

hydraulic return, swivel to filter, 44-7/8 inch (1140 mm) long

1шт.

3

150720A1

ADAPTER

straight, special

1шт.

4

150167A1

NIPPLE, LUBE

NIPPLE straight, special tee to swing motor

1шт.

5

153243A1

TEE

at swing motor

1шт.

6

153292A1

HOSE ASSY.

45-5/8 inch (1160 mm) long, swing, Serial Range: motor-filter

1шт.

7

151398A1

ELBOW

90°

1шт.

8

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

9

150811A1

WASHER

flat, special, 12 mm

3шт.

10

152674A1

SPECIAL CLAMP

tube

1шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

12

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

13

153199A1

BRACKET

tube support

1шт.

14

153198A1

TUBE,542, 250 mm Length

return line at filter

1шт.

15

151680A1

CONNECTOR, ELEC

CONNECTOR straight, Serial Range: tube-filter

1шт.

16

150792A1

FILTER ASSY

oil, Includes: Ref. 17

1шт.

17

150794A1

HYDRAULIC OIL FILTER

ELEMENT

1шт.

18

153317A1

BRACKET

filter mounting

1шт.

19

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

20

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

21

153200A1

TUBE

return line, Serial Range: filter-reservoir

1шт.

22

151742A1

ELBOW

90°, at reservoir

1шт.

23

150602A1

ADAPTER

90° elbow

1шт.

24

152628A1

HOSE ASSY.

return, boom holding valve

1шт.

25

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

90°, Includes: Ref. 26

1шт.

26

154487A1

O-RING

elbow

1шт.
