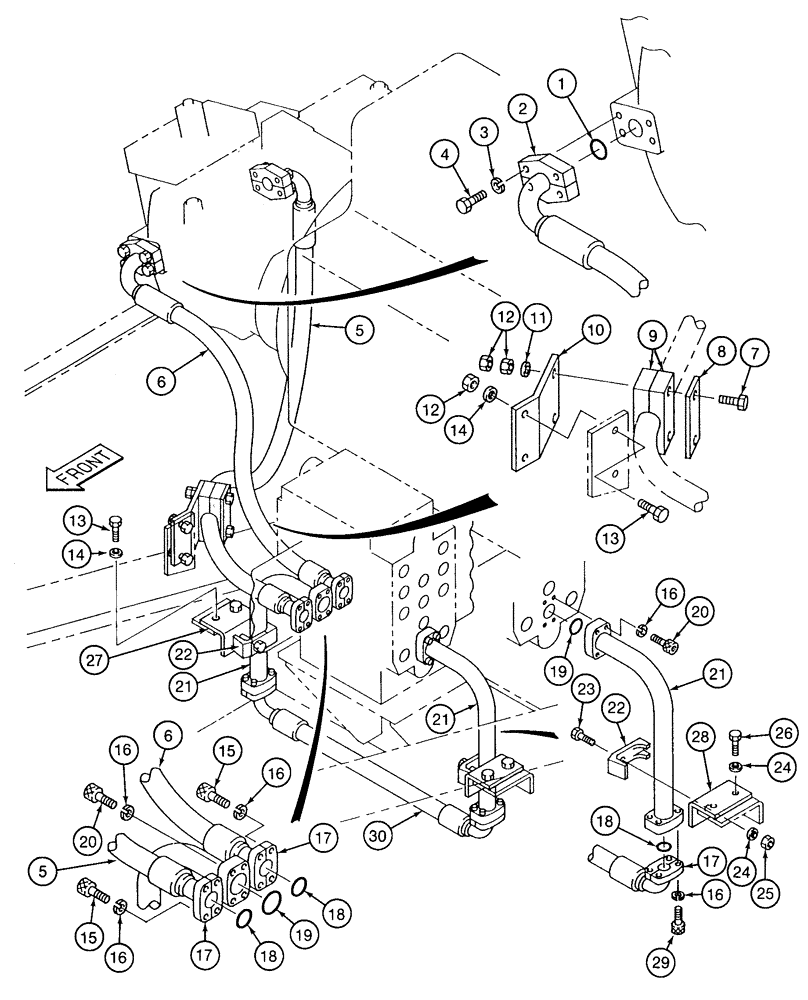

Запчасти Case 9050 (8-08) - BASIC HYDRAULIC CIRCUIT, PUMP TO VALVE (08) - HYDRAULICS

1

153626A1

O-RING

pressure line hose at pump

2шт.

2

150124A1

FLANGE

split

4шт.

3

153623A1

SPRING WASHER

lock, special

8шт.

4

150245A1

SPECIAL BOLT,Hex, M14 x 50mm

hex

8шт.

5

153258A1

HOSE ASSY.

80-3/4 inch (2050 mm) long front of, Serial Range: pump-valve

1шт.

6

153259A1

HOSE ASSY.

45-1/4 inch (1150 mm) long rear of, Serial Range: pump-valve

1шт.

7

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

8

153100A1

PLATE

retaining hose clamp

1шт.

9

153102A1

HOSE CLAMP

2шт.

10

153104A1

BRACKET

hose clamp mounting

1шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

14

150988A1

WASHER

flat, special 12 mm

2шт.

15

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

16

112310A1

WASHER

lock, special

24шт.

17

153459A1

FLANGE

split

8шт.

18

162246A1

O-RING

at valve

4шт.

19

154548A1

O-RING

at valve

2шт.

20

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

hex socket 10 - 1.5 x 35 mm, class 12.9

8шт.

21

153177A1

TUBE,34 mm OD, 325, 198 mm Length

pressure transfer at valve

2шт.

22

152974A1

COLLAR

tube

2шт.

23

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

24

150988A1

WASHER

flat, special 12 mm

6шт.

25

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

27

153022A1

BRACKET

tube, right-hand side

1шт.

28

157796A1

SUPPORT

tube, left-hand side

1шт.

29

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

30

153024A1

HOSE ASSY.

27-1/2 inch (700 mm) long pressure transfer, at valve

1шт.
