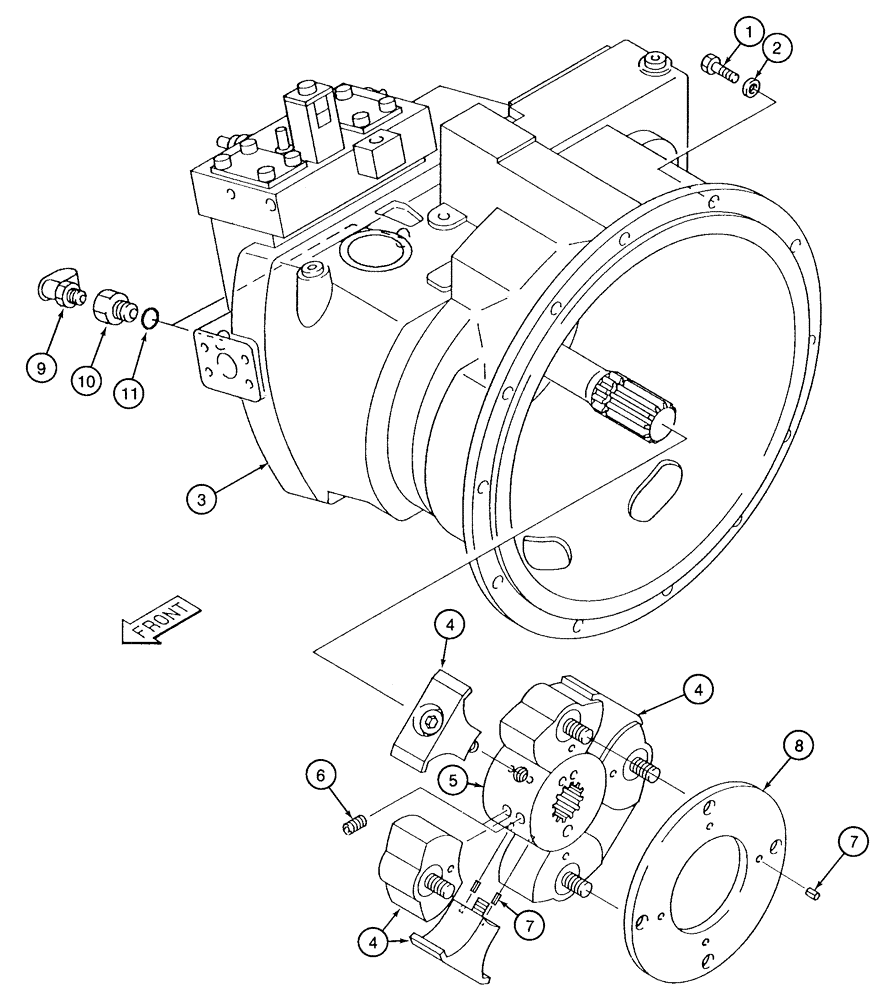

Запчасти Case 9050 (8-04) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

153268A1

BOLT,Spcl, Hex, M10 x 40mm

hex, special

12шт.

2

150811A1

WASHER

flat, special 12 mm was 150988A1

12шт.

3

153315A1

PUMP, HYDRAULIC

equipment, parts list Figures 8-14 - 8-22, Serial Range: -DAC0500117

1шт.

3

160660A1

PUMP

equipment, parts list Figures 8-14 - 8-22, Start Serial: DAC0500117

1шт.

4

153028A1

COUPLING

pump

1шт.

5

153029A1

HUB

coupling

1шт.

6

877-52030

SET SCREW,Hex Skt, M20 x 30mm, Dog Pt

set, hex socket 20 - 2.8 x 30 mm, dog point

2шт.

7

738-1816

LOCK PIN,M8 x 16, Slotted

roll 8 x 16 mm

12шт.

8

153335A1

FLANGE

coupling

1шт.

9

S243647

COUPLING

quick disconnect replaces 150290A1 plug

1шт.

10

151136A1

BUSHING

ADAPTER straight, special, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.
