Запчасти Case 9050 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

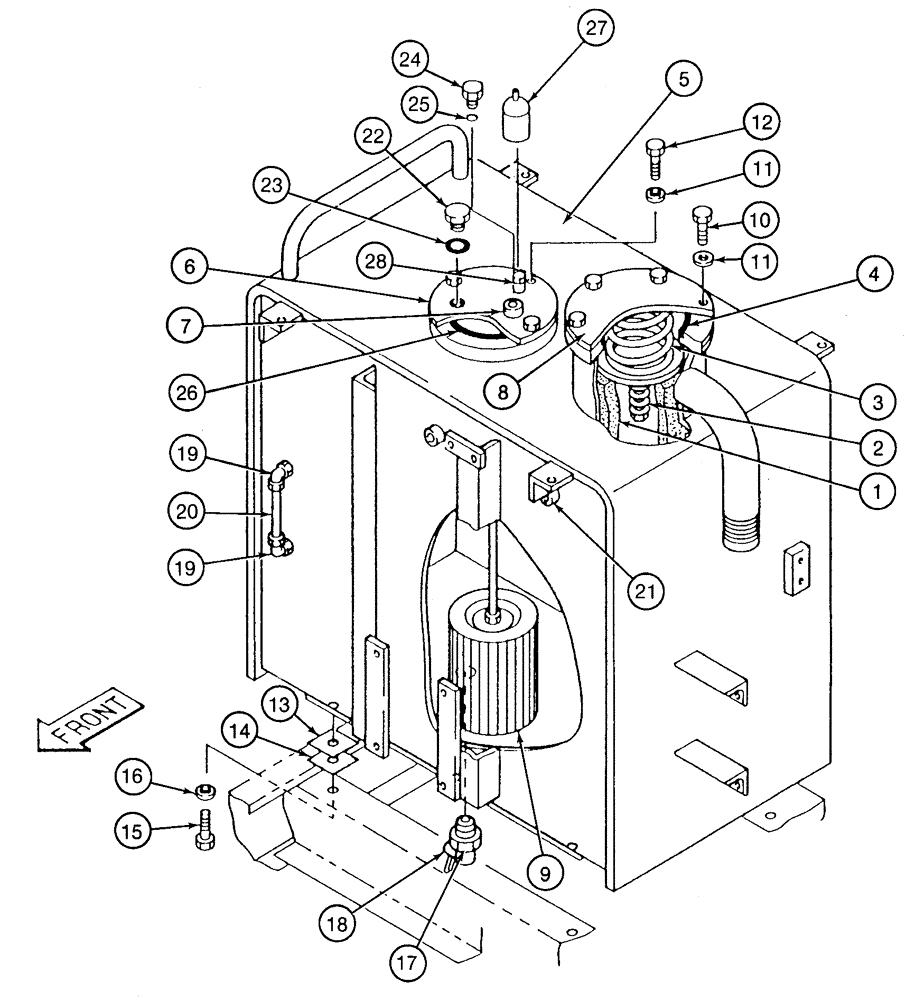

Схема запчастей Case 9050 - (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

153344A1

HYDRAULIC OIL FILTER

return hydraulic oil

1шт.

2

153037A1

VALVE

relief hydraulic reservoir

1шт.

3

153343A1

SPRING

compression

1шт.

4

150049A1

O-RING,1891.3mm ID x 5.7mm Width

return filter cover

1шт.

5

153312A1

TANK, HYDRAULIC OIL

1шт.

6

151095A1

COVER

air breather, Includes: Ref. 7

1шт.

7

152931A1

FITTING

straight cover

1шт.

8

153340A1

COVER

return filter

1шт.

9

152721A1

FUEL FILTER

hydraulic oil lower

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat 11 x 21 x 2 mm

10шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

13

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

14

150479A1

SHIM

5/64 inch (2.0 mm) thick

1шт.

15

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

16

153357A1

SPACER

tank mounting

6шт.

17

153487A1

BUSHING

reducer

1шт.

18

153371A1

COCK, DRAIN

reservoir

1шт.

19

150527A1

ELBOW

90 degree, special oil level gauge

2шт.

20

150531A1

TUBE,8 mm ID, 10 mm OD, 122 mm Length

sight gauge oil level

1шт.

21

152723A1

PRESSURE SWITCH

1шт.

22

152193A1

PLUG

port air breather cover, large port, Includes: Ref. 23

1шт.

23

152197A1

O-RING

plug

1шт.

24

152800A1

PLUG

port, Includes: Ref. 25

1шт.

25

154487A1

O-RING

plug

1шт.

26

152978A1

O-RING,164.3mm ID x 5.7mm Width

air breather cover

1шт.

27

152936A1

CAP

rubber breather

1шт.

28

152927A1

VALVE

BREATHER hydraulic reservoir

1шт.

Выбрано товаров: 28
