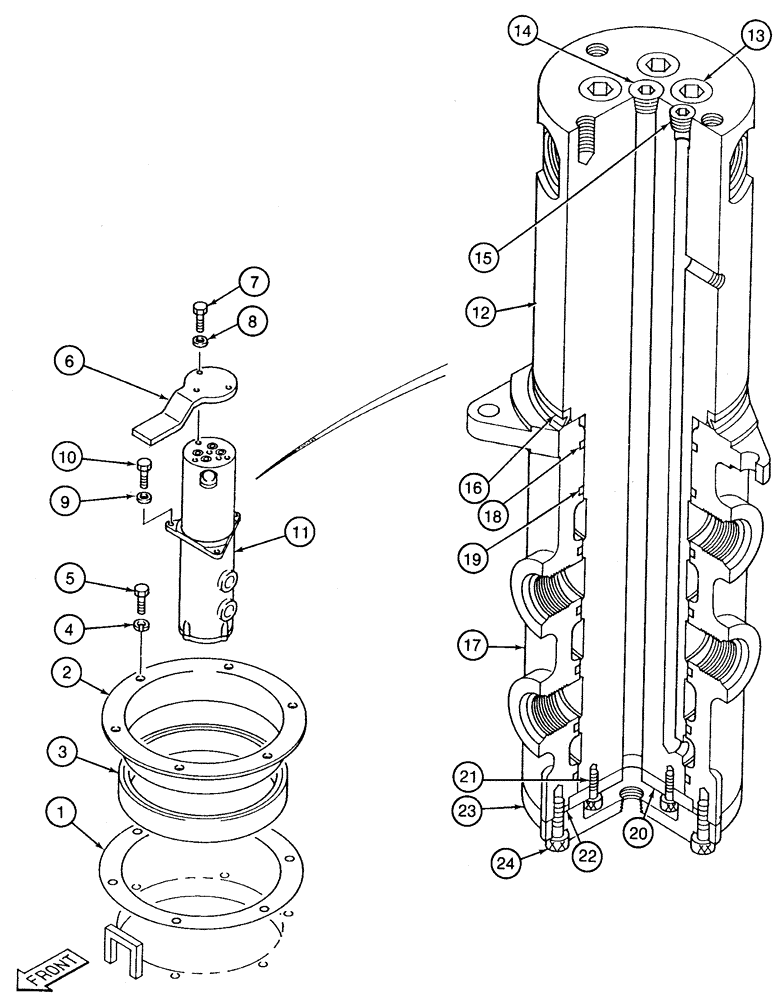

Запчасти Case 9050 (6-18) - HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152596A1

RUBBER SEAL

rubber

1шт.

2

152635A1

RETAINER

wiper

1шт.

3

151009A1

SEALING RING

1шт.

4

892-10012

LOCK WASHER,M12

6шт.

5

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

6

152092A1

BAR

anti-rotation

1шт.

7

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Hex, M16 x 40, 10.9, Full Thd

3шт.

8

150991A1

WASHER

flat, special 16 mm

3шт.

9

150988A1

WASHER

flat, special 12 mm

3шт.

10

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

3шт.

11

152096A1

HYDRAULIC SWIVEL

Includes: Ref. 12 - 24

1шт.

12

152088A1

HOUSING

swivel

1шт.

13

150829A1

PLUG

port top of swivel, large

3шт.

14

150825A1

PLUG

port top of swivel, medium

1шт.

15

150824A1

PLUG

port top of swivel, small

1шт.

16

151542A1

SEALING RING

swivel shaft

1шт.

17

151535A1

ROTOR

hydraulic swivel

1шт.

18

KHA10120

O-RING

rotor to shaft seal, Replaces 154712A1

1шт.

19

151545A1

PACKING RING

sealing, Serial Range: rotor-shaft

6шт.

20

152097A1

PLATE, THRUST

1шт.

21

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

22

154761A1

O-RING,119.4mm ID x 3.1mm Width

gland swivel base, was 150911A1

1шт.

23

151540A1

COVER

BASE swivel

1шт.

24

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.
