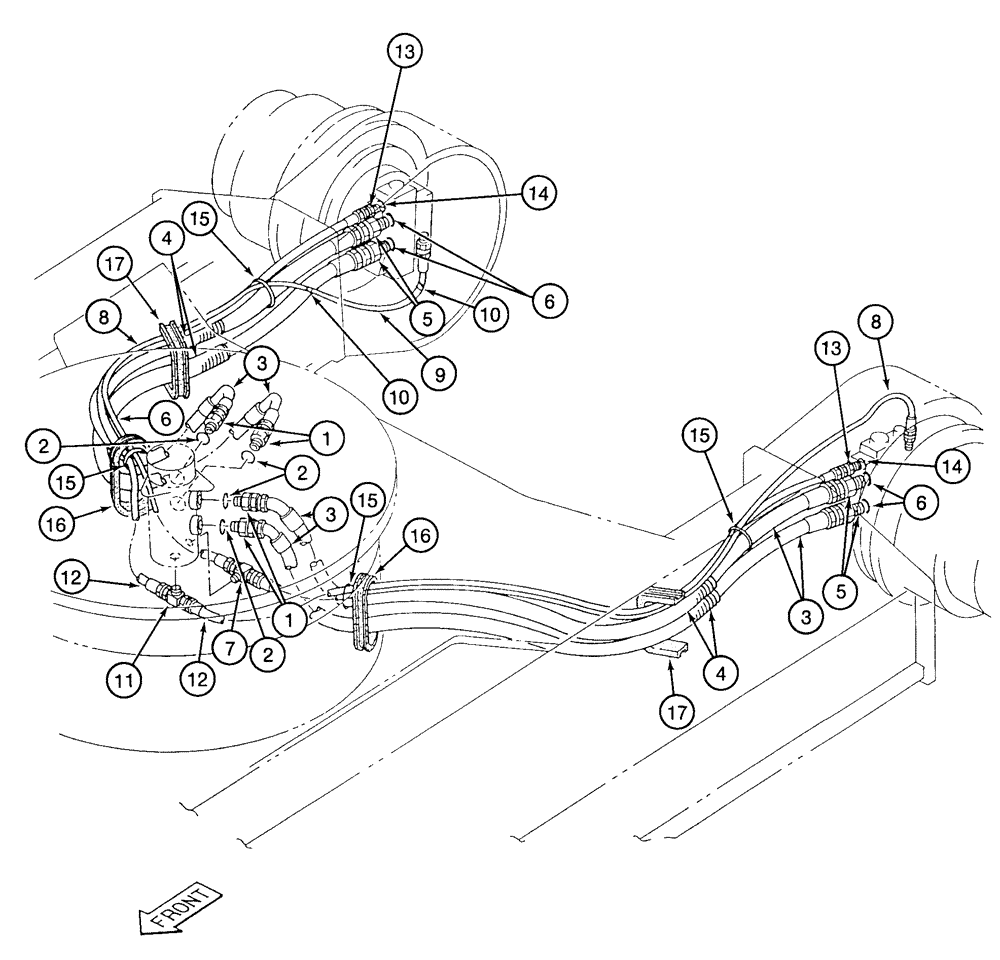

Запчасти Case 9050 (6-16) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight at swivel, Includes: Ref. 2

4шт.

2

154523A1

O-RING

, Serial Range: O-RING-swivel

1шт.

3

151914A1

HOSE ASSY.

91-3/4 inch (2330 mm) long standard model 9050, swivel to track drive motors

4шт.

3

158756A1

HYDRAULIC HOSE

99-1/4 inch (2520 mm) long 9050 Timber King, swivel to track drive motors

4шт.

4

152056A1

GUARD

hose

4шт.

5

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight to track drive motor, Includes: Ref. 6

4шт.

6

154523A1

O-RING

at track drive motor

1шт.

7

150637A1

TEE

hydraulic at lower rear side port of swivel

1шт.

8

151923A1

HOSE,2770.00 mm

Standard model 9050, Swivel to track drive motors

2шт.

8

157972A1

HOSE ASSY.

114-3/16 inch (2900 mm) long 9050 Timber King, swivel to track drive motors

2шт.

9

150394A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 500 mm Length

corrugated to right-hand track drive motor

1шт.

10

150067A1

MOUNTING CLIP

tie 150 mm long

2шт.

11

152195A1

TEE

special at swivel bottom, standard model 9050

1шт.

11

158757A1

TEE

special at swivel bottom, 9050 Timber King

1шт.

12

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

Standard model 9050, at bottom of swivel

2шт.

12

158758A1

HOSE

99-5/8 inch (2530 mm) long 9050 Timber King, at bottom of swivel

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight standard model 9050, at track drive motor, Includes: Ref. 14

2шт.

13

158759A1

HYD CONNECTOR

straight 9050 Timber King, at track drive motor, Includes: Ref. 14

2шт.

14

154487A1

O-RING

adapter

1шт.

15

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

4шт.

16

151657A1

GROMMET

GROMMET rubber

2шт.

17

150876A1

RUBBER BLOCK

grommet

2шт.
