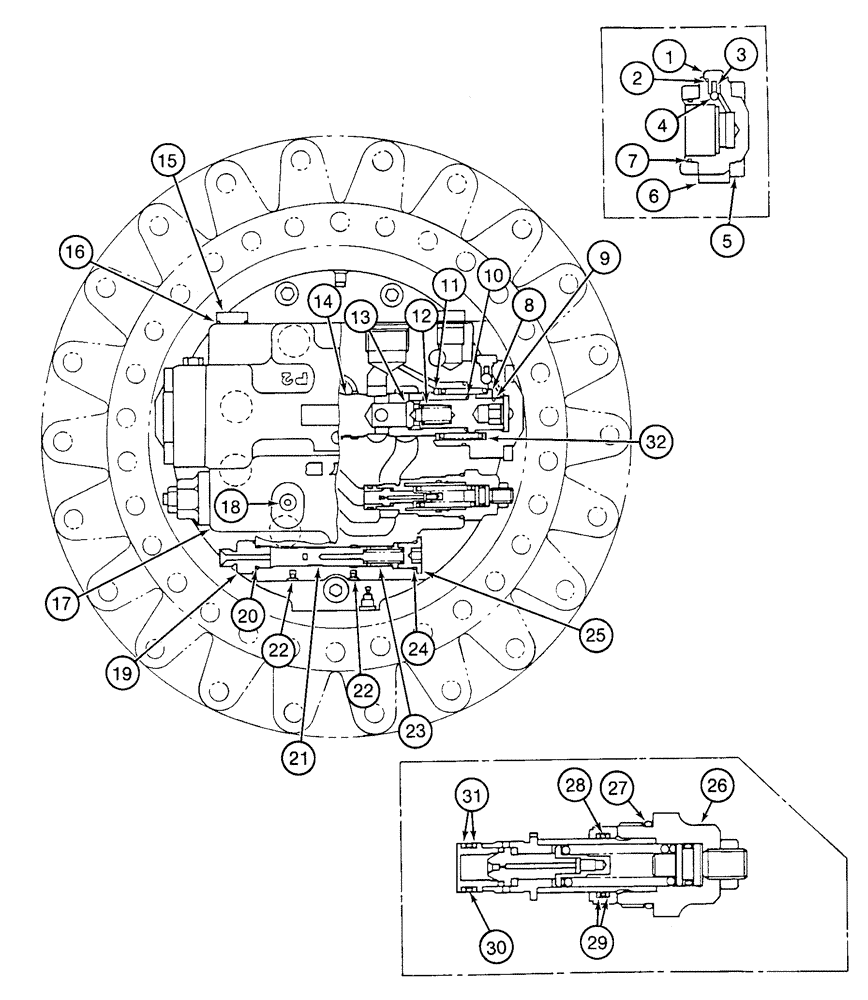

Запчасти Case 9050 (6-10) - 155807A1 TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

155807A1

MOTOR

track drive parts list Figures 6-8 & 6-10, Includes: Ref. 1 - 32

2шт.

156324A1

CAP

valve, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

PLUG valve cap

1шт.

2

154455A1

O-RING

to valve cap

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING ball return

1шт.

4

NSS

NOT SOLD SEPARAT

BALL steel, valve cap

1шт.

5

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

6

156325A1

CAP

valve

1шт.

7

154589A1

O-RING

, Serial Range: seal-cover

1шт.

8

156111A1

SPRING SEAT

2шт.

9

NSS

NOT SOLD SEPARAT

BODY check valve

2шт.

10

154495A1

O-RING

check valve body

2шт.

11

156110A1

SPRING SEAT

check valve, plunger end

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING check valve

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE check

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL check valve

1шт.

15

155483A1

PLUG

port

2шт.

16

154487A1

O-RING

plug

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE valve base

1шт.

18

151026A1

PLUG

port

2шт.

19

155484A1

PLUG

ADAPTER 2-speed control valve

1шт.

20

154475A1

O-RING

adapter

1шт.

21

155949A1

VALVE

SPOOL, 2-speed control

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG at 2-speed control valve

2шт.

23

156088A1

SPRING

valve, Includes: Ref. 26 - 31

1шт.

24

154487A1

O-RING

plug

1шт.

25

155483A1

PLUG

port

1шт.

155800A1

VALVE, PRESSURE RELI

EF

2шт.

26

NSS

NOT SOLD SEPARAT

BODY, relief valve, less seals and rings

1шт.

27

155225A1

O-RING

outer

1шт.

28

154495A1

O-RING

center

1шт.

29

153976A1

BACK-UP RING

relief valve center O-ring

2шт.

30

154478A1

O-RING

seal inner

1шт.

31

153964A1

BACK-UP RING

relief valve, inner O-ring

2шт.

32

156087A1

SPRING

valve

2шт.
