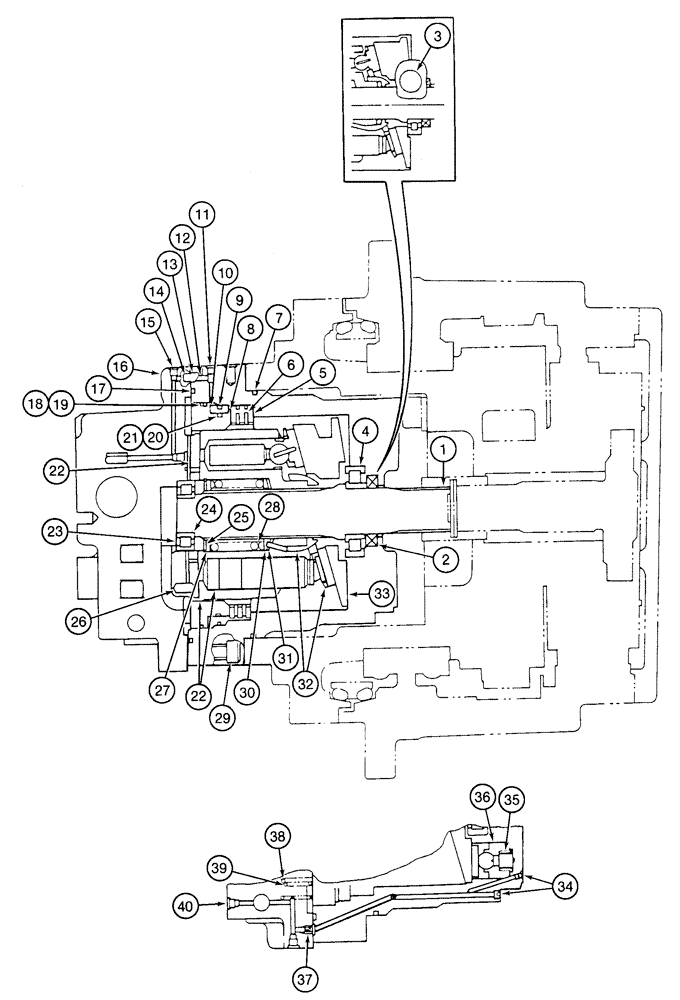

Запчасти Case 9050 (6-08) - 155807A1 TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
155807A1
MOTOR
track drive parts list Figures 6-8 & 6-10, Includes: Ref. 1 - 40
2шт.
1
155365A1
SHAFT
motor
1шт.
2
155110A1
OIL SEAL
1шт.
3
155950A1
BALL
steel
2шт.
4
156141A1
BEARING
shaft center
1шт.
5
156326A1
PLATE
separator
3шт.
6
155386A1
DISC
rotating
2шт.
7
155216A1
O-RING
, Serial Range: O-RING-transmission
1шт.
8
155951A1
PISTON
motor
1шт.
9
155213A1
O-RING
seal
1шт.
10
155645A1
COLLAR
brake piston
1шт.
11
NSS
NOT SOLD SEPARAT
PLUG port
1шт.
12
NSS
NOT SOLD SEPARAT
PLUG orifice
1шт.
13
154451A1
O-RING
plug
3шт.
14
155630A1
PIN
dowel
2шт.
15
NSS
NOT SOLD SEPARAT
PLUG port
2шт.
16
NSS
NOT SOLD SEPARAT
HOUSING motor
1шт.
17
155200A1
O-RING
end cover
1шт.
18
155214A1
O-RING
at motor housing
1шт.
19
155163A1
BACK-UP RING
brake piston, at motor housing
1шт.
20
155212A1
O-RING
seal at collar
1шт.
21
155162A1
BACK-UP RING
brake piston, at collar
1шт.
22
155793A1
CYLINDER ASSY.
BLOCK with valve plate and nine pistons
1шт.
23
155648A1
SHIM
plate 0.002 inch (0.05 mm) thick if used
3шт.
23
155649A1
SHIM
plate 0.004 inch (0.1 mm) thick if used
3шт.
23
155650A1
SHIM
plate 0.008 inch (0.2 mm) thick if used
3шт.
24
156142A1
ROLLER BEARING,30 mm ID x 62 mm OD x 16 mm
roller shaft end
1шт.
25
800-2162
SNAP RING,M62, Int
Retaining
1шт.
26
155578A1
PIN
COTTER PIN dowel
1шт.
27
156093A1
SPRING SEAT
1шт.
28
156089A1
SPRING
valve
1шт.
29
863-12050
HEX SOC SCREW,M12 x 50mm, Cl 12.9
hex socket 12 - 1.75 x 50 mm, class 12.9
14шт.
30
155644A1
COLLAR
spring
1шт.
31
155631A1
COTTER PIN
retainer
3шт.
32
155641A1
RETAINER
plate with holder
1шт.
33
156334A1
PLATE
swash
1шт.
34
NSS
NOT SOLD SEPARAT
PLUG port
4шт.
35
156091A1
SPRING
valve
2шт.
36
155792A1
PISTON
ASSEMBLY with shoe
2шт.
37
NSS
NOT SOLD SEPARAT
PLUG orifice, if used
2шт.
38
156092A1
SPRING
valve outer
4шт.
39
156090A1
SPRING
valve inner
8шт.
40
NSS
NOT SOLD SEPARAT
PLUG port
4шт.
Выбрано товаров: 43
