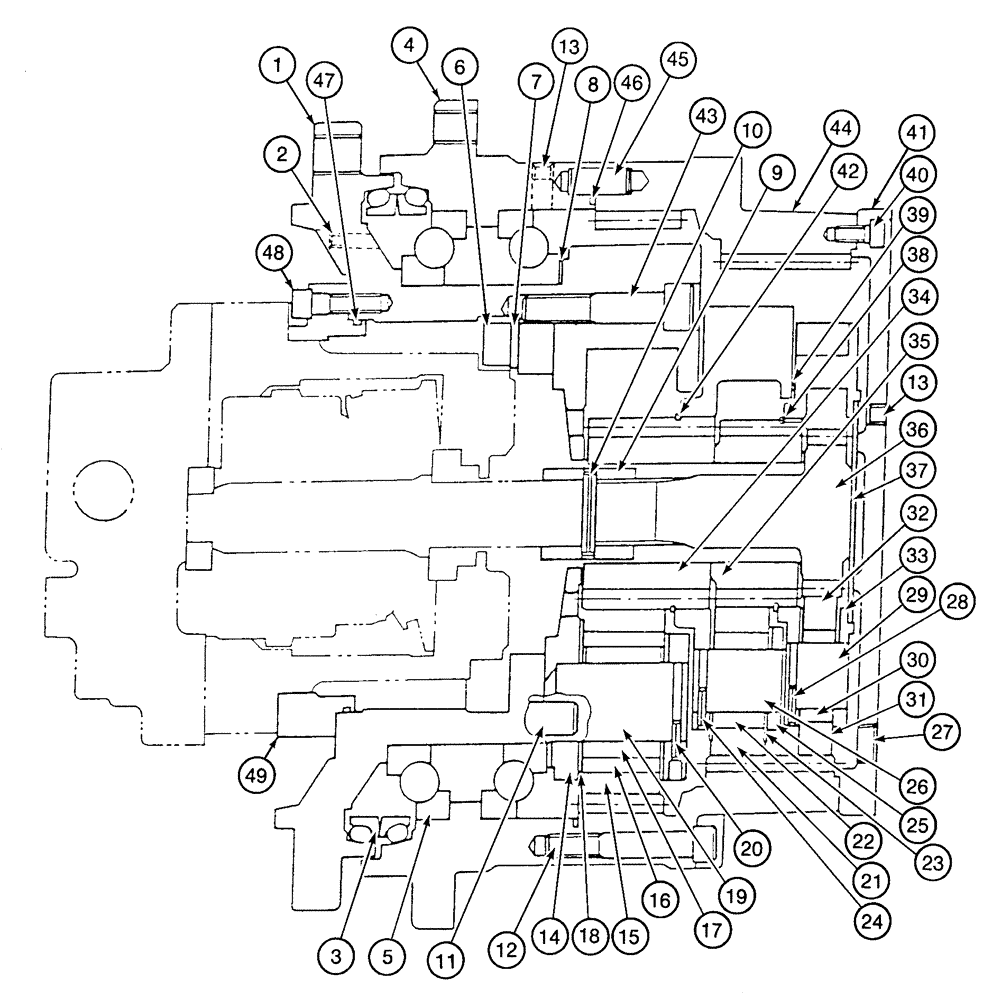

Запчасти Case 9050 (6-04) - 155799A1 FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

155799A1

MOTO-REDUCTION GEAR

TRANSMISSION ASSEMBLY final drive, without track drive motor, parts list Figures 6-4 & 6-6, Includes: Ref. 1 - 49

1шт.

1

NSS

NOT SOLD SEPARAT

FLANGE adapter, track drive motor

1шт.

2

151022A1

PLUG

hex socket, special at flange

1шт.

3

155298A1

SEAL

face includes two rings and two seals

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING transmission

1шт.

5

156120A1

BEARING, BALL,280mm ID x 370mm OD x 40mm W

2шт.

6

156208A1

BOLT (MACHINE)

hex socket, special

16шт.

7

156337A1

PLATE, SPACER

PLATE,SPACER lock

4шт.

155659A1

SHIM

KIT, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM plate, 0.002 inch (0.05 mm) thick, if used

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM plate, 0.002 inch (0.05 mm) thick, if used

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM plate, 0.002 inch (0.05 mm) thick, if used

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM plate, 0.002 inch (0.05 mm) thick, if used

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM plate, 0.002 inch (0.05 mm) thick, if used

1шт.

9

160002A1

COUPLING

was 155257A1

1шт.

10

738-1650

LOCK PIN,M6 x 50, Slotted

roll 6 x 50 mm

1шт.

11

155658A1

COTTER PIN

special

4шт.

12

156200A1

BOLT,M14 x 95mm

hex socket 14 - 2.0 x 95 mm

24шт.

13

151026A1

PLUG

port

2шт.

155802A1

GEAR WHEEL

CARRIER ASSEMBLY planetary gear, Includes: Ref. 14 - 20

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER planetary gear, third stage

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR planetary, third stage

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING planetary gear, third stage

4шт.

17

NSS

NOT SOLD SEPARAT

ROLLER planetary gear, third stage

72шт.

18

NSS

NOT SOLD SEPARAT

WASHER thrust

8шт.

19

NSS

NOT SOLD SEPARAT

SHAFT planetary gear

4шт.

20

738-1525

LOCK PIN,M5 x 25, Slotted

roll 5 x 25 mm

4шт.

155801A1

GEAR WHEEL

CARRIER ASSEMBLY planetary gear, Includes: Ref. 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

GEAR planetary, second stage

3шт.

22

NSS

NOT SOLD SEPARAT

ROLLER planetary gear, second stage

45шт.

23

NSS

NOT SOLD SEPARAT

WASHER thrust

6шт.

24

738-1525

LOCK PIN,M5 x 25, Slotted

roll 5 x 25 mm

3шт.

25

NSS

NOT SOLD SEPARAT

CARRIER planetary gear, second stage

1шт.

26

NSS

NOT SOLD SEPARAT

SHAFT planetary gear

3шт.

27

155486A1

PLUG

end cover

2шт.

155806A1

GEAR WHEEL

CARRIER ASSEMBLY planetary gear, Includes: Ref. 28 - 33

1шт.

28

738-1525

LOCK PIN,M5 x 25, Slotted

roll 5 x 25 mm

3шт.

29

NSS

NOT SOLD SEPARAT

SHAFT planetary gear

3шт.

30

NSS

NOT SOLD SEPARAT

BEARING needle

3шт.

31

NSS

NOT SOLD SEPARAT

WASHER thrust

6шт.

32

NSS

NOT SOLD SEPARAT

GEAR planetary, first stage

3шт.

33

NSS

NOT SOLD SEPARAT

CARRIER planetary gear, first stage

1шт.

34

155279A1

SUN GEAR

second stage

1шт.

35

155278A1

SUN GEAR

third stage

1шт.

36

155277A1

PINION

drive first stage

1шт.

37

155392A1

KIT

PLATE thrust

1шт.

38

155657A1

RING, SNAP

RING SNAP

1шт.

39

155391A1

PLATE, THRUST

1шт.

40

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

hex socket 10 - 1.5 x 20 mm, class 12.9

16шт.

41

156335A1

COVER

end

1шт.

42

155643A1

RING, SNAP

RING SNAP

1шт.

43

156194A1

BOLT,Hex Skt, M18 x 2.5 x 90mm

hex socket 18 - 2.5 x 90 mm special

4шт.

44

155280A1

PINION

ring

1шт.

45

155647A1

COTTER PIN

dowel

3шт.

46

155181A1

O-RING

special

1шт.

47

155182A1

O-RING

cover

1шт.

48

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

3шт.

49

156336A1

COVER

, Serial Range: transmission-motor

1шт.
