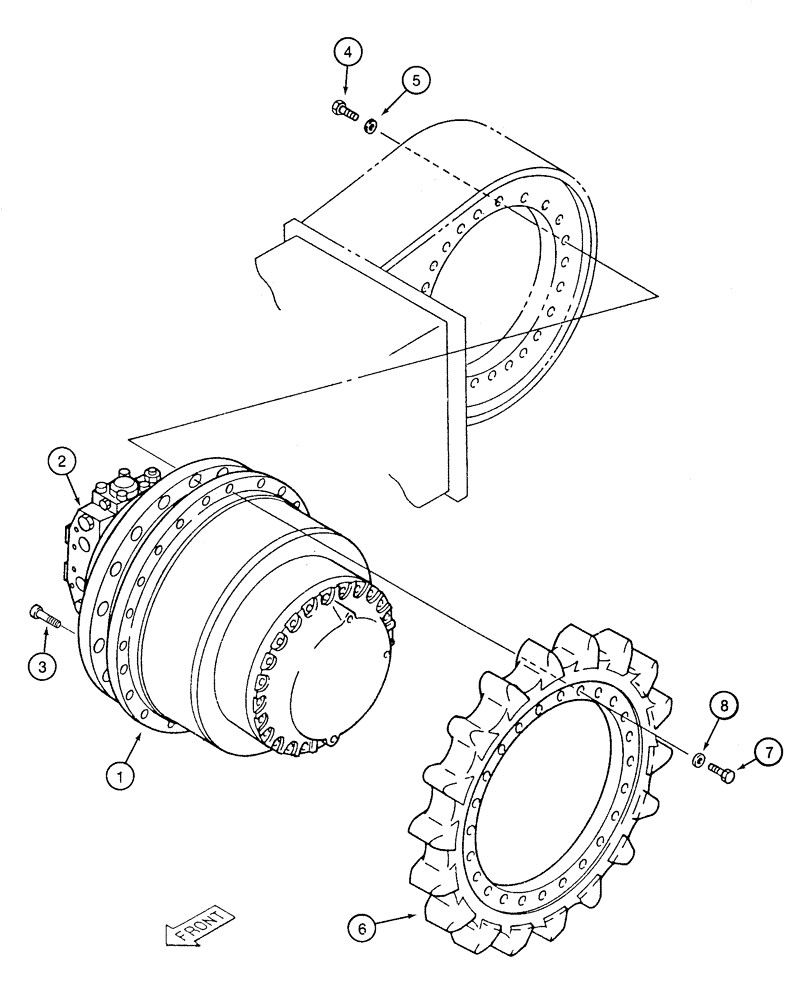

Запчасти Case 9050 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

151754A1

MOTOR

TRANSMISSION with track drive motor, parts list Figures 6-4 - 6-10, Includes: Ref. 1 - 3

2шт.

1

155799A1

MOTO-REDUCTION GEAR

TRANSMISSION without track drive motor, parts list Figure 6-4 & 6-6

1шт.

2

155807A1

MOTOR

ASSEMBLY track drive parts list Figures 6-8 & 6-10

1шт.

3

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

hex socket 12 - 1.75 x 80 mm, class 12.9

3шт.

4

626-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

hex, full threads 24 - 3.0 x 70 mm, class 10.9

36шт.

5

151003A1

WASHER

flat, special

36шт.

6

151758A1

SPROCKET ASSY.

track drive

2шт.

7

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

hex 20 - 2.5 x 65 mm, class 10.9

48шт.

8

150996A1

WASHER

special

48шт.
