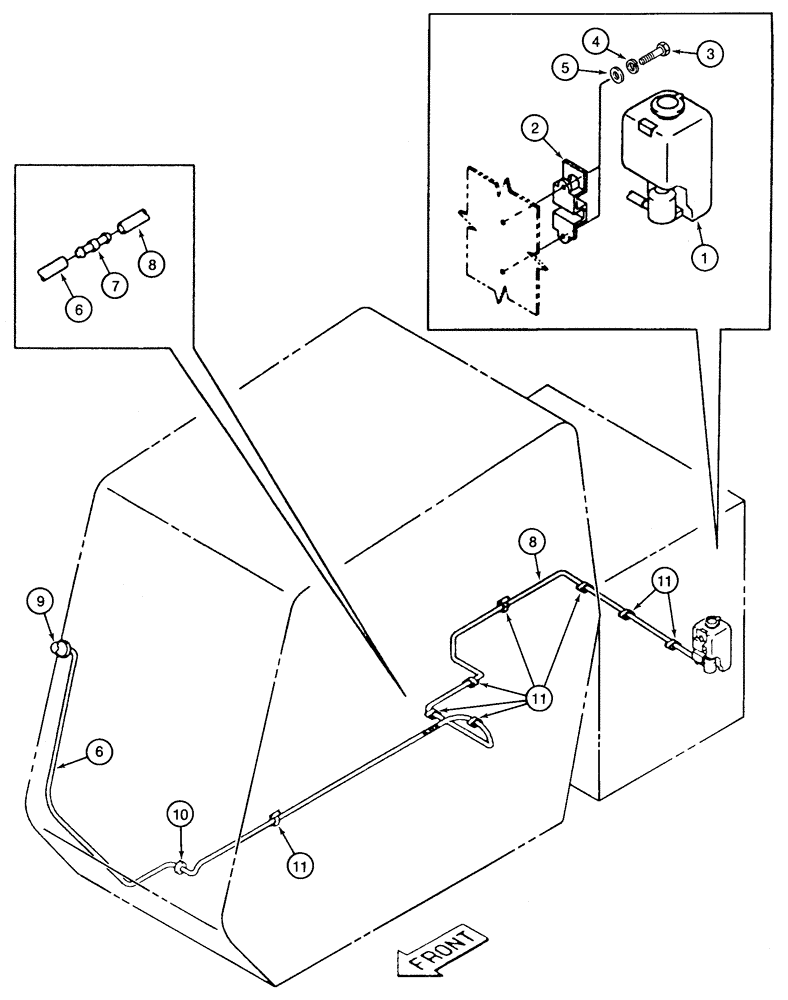

Запчасти Case 9050 (4-24) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

150610A1

RESERVOIR

windshield washer fluid

1шт.

2

151377A1

HANGER

reservoir

1шт.

3

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

4

892-11006

LOCK WASHER,M6

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

152827A1

LARGE HOSE,4 mm ID, 7 mm OD, 2500 mm Length

HOSE,LARGE at nozzle

1шт.

7

152824A1

ADAPTER

special

1шт.

8

152829A1

HOSE,4 mm ID, 7 mm OD, 3500 mm Length

vinyl 137-3/4 inch (3500 mm) long at reservoir

1шт.

9

152688A1

NOZZLE INJECTION

windshield washer

1шт.

10

152841A1

GROMMET

rubber

1шт.

11

150712A1

CLIP

tube support

1шт.
