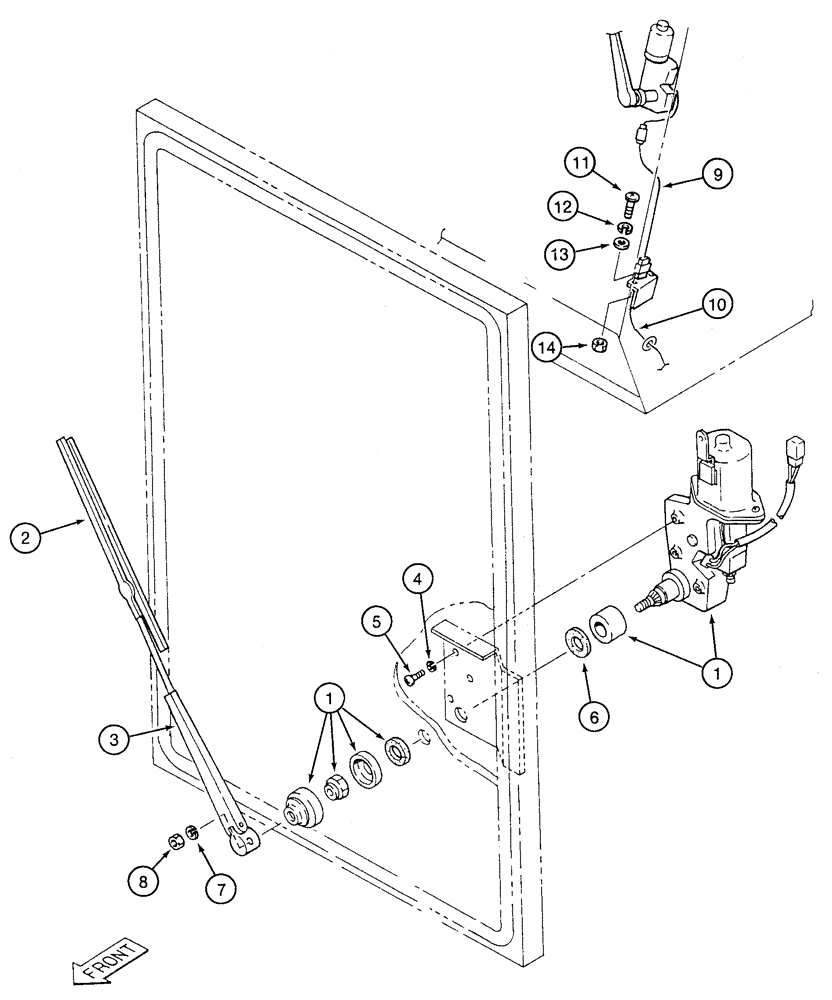

Запчасти Case 9050 (4-22) - WINDSHIELD WIPER (04) - ELECTRICAL SYSTEMS

1

150849A1

WIPER MOTOR

MOTOR, WIPER windshield, includes arm adapter parts

1шт.

150967A1

WINDSHIELD WIPER

Includes: Ref. 2 & 3

1шт.

2

150851A1

WIPER BLADE

BLADE, WIPER

1шт.

3

150853A1

WIPER ARM

ARM, WIPER

1шт.

4

892-11006

LOCK WASHER,M6

3шт.

5

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

3шт.

6

150944A1

PACKING

SEAL rubber washer

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

151316A1

HARNESS

wiper 230 mm long upper

1шт.

10

151314A1

HARNESS

wiper 700 mm long lower

1шт.

11

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

2шт.

12

892-11003

LOCK WASHER,M3

lock 3 mm

2шт.

13

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Flat, (3.2 x 7 x 0.5 mm)

2шт.

14

824-1403

NUT,M3, Cl 5

2шт.
